  3. Pantalla LCD TFT cuadrada de 4 pulgadas - 720*720 de alta resolución, interfaz MIPI, panel táctil LCD

模型：

Pantalla LCD TFT cuadrada de 4 pulgadas - 720*720 de alta resolución, interfaz MIPI, panel táctil LCD

  • Tamaño: módulo lcd cuadrado de 4 pulgadas
  • Con tacto Con tacto
  • Resolución: 720*720
  • Interfaz táctil: I2C
  • Interfaz de pantalla: MIPI
  • Controlador de pantalla IC: AXS1832
  • IC táctil: FT6336U(monotáctil) , AXS9621(multitáctil), HY4621(multitáctil)

Pregunte a nuestro equipo:

Descripción

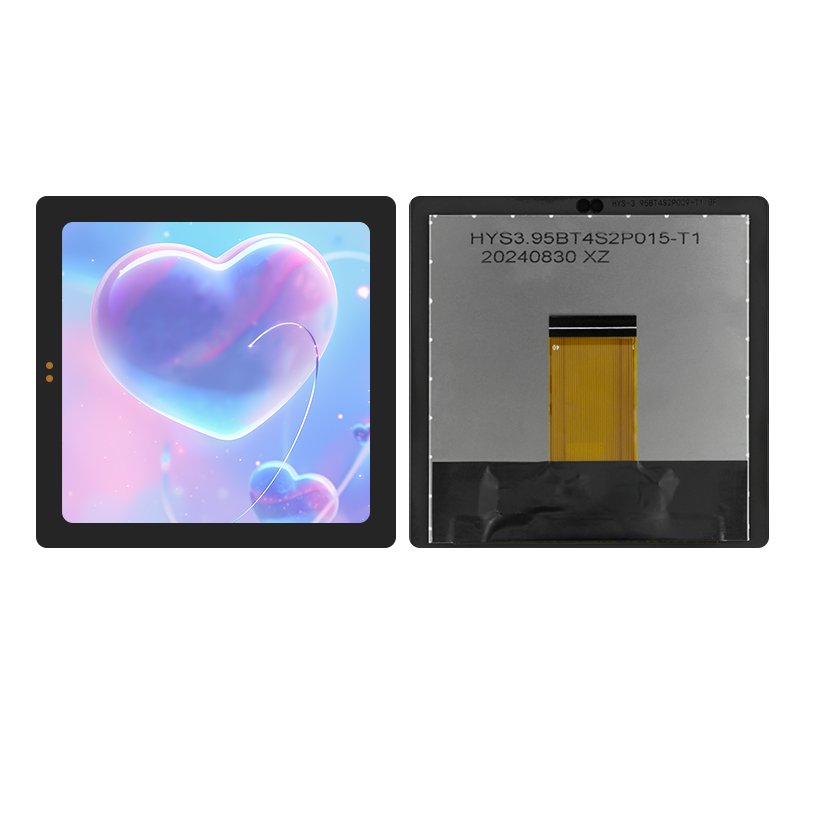

This 3.95-inch TFT LCD module features a resolution of 480(RGB) x 480 pixels and supports 16.7 million colors, delivering vibrant and clear visuals. With a compact design (74.66(W) × 76.54(L) × 2.09(H) mm), it includes a capacitive touch panel (84(W) × 84(L) × 3.97(H) mm) for enhanced interactivity. The module offers a wide viewing angle (all O’Clock) and uses an LED backlight with 250 cd/m² luminance, ensuring good visibility.

Powered by the ST7701 driver IC and NT8052C touch IC, it supports RGB and SPI interfaces for flexible integration. With an operating temperature range of -20°C to +70°C, this module is ideal for automotive, industrial, and consumer applications, providing reliable performance in various environments.

ArtículoContenidoUnidadRemarks
Tipo LCDTFT–3.95-inch TFT
Dirección de visualización recomendadaALL O'Clock––
Module Area74,66(ANCHO) × 76,54(LARGO) × 2,09(ALTO)mm–
Module + CTP Area84(ANCHO) × 84(LARGO) × 3,97(ALTO)mm–
Área activa71,86(ANCHO) × 70,18(LARGO)mm–
Número de puntos480(RGB) × 480Puntos–
Paso de píxeles0.1462 × 0.1462mm–
Conductor ICST7701––
IC táctilNT8052C––
Tipo de interfazRGB + SPI Interface––
Colores16.7M––
Tipo de retroiluminaciónLED––

APPLICATION OF 4 INCH 720*720 TFT LCD MODULE

Industrial Control Systems: The 4 inch touchscreen can be used in industrial control systems where a compact and durable display is required. It can be utilized in control panels or HMI (Human-Machine Interface) devices to monitor and control various industrial processes.

Portable Gaming Devices: The square LCD panel touchscreen can be employed in handheld gaming consoles or portable gaming devices. It can provide an interactive display for gaming controls, menus, and gameplay visuals.

Point-of-Sale (POS) Systems: The 4 inch LCD touchscreen can be used in compact point-of-sale systems for retail or hospitality industries. It can serve as an interactive interface for customers and cashiers to input information, select items, and complete transactions.

Productos sanitarios: The 4 inch TFT display can find applications in medical devices, such as portable diagnostic devices or patient monitoring systems. It can provide a visual interface for displaying vital signs, medical data, or test results.

IoT (Internet of Things) Devices: The Square TFT touchscreen can be integrated into various IoT devices where a compact and interactive display is needed. For example, it can be used in smart home control panels, home automation systems, or IoT-enabled appliances.

Handheld Measurement Instruments: The 4inch Touch display can be utilized in handheld measurement instruments like multimeters, oscilloscopes, or thermal cameras. It can provide a visual interface to display measurement readings, waveforms, or thermal images.

Personal Digital Assistants: The compact size and touch functionality make the display suitable for personal digital assistants (PDAs) or handheld organizers. It can provide a visual interface for managing schedules, contacts, notes, and other personal information.

Información adicional

Tamaño (pulgadas)

4.0

Brillo (cd/m²)

300

Resolución

720×720

Interfaz

MIPI

模型：

Pantalla LCD TFT cuadrada de 4 pulgadas - 720*720 de alta resolución, interfaz MIPI, panel táctil LCD

  • Tamaño: módulo lcd cuadrado de 4 pulgadas
  • Con tacto Con tacto
  • Resolución: 720*720
  • Interfaz táctil: I2C
  • Interfaz de pantalla: MIPI
  • Controlador de pantalla IC: AXS1832
  • IC táctil: FT6336U(monotáctil) , AXS9621(multitáctil), HY4621(multitáctil)

Pregunte a nuestro equipo:

Descripción

This 3.95-inch TFT LCD module features a resolution of 480(RGB) x 480 pixels and supports 16.7 million colors, delivering vibrant and clear visuals. With a compact design (74.66(W) × 76.54(L) × 2.09(H) mm), it includes a capacitive touch panel (84(W) × 84(L) × 3.97(H) mm) for enhanced interactivity. The module offers a wide viewing angle (all O’Clock) and uses an LED backlight with 250 cd/m² luminance, ensuring good visibility.

Powered by the ST7701 driver IC and NT8052C touch IC, it supports RGB and SPI interfaces for flexible integration. With an operating temperature range of -20°C to +70°C, this module is ideal for automotive, industrial, and consumer applications, providing reliable performance in various environments.

ArtículoContenidoUnidadRemarks
Tipo LCDTFT–3.95-inch TFT
Dirección de visualización recomendadaALL O'Clock––
Module Area74,66(ANCHO) × 76,54(LARGO) × 2,09(ALTO)mm–
Module + CTP Area84(ANCHO) × 84(LARGO) × 3,97(ALTO)mm–
Área activa71,86(ANCHO) × 70,18(LARGO)mm–
Número de puntos480(RGB) × 480Puntos–
Paso de píxeles0.1462 × 0.1462mm–
Conductor ICST7701––
IC táctilNT8052C––
Tipo de interfazRGB + SPI Interface––
Colores16.7M––
Tipo de retroiluminaciónLED––

APPLICATION OF 4 INCH 720*720 TFT LCD MODULE

Industrial Control Systems: The 4 inch touchscreen can be used in industrial control systems where a compact and durable display is required. It can be utilized in control panels or HMI (Human-Machine Interface) devices to monitor and control various industrial processes.

Portable Gaming Devices: The square LCD panel touchscreen can be employed in handheld gaming consoles or portable gaming devices. It can provide an interactive display for gaming controls, menus, and gameplay visuals.

Point-of-Sale (POS) Systems: The 4 inch LCD touchscreen can be used in compact point-of-sale systems for retail or hospitality industries. It can serve as an interactive interface for customers and cashiers to input information, select items, and complete transactions.

Productos sanitarios: The 4 inch TFT display can find applications in medical devices, such as portable diagnostic devices or patient monitoring systems. It can provide a visual interface for displaying vital signs, medical data, or test results.

IoT (Internet of Things) Devices: The Square TFT touchscreen can be integrated into various IoT devices where a compact and interactive display is needed. For example, it can be used in smart home control panels, home automation systems, or IoT-enabled appliances.

Handheld Measurement Instruments: The 4inch Touch display can be utilized in handheld measurement instruments like multimeters, oscilloscopes, or thermal cameras. It can provide a visual interface to display measurement readings, waveforms, or thermal images.

Personal Digital Assistants: The compact size and touch functionality make the display suitable for personal digital assistants (PDAs) or handheld organizers. It can provide a visual interface for managing schedules, contacts, notes, and other personal information.

Información adicional

Tamaño (pulgadas)

4.0

Brillo (cd/m²)

300

Resolución

720×720

Interfaz

MIPI
