1.3 inch Square TFT LCD Display – Capacitive Touch Screen, MIPI Interface
- Size: 1.3 inch TFT Touch Panel
- Resolution: 240*240
- Interface: MIPI
- Luminance: 300nit
- IC Driver: ST7785M
- LCD Type: AM TFT ,TRANSMISSIVE, NEGATIVE

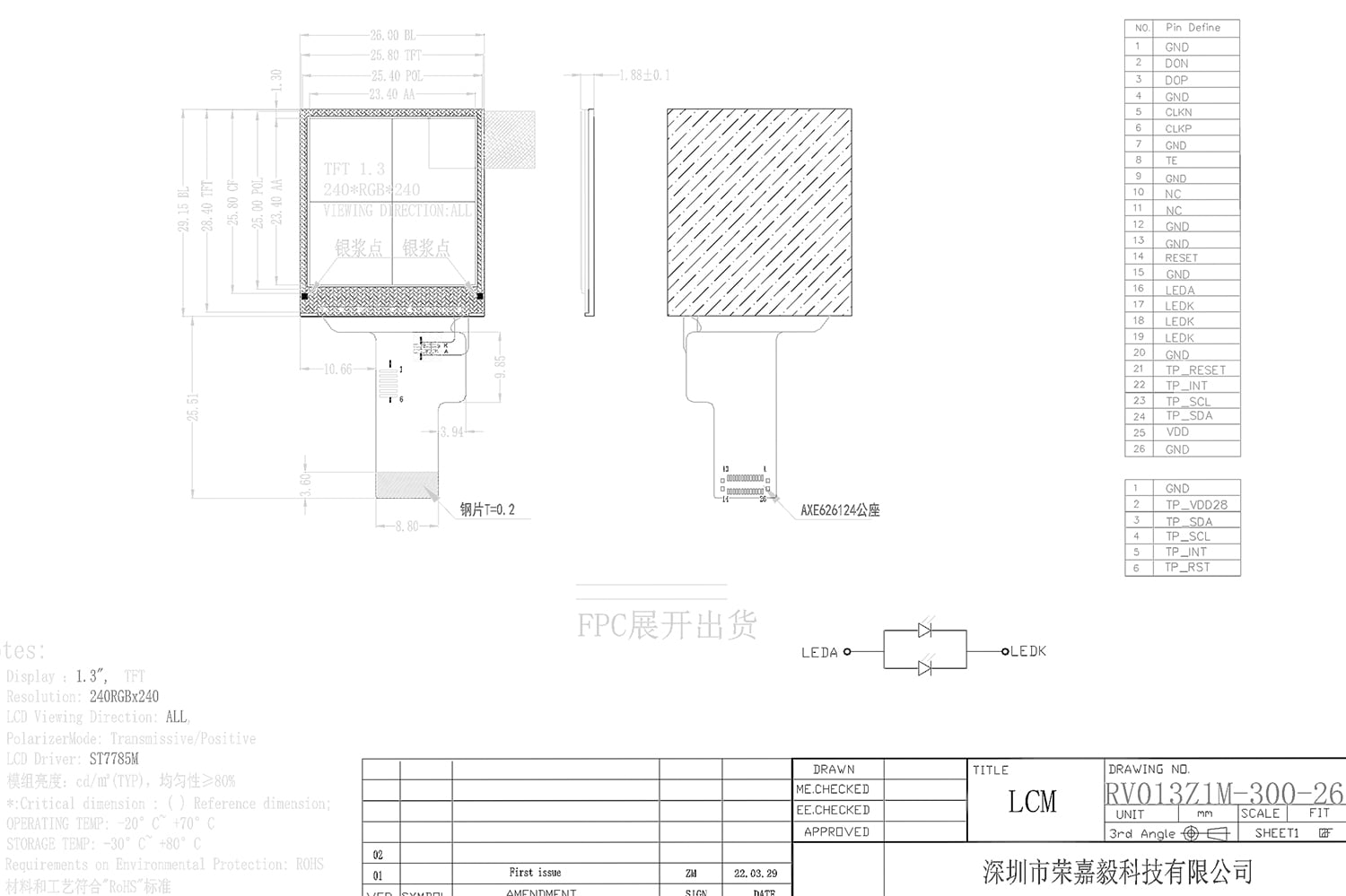

RV013Z1P-300-26 is a small size square 1.3 inch LCD display panel, the interface and brightness acceptable for customized, It is a transmissive type display operating in the normal white. This TFT-LCD has a 1.3 inch diagonally measured active area with QVGA resolutions (240 horizontal by 240 vertical pixel array).
How can we do for LCD panel customized?
Custom LCD module size, include
- Different size of lcd module and lcd module frame
- View angle: IPS/TN
- LCD module brightness
- Capacitive touch screen panel or no touch
Custom PFC & Backlight
- Frame materials: metal, plastic
- FPC shape
- Interface: MIPI, LVDS, MCU, RGB, EDP, and so on
- Pins
Custom CTP
- Single touch, multi-touch
- In-cell, on-cell
- G+G, G+F, +G+FF, GGG
| Model | RV013Z1P-300-26 |
| Size | 1.3 inch TFT LCD touch screen panel |
| LCD Type | AM TFT ,TRANSMISSIVE, NEGATIVE |
| Display Format | 240(R,G,B)*240 |
| Input Data | MIPI |
| View Angle | ALL O”clock |
| IC Driver | ST7785M |
| Display Colors | 16.7 M |
| Module Size | 26(W)×29.15(L)×1.88(T) |
| CPT Size | 36(W)×36(L)×3.01(T) |
| Active Area | 23.4(W) ×23.4(L) |
| Pixel Size | 0.0975×0.0975 |
| Operating Temperature | -20 to +70 ℃ |
| Storage Temperature | -30 to +80 ℃ |
| LCM Luminance | 300 cd/m² |
| Size(inch) | 1.3 |
|---|---|
| Brightness (cd/m²) | 300 |
| Interface | MIPI |
| Resolution | 240×240 |
| Wide Temperature | No |
| Viewing Angle | All |
