Standard Displays

10.1 inch TFT LCD Touch Display – 1024*600 Resolution, Capacitive Touchscreen

Display and controller solution support for engineering-driven projects.

Model: RV101WSP-200-50
Size: 10.1 inch LCD Touch Screen
Resolution: 1024*600
Interface: RGB
Surface treatment: Hard-Coating with EWV film
Storage Temperature: -30-70 ℃

Resolution 1024×600

Brightness (cd/m²) 200

Wide Temperature No

Request Compatibility Review View Technical Details

For faster evaluation, please share your target application, display size, resolution, interface, touch requirement, controller board requirement, and annual demand.

SKU: RV101WXP-200-50 Category: Standard Displays

10.1 inch TFT LCD Touch Display - 1024*600 Resolution, Capacitive Touchscreen

Engineering Review

Confirm Product Fit Before Sampling

Display and controller board projects usually require more than a model number. RJY can review your technical requirements before sample or quotation discussion.

Specification Matching

Check display size, resolution, brightness, viewing angle, touch requirement, and operating environment.

Interface & Board Review

Review interface type, pin definition, controller board requirement, driver IC, and system compatibility.

Customization Direction

Discuss cover glass, backlight, touchscreen, FPC, firmware, and mechanical coordination when needed.

RFQ Preparation

Prepare application details, sample quantity, annual demand, target timeline, datasheet, or reference product.

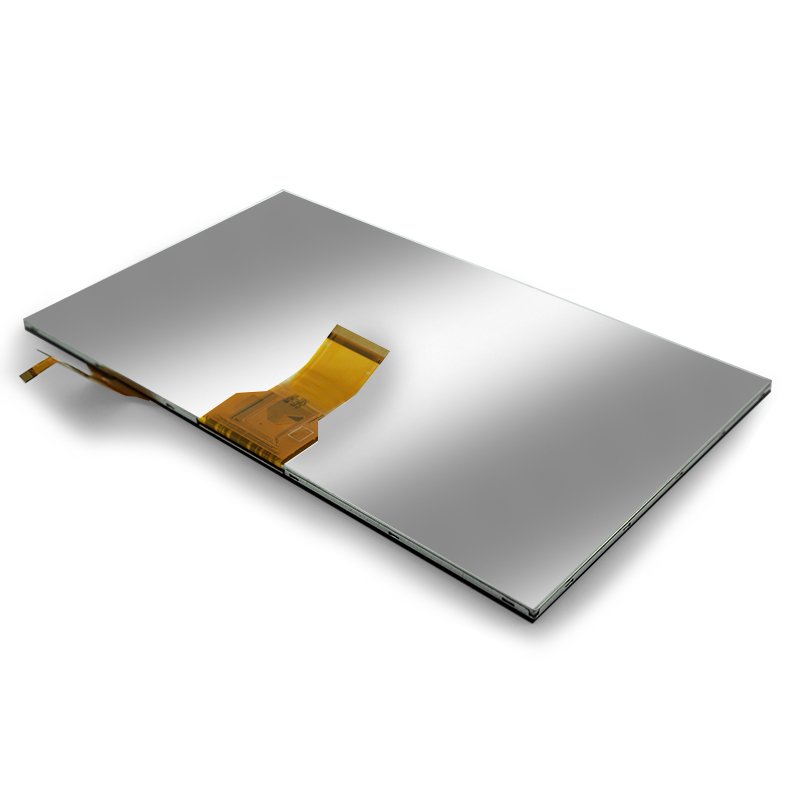

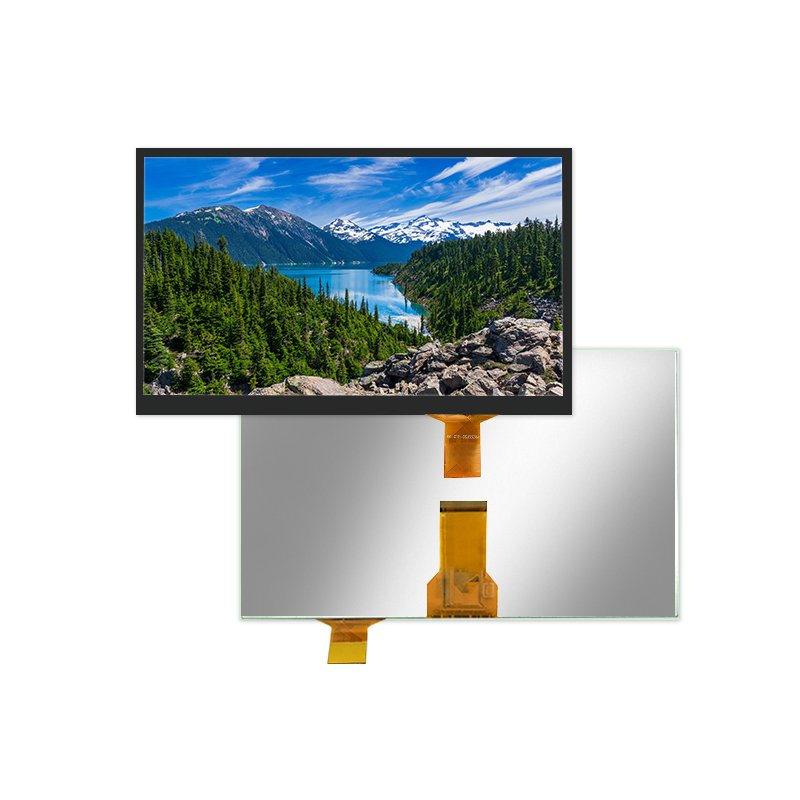

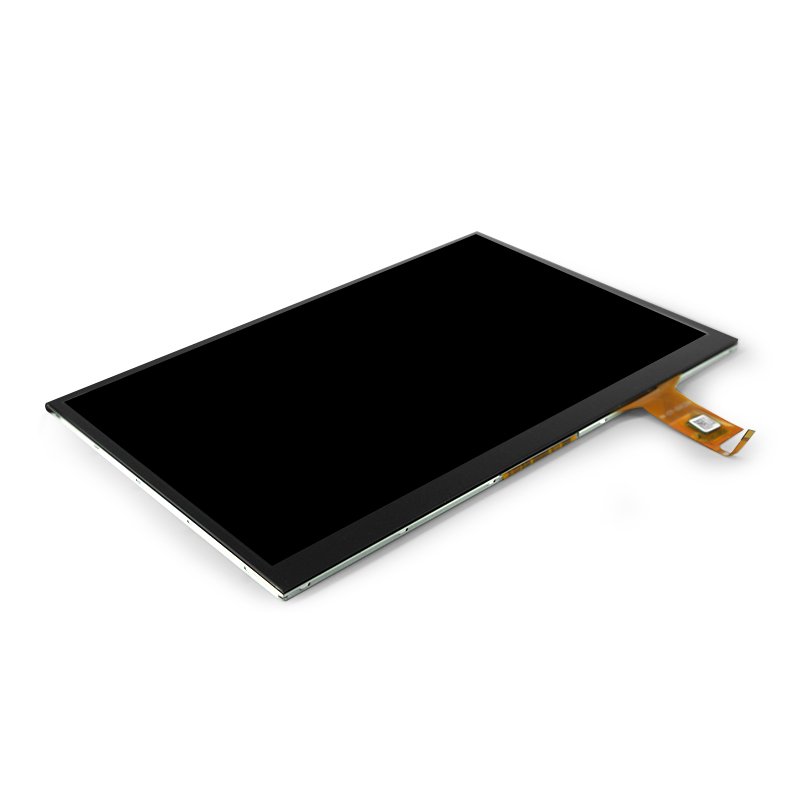

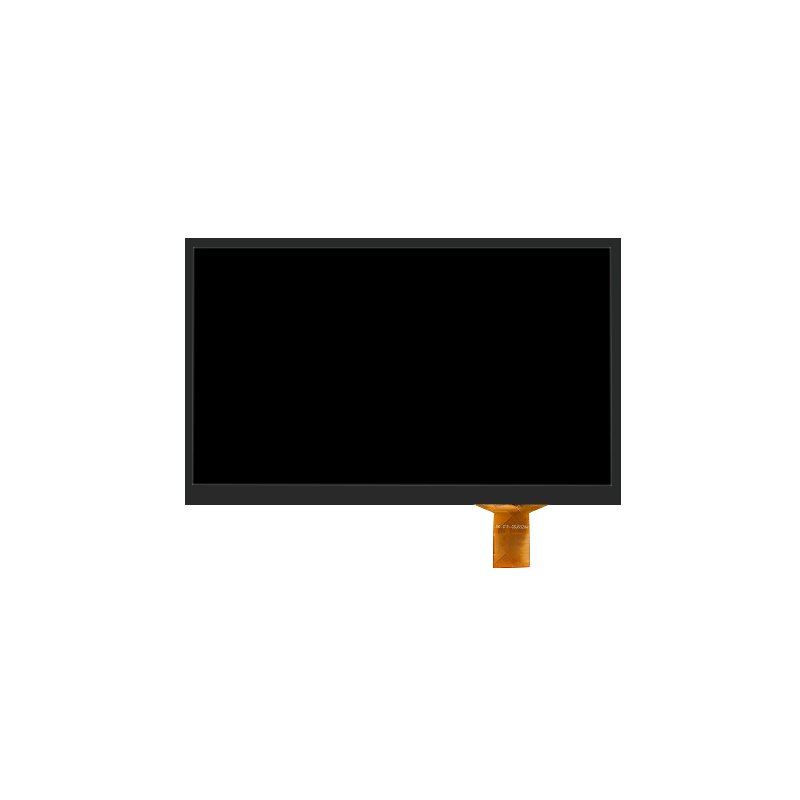

The display model RV101WXP-200-50 is a ALL VIEW TFT-LCD (Thin Film Transistor Liquid Crystal Display) module. This model is Composed of a TFT LCD panel , a driving circuit and a back light, and also has a 10.1 inch diagonally measured active display area with HD(1024 horizontal by 600 vertical pixel) resolution in a stripe arrangement. Display 16M colors by 8 bit R.G.B signal input.

This 10.1 inch TFT LCD touch screen with 200nit brightness and 50pin. If you need to custom different brightness and pin, interface, or any control board such as HDMI board, we will provide that, we are a company that do wholesale and all products are wholesale price but small MOQ you could get it. Any problem welcome to discuss with us!

Resolution	1024×600
Brightness (cd/m²)	200
Wide Temperature	No

FAQ

Is RJY an Original Equipment Manufacturer (OEM)?

Yes. RJY is a direct provider and manufacturer with vertically integrated capabilities, offering full-cycle hardware innovation from design and PCBA assembly to final system integration.

What types of customization does RJY accept?

We can provide customization in the following four distinct areas: Systems & HMI、Display Modules、Software Services、Industrial Design.

What is the stock status for this product?

Most products on display have at least one unit in stock for testing or quick sampling. For sample requests over 20 units, please check with us in advance to ensure the current stock status.

How are the fees structured for custom projects?

Our custom project fees typically consist of two main components:
NRE (Non-Recurring Engineering) fees and unit pricing.
In many cases, if your order reaches a certain volume, we offer to offset or credit a portion of the NRE fees back to you.

How long does a typical customization project take?

The timeline depends on the depth of customization:
Software/Firmware Tweaks: 1-2 weeks
Minor Hardware Modifications: 4-6 weeks
Full-Cycle R&D Projects: 12-16 weeks
