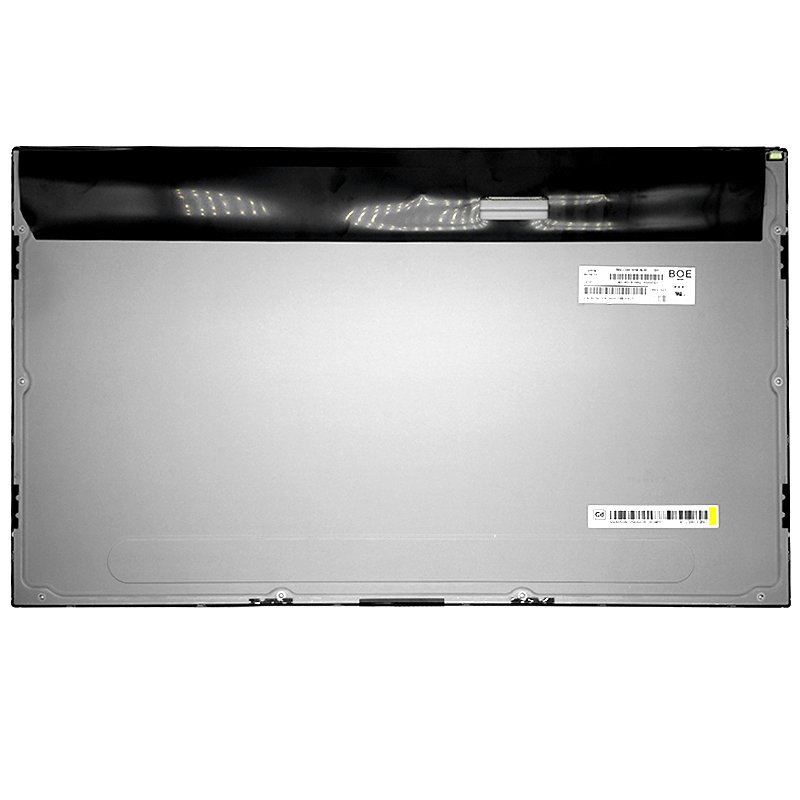

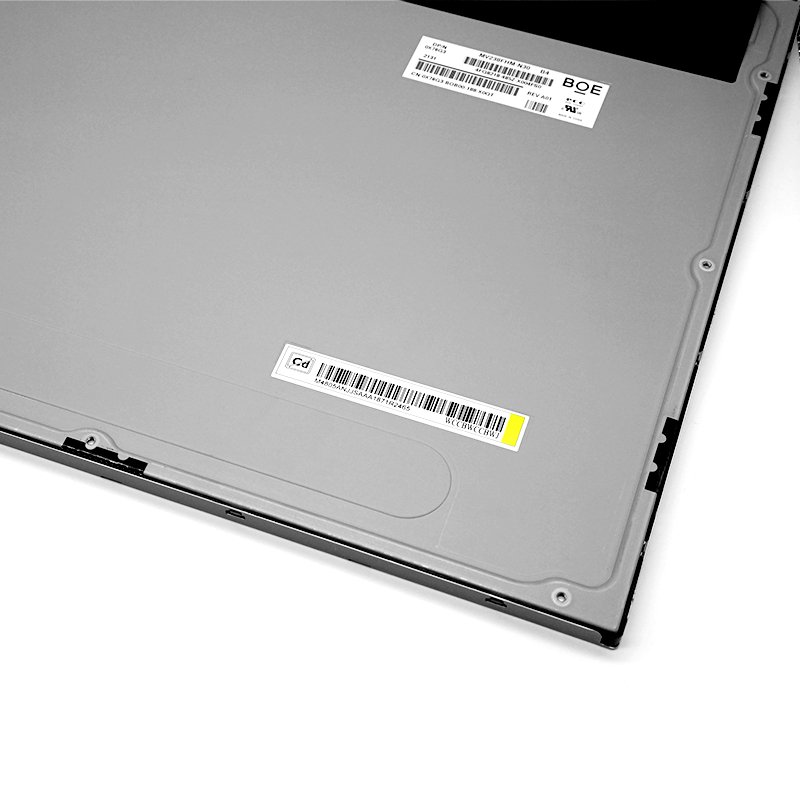

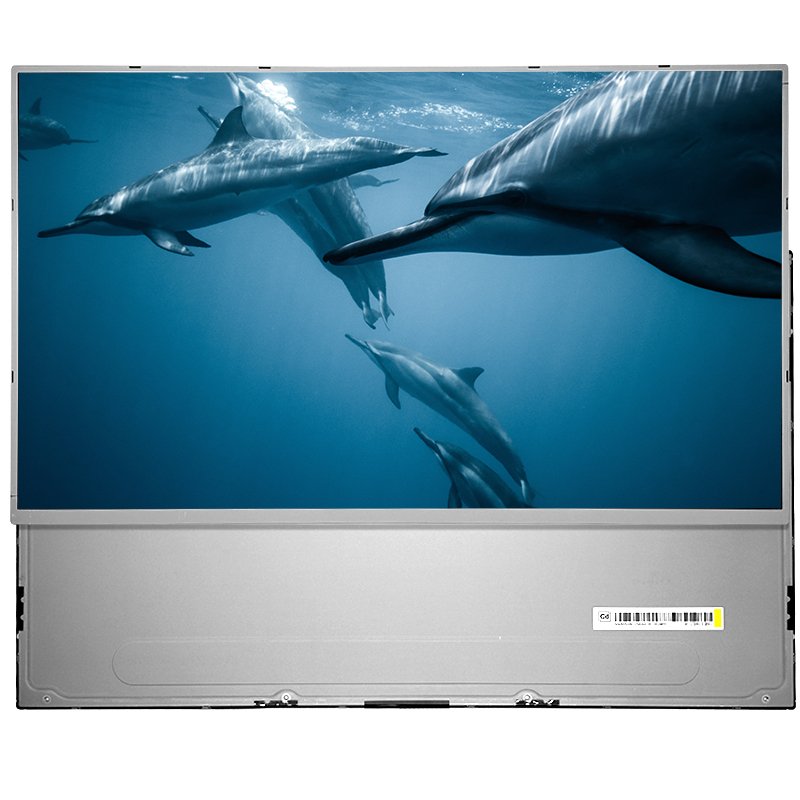

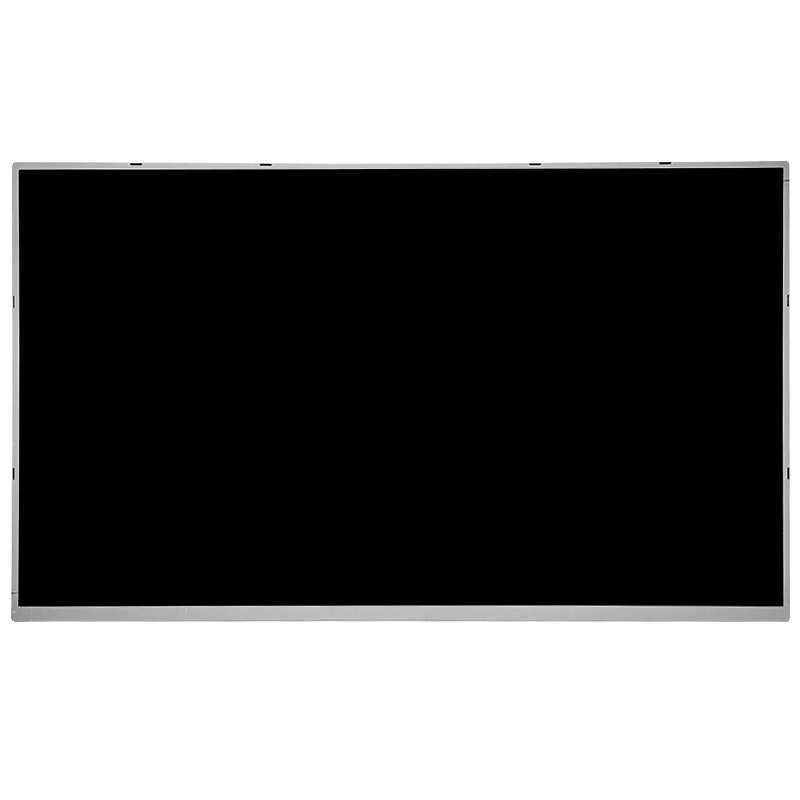

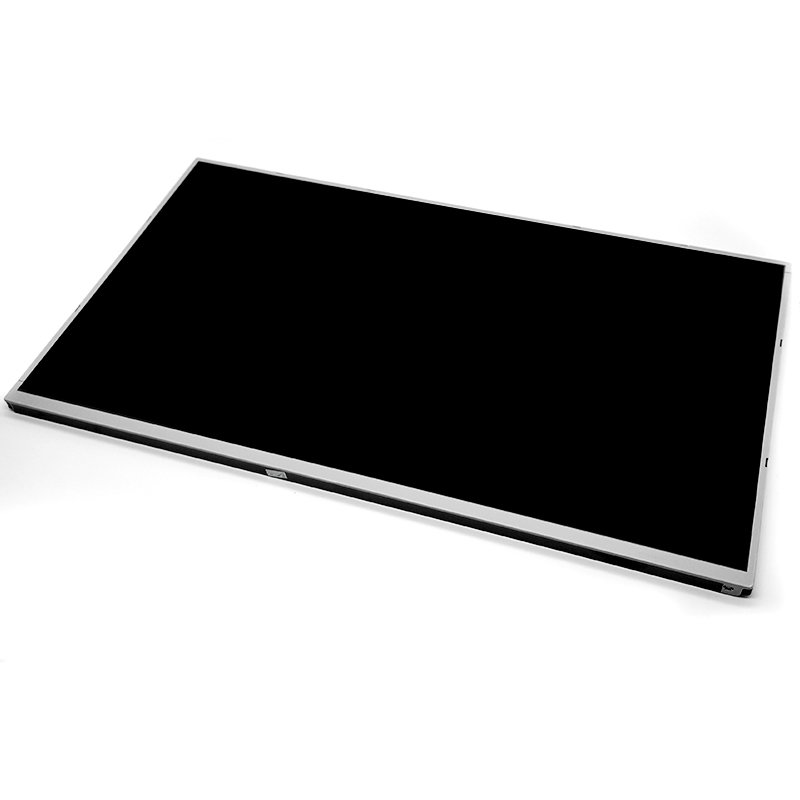

This 23.8-inch Full HD LCD display module is a high-performance visual solution designed for mainstream industrial, commercial, and medical applications requiring crisp imaging and superior contrast. Featuring a standard 1920×1080 resolution, advanced VA (Vertical Alignment) “Normally Black” technology, and an exceptional 3000:1 contrast ratio, it delivers deep blacks, vivid colors, and remarkable visual depth. Powered by a dual-channel 8-bit LVDS interface supporting 16.7M colors, this 250-nit module balances optimal power efficiency (12.17W) with rugged durability, making it an ideal choice for medical diagnostics, security control rooms, public kiosks, and premium human-machine interfaces (HMI).

Item	Specification	Unit	Remark
LCD Size	23.8	inch	Standard wide desktop/industrial type
Display Mode	Normally Black	—	VA (Vertical Alignment) technology
Resolution	1920 × 1080	pixels	Full HD (FHD) high-density crisp imaging
Pixel Pitch	0.2745 × 0.2745	mm	Uniform and precise pixel matrix
Pixel Arrangement	RGB Vertical Stripe	—	Standard high-fidelity RGB alignment
Viewing Direction	ALL	—	Wide full viewing angle via VA panel
Module Size	543.0(H) × 317.4(V) × 11.2(D)	mm	Slim bezel profile for easy integration
Active Area (AA)	527.04(H) × 296.46(V)	mm	Expansive 16:9 active viewing area
White Luminance	250 (Typ.)	cd/m²	Steady center brightness for indoor use
Contrast Ratio	3000 (Typ.)	—	Ultra-high contrast for deep color depth
Response Time	16 (Typ., on/off)	msec	Smooth graphical and video rendering
Colors	16.7M	—	True 8-bit color depth for precise rendering
Interface	Dual-channel LVDS	—	8-bits RGB data input for high-speed transmission
Surface Treatment	SAG 40%, 3H	—	Anti-glare and 3H hard-coating protection
Power Consumption	12.17 (Typ.)	Watt	Low-power design (LCD 3.2W + BLU 8.97W)
Operating Temp.	0°C ~ +50°C	—	Reliable continuous commercial performance
Storage Temp.	-20°C ~ +60°C	—	High durability during transit and storage
Certifications	RoHS / TCO 8.0	—	Fully compliant with eco-safety standards

Key Features

Ultra-High 3000:1 Contrast Ratio Engineered with advanced VA technology, this screen delivers profound black levels and pristine bright details, essential for precision imaging and critical UI tracking.
Full HD Crisp Resolution The 1920×1080 pixel resolution in a 16:9 aspect ratio provides ample desktop space for displaying data-heavy dashboards, complex charts, or high-definition video content.
Dual-Channel LVDS Interface The industry-standard dual-channel 8-bit LVDS interface ensures stable, low-latency, and low-EMI data transfer, compatible with major embedded boards.
RoHS & TCO 8.0 Compliance Built strictly under environmental and safety guidelines, ensuring the module meets worldwide eco-friendly manufacturing and energy-efficiency certifications.
Industrial Surface Hardness Features an anti-glare surface treatment with 3H hardness rating, successfully minimizing ambient reflections while protecting the panel from scratches.

Applications

Medical Diagnostic & Ultrasound Systems
Self-Service Kiosks & Vending Terminals
Industrial Automation HMI Panels
Security Control Room Monitors
Smart Building Interactive Displays
Commercial ATMs & Banking Systems

Application Scenarios

Medical Imaging Diagnostics The deep 3000:1 contrast ratio makes this 23.8″ module perfect for ultrasound machines and endoscopy monitors, where accurate grayscale visibility is vital for diagnosis.
Self-Service Commercial Kiosks Ideal for public interactive terminals, ticketing machines, and retail kiosks, offering vibrant Full HD visuals and anti-glare tracking under indoor light environments.
Industrial Control Rooms Perfect for wall-mounted or desktop industrial monitors, enabling operators to keep track of heavy automated production data and telemetry graphics with zero latency.
Smart Financial Terminals Integrates seamlessly into premium banking ATMs and smart teller machines, ensuring 24/7 power-saving operation and durable 3H surface protection against heavy daily contact.

Why Choose This 23.8-Inch Industrial LCD Module?

Stunning Grayscale Precision: 3000:1 contrast ratio ensures unmatched color grading and clarity.
Energy-Efficient Backlight: Low-consumption LED backlit system draws only 12.17W for total system setup.
Seamless Integration Layout: Slim 11.2mm depth profile enables compact enclosure designs for medical or factory racks.
Global Green Compliance: Certified by RoHS and TCO 8.0, matching international market entry protocols.

Would you like to receive the full technical datasheet, LVDS pin assignment mapping, or a sample quote for your hardware prototype? Contact us today to discuss your display integration needs.

Resolution	1920×1080
Brightness (cd/m²)	250
Viewing Angle	All
Touch	No

FAQ

Is RJY an Original Equipment Manufacturer (OEM)?

Yes. RJY is a direct provider and manufacturer with vertically integrated capabilities, offering full-cycle hardware innovation from design and PCBA assembly to final system integration.

What types of customization does RJY accept?

We can provide customization in the following four distinct areas: Systems & HMI、Display Modules、Software Services、Industrial Design.

What is the stock status for this product?

Most products on display have at least one unit in stock for testing or quick sampling. For sample requests over 20 units, please check with us in advance to ensure the current stock status.

How are the fees structured for custom projects?

Our custom project fees typically consist of two main components:
NRE (Non-Recurring Engineering) fees and unit pricing.
In many cases, if your order reaches a certain volume, we offer to offset or credit a portion of the NRE fees back to you.

How long does a typical customization project take?

The timeline depends on the depth of customization:
Software/Firmware Tweaks: 1-2 weeks
Minor Hardware Modifications: 4-6 weeks
Full-Cycle R&D Projects: 12-16 weeks
