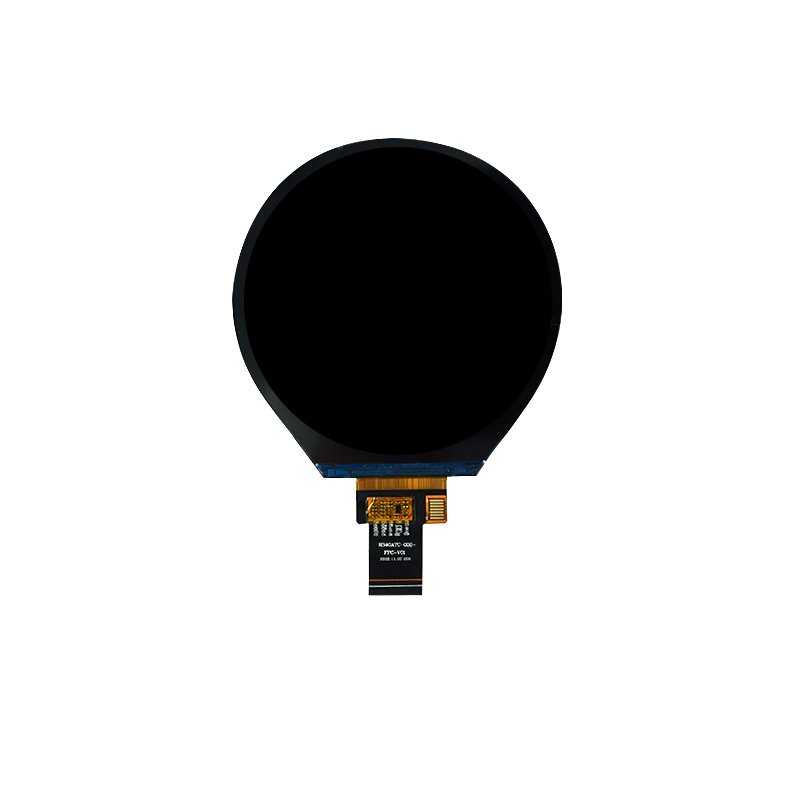

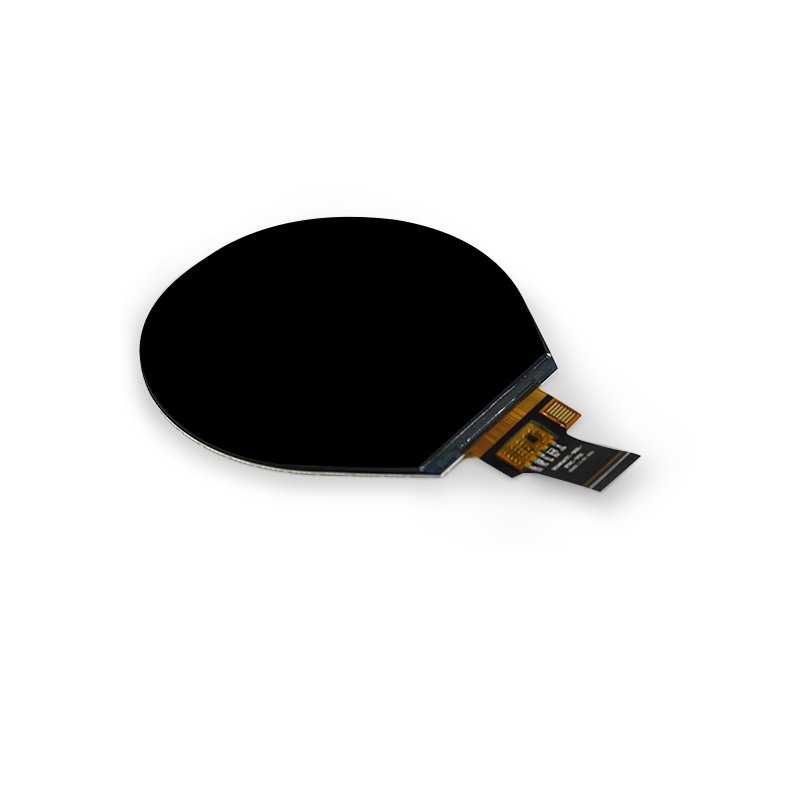

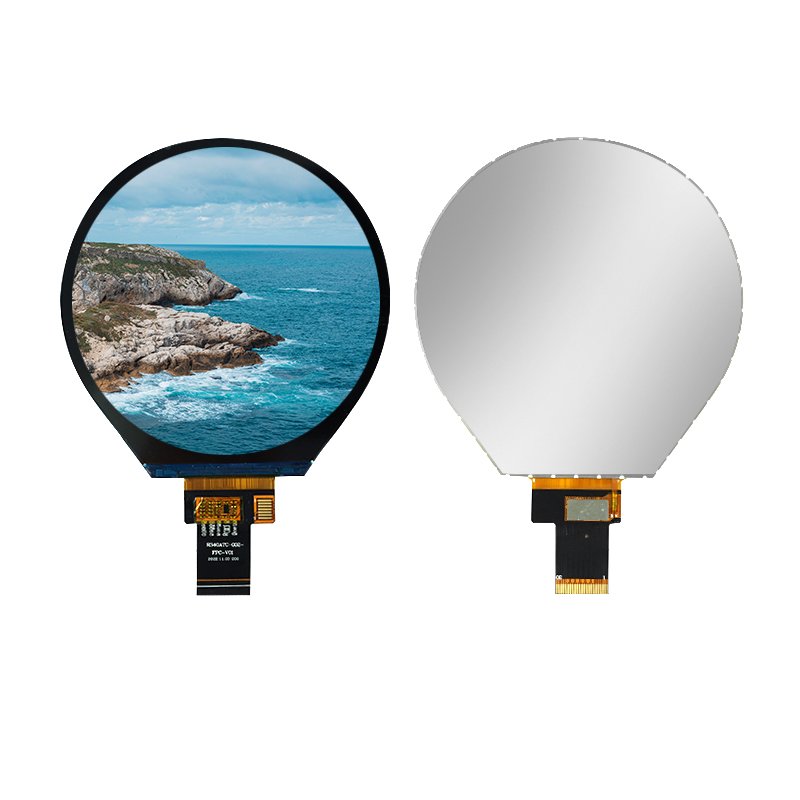

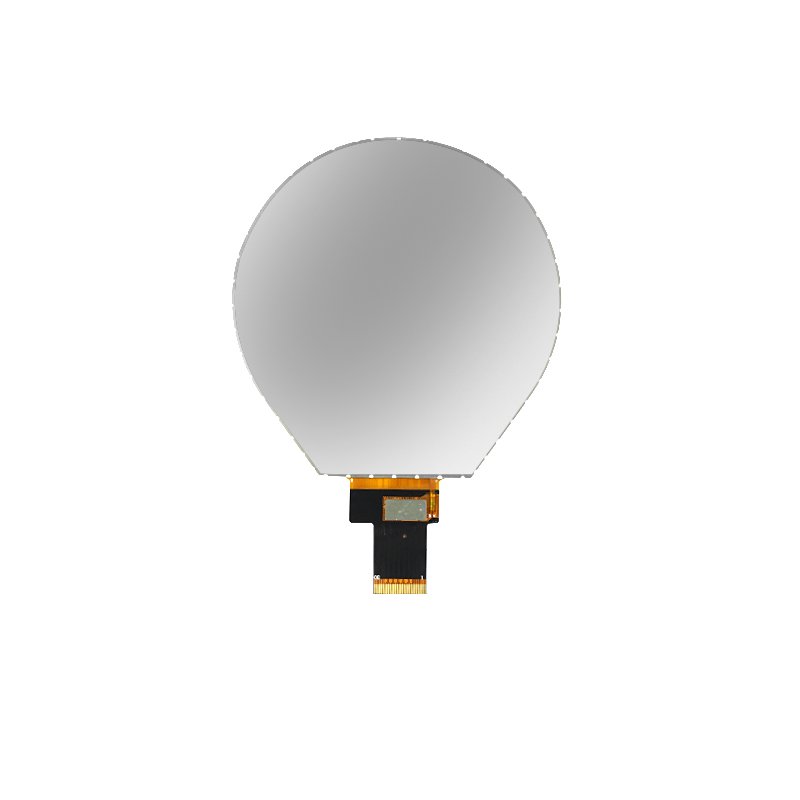

3.4-inch Round LCD Display – 800*800 Resolution, MIPI Interface

Resolution: 800*800 Interface: MIPI Drive IC: JD9365DA Color: 16.7M Pin connect: 20pin

Size: 3.4 inch
Resolution: 800×800
Brightness: 400 cd/m²
Interface: MIPI
Touch: Optional

Engineering verification

Manufacturer model/SKU was not supplied; RJY-WC-41107 is an internal catalog reference.

Designed for integration

Product overview.

RV034L6M-650-30 is a round TFT display LCD module, with 800(RGB)x800 pixels, 4 Lane MIPI interface, with JD9365DA driver IC. This circular LCD screen could be widely used in many applications that need a round screen, such as in smart home control, an audio device with a full-color screen panel, and a car speedometer that needs a round display.

This circular display panel is without touch, but touch will add according to your requirements, G+G, G+F, G+FF or any requirement, you could tell us.

It has a wide temperature for storage and Operating, supporting the control screen that needs a high or low-temperature environment.

Luminance could customize, the typ is 650nit with this lcd panel, if you need sunlight-readable high brightness, please tell us the specifications you need.

Key features

Resolution: 800*800
Interface: MIPI
Drive IC: JD9365DA
Color: 16.7M
Pin connect: 20pin

Technical reference

Specifications.

Values are model-specific. Review document revisions and any verification notes before integration.

Display

Parameter	Value	Unit	Notes
Resolution	800×800	—	—
Size(inch)	3.4	—	—
Drive IC	JD9365DA	—	—

Optical

Parameter	Value	Unit	Notes
Brightness (cd/m²)	400	—	—
Color	16.7M	—	—

Touch

Parameter	Value	Unit	Notes
Touch	Optional	—	—

Environmental

Parameter	Value	Unit	Notes
Wide Temperature	Yes	—	—

Interface & pins

Parameter	Value	Unit	Notes
Interface	MIPI	—	—
Pin connect	20pin	—	—

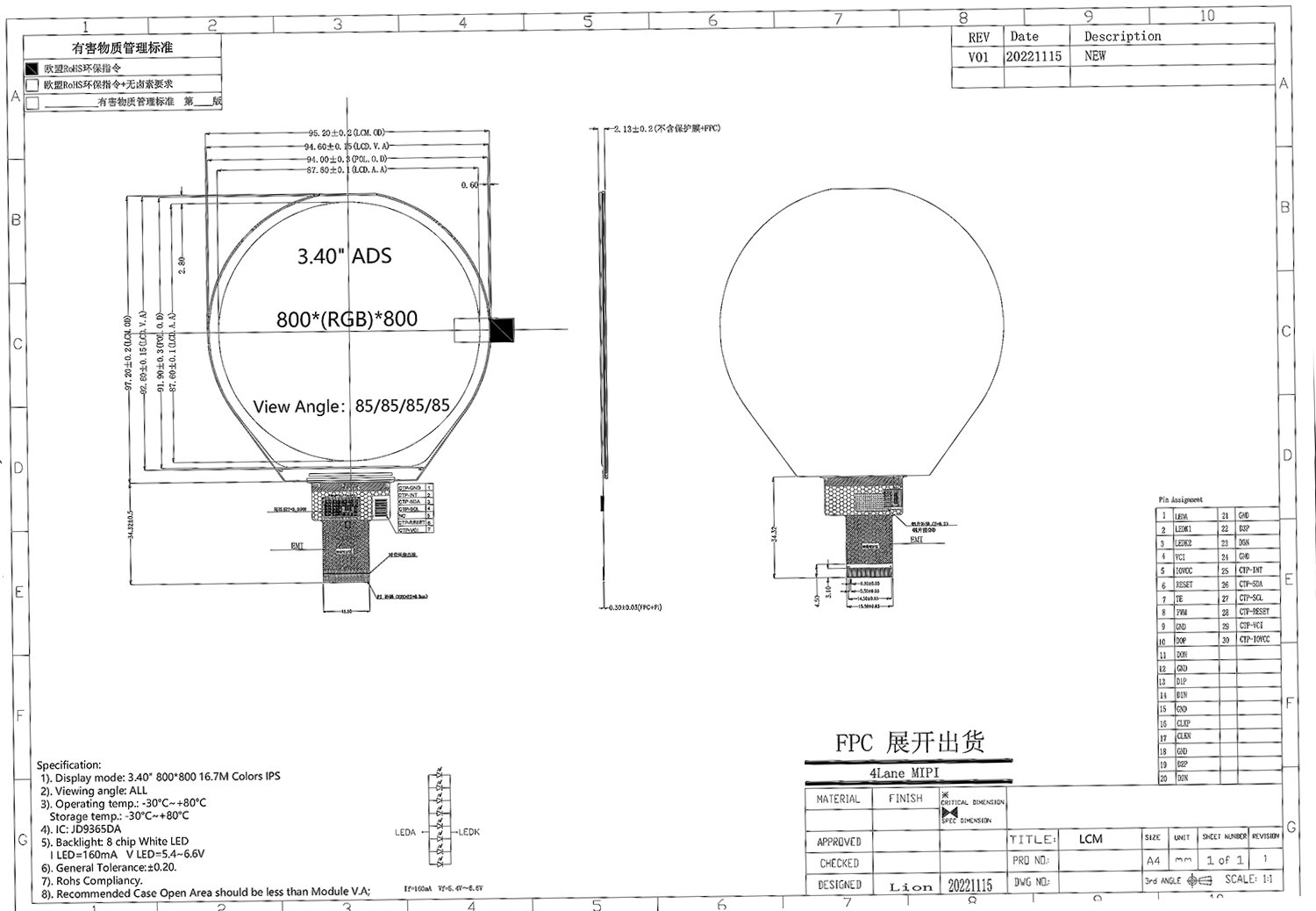

Drawings & technical resources

Product documents.

Contact our team for the current datasheet or mechanical drawing.
