RV046L2M-500-40Active model
4.58 inch Bar Type TFT LCD Display – 320*960, RGB Interface
Size: 4.58 inch lcd display Resolution: 320*960 Interface: SPI+RGB
- Size
- 4.58 inch
- Resolution
- 320×960
- Brightness
- 500 cd/m²
- Interface
- RGB, SPI
Designed for integration
Product overview.

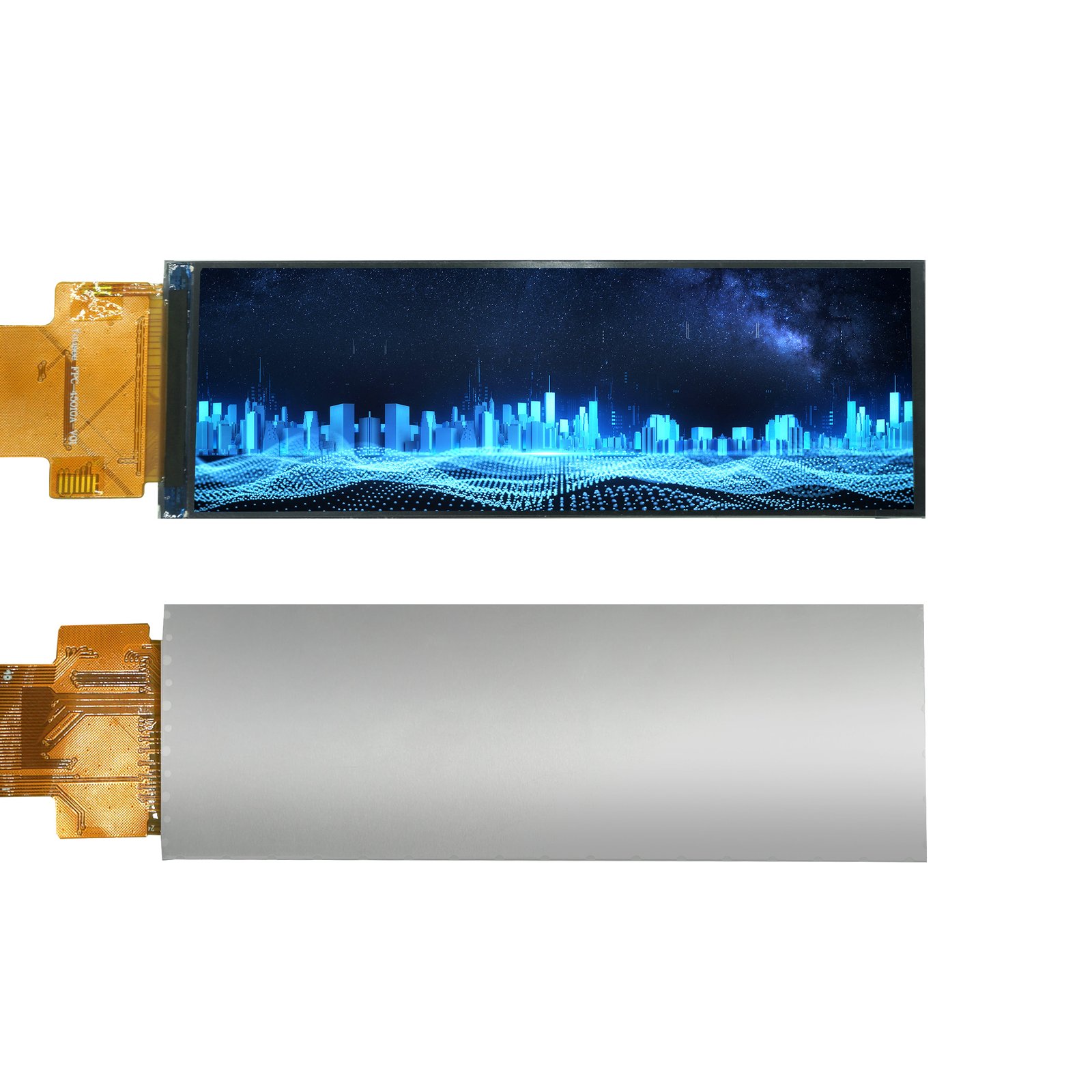

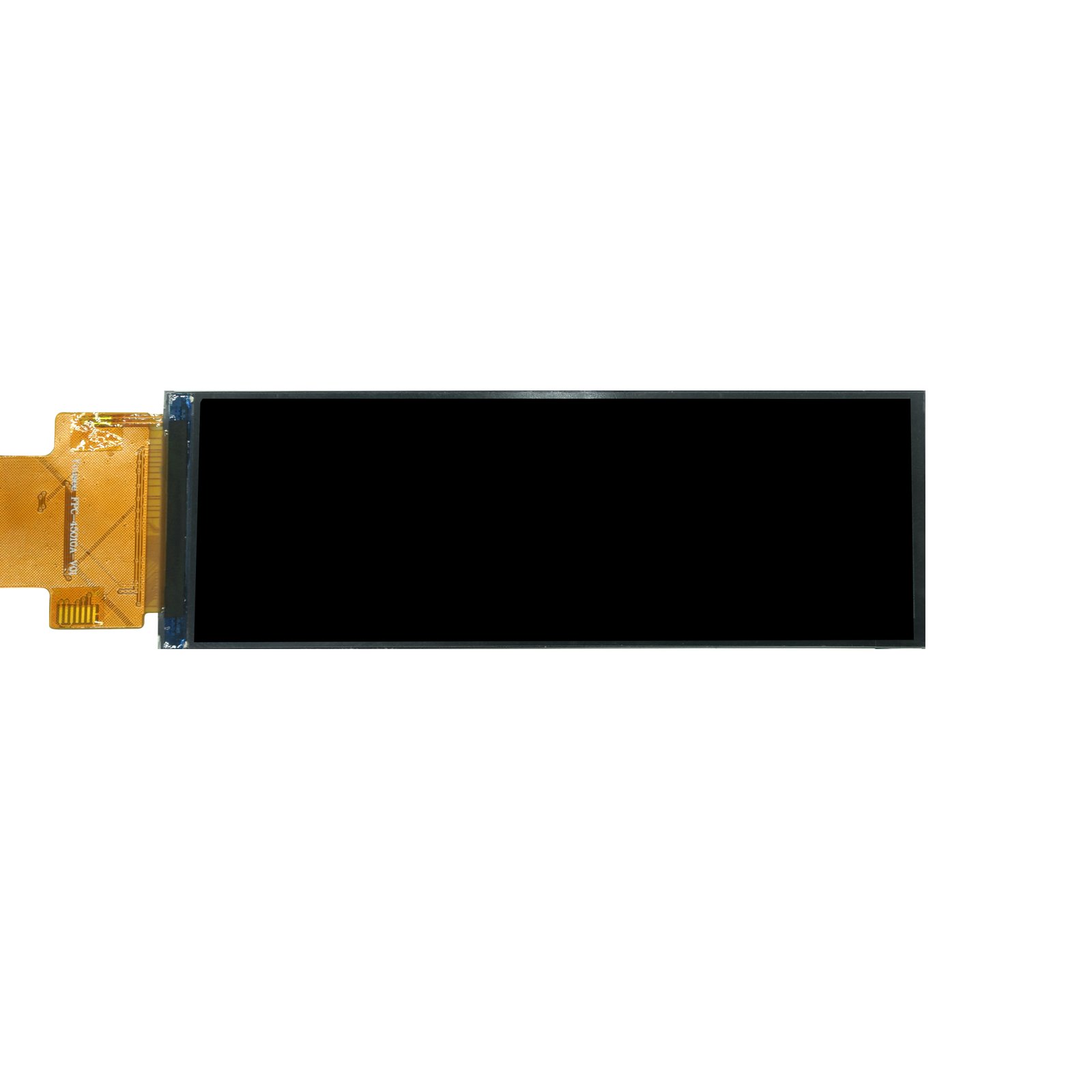

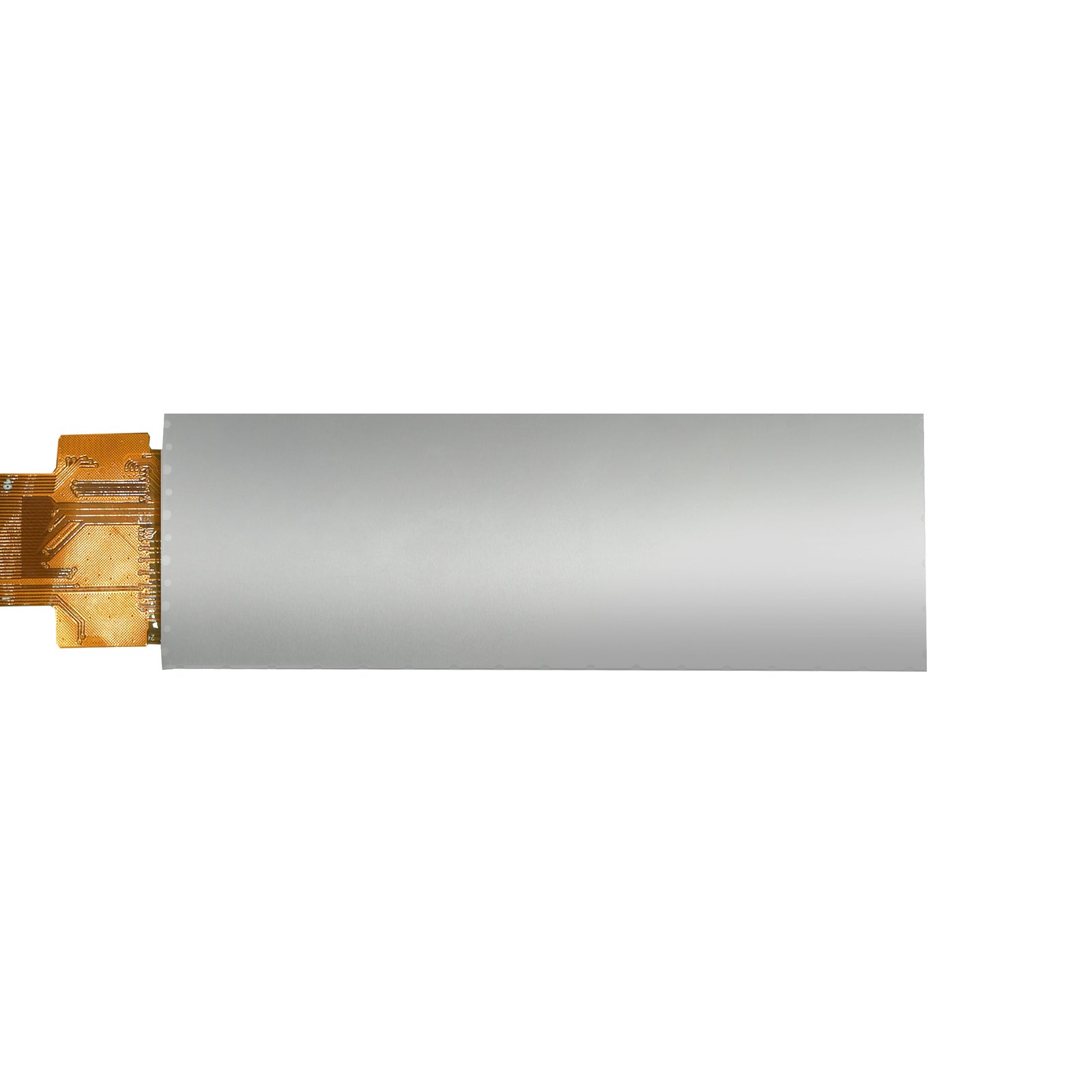

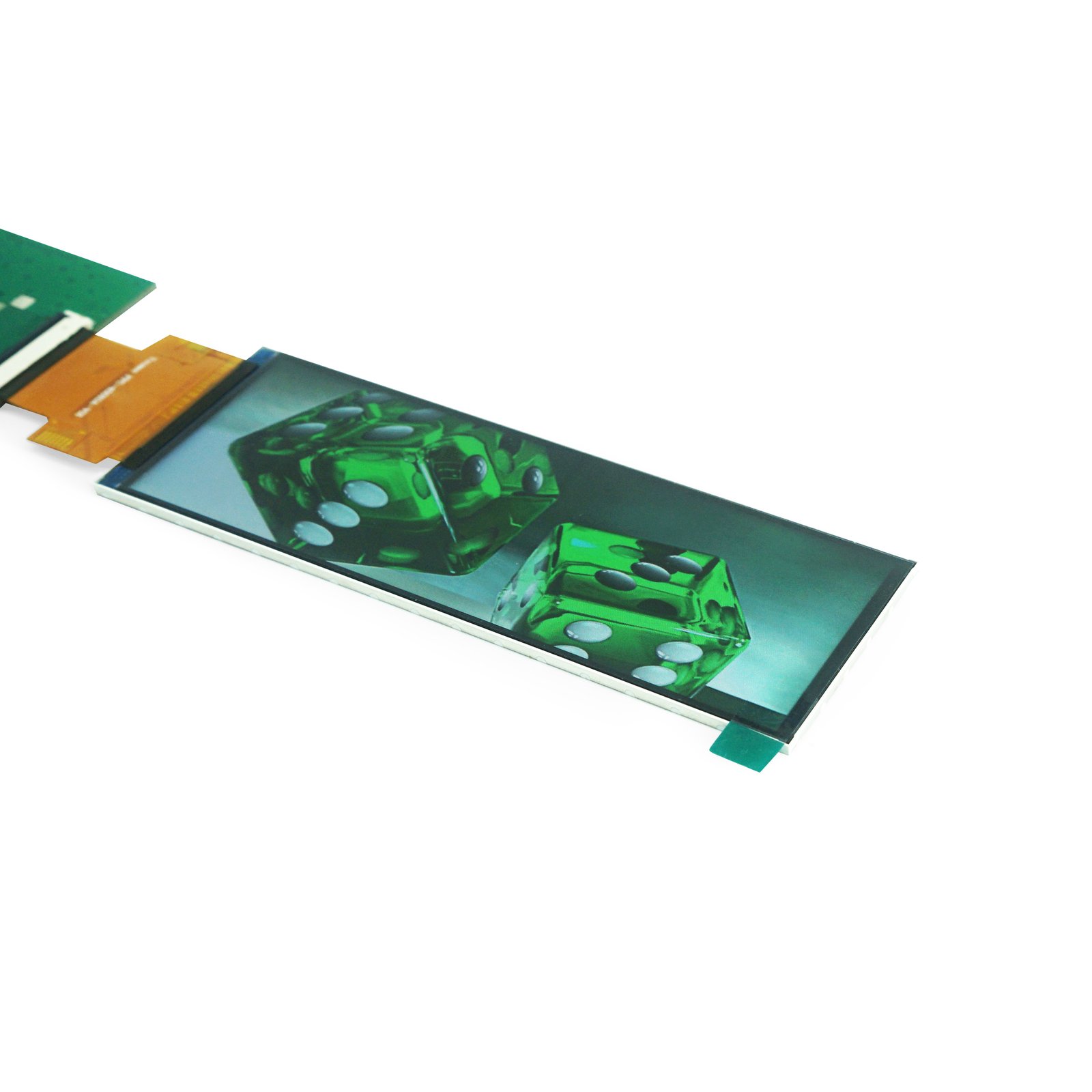

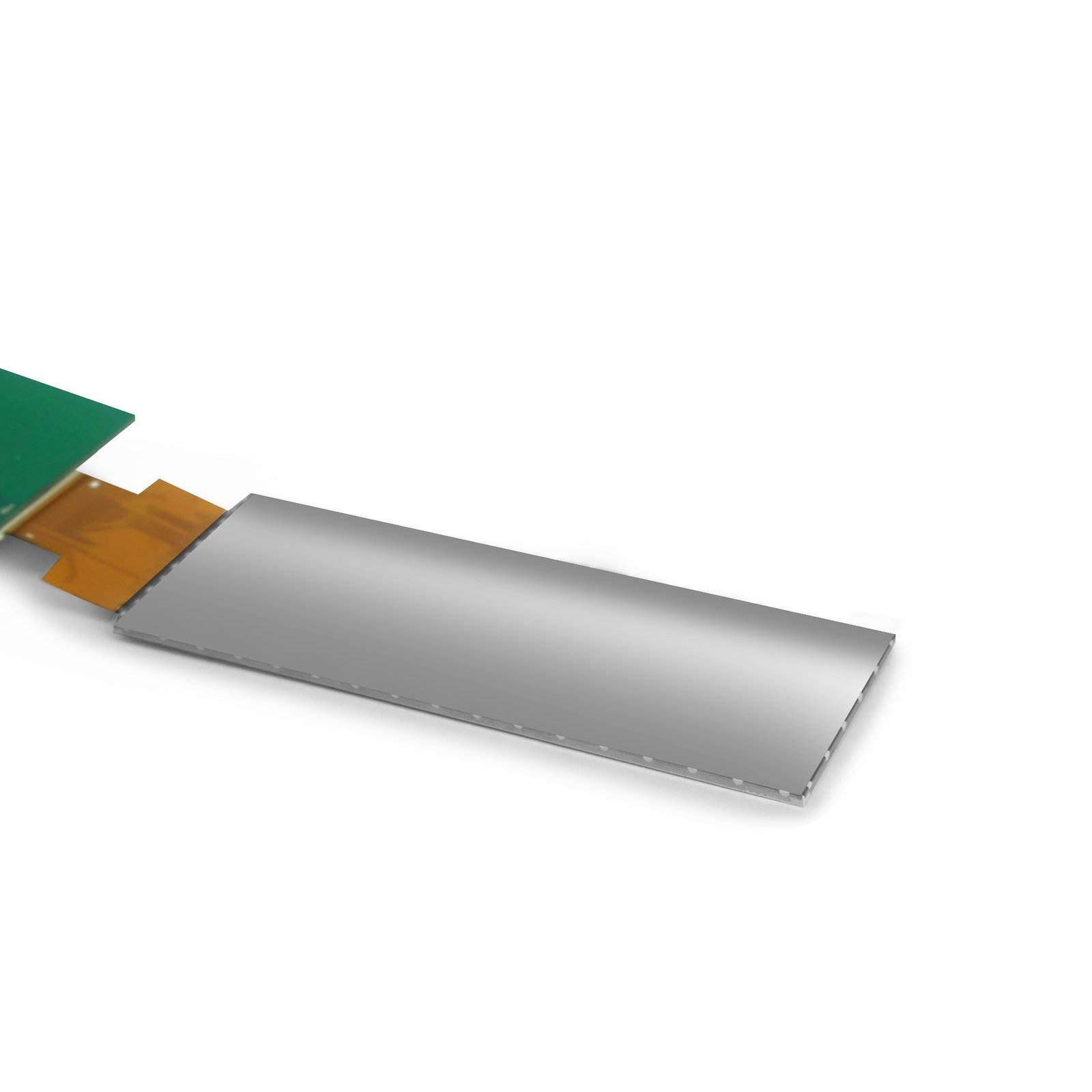

This stretched bar LCD display is 4.58-inch or 4.6 inches, with 320*960 resolution, usual application in an oven, microwave donkey or refrigerator, as a screen for color food display, or at the touch of a button control panel. It is a SPI+RGB interface transmissive TFT display panel.
Flexible configuration of control boards or adapter boards with various interfaces, a variety of touch options, RTP, CTP, single-touch or multi-touch, surface treatment hardness and protective glass can also be customized according to your requirements. If you have any questions, please discuss it with us in time.
| Model | RV046L2M-500-40 |
| Size | 4.58 inch bar lcd display |
| LCD Type | TFT-LCD /TRANSMISSIVE |
| Number of Dots | 320(RGB) *960 |
| Outline dimensions | 40.37(W)* 117.9(H)*2.08(T) |
| Active area | 36.77(W)* 110.3(H) |
| Viewing direction | ALL |
| Backlight type | White LED |
| LCD Driver IC | ST7701S |
| Interface type | 3SPI+RGB18BIT interface |
Key features
- Size: 4.58 inch lcd display
- Resolution: 320*960
- Interface: SPI+RGB
Technical reference
Specifications.
Values are model-specific. Review document revisions and any verification notes before integration.
Display
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Size(inch) | 4.58 | — | — |
| Resolution | 320×960 | — | — |
| Size | 4.58 inch lcd display | — | — |
| Model | RV046L2M-500-40 | — | — |
| Size | 4.58 inch bar lcd display | — | — |
| LCD Type | TFT-LCD /TRANSMISSIVE | — | — |
| Number of Dots | 320(RGB) *960 | — | — |
| Backlight type | White LED | — | — |
Optical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Brightness (cd/m²) | 500 | — | — |
| Viewing direction | ALL | — | — |
Mechanical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Outline dimensions | 40.37(W)* 117.9(H)*2.08(T) | — | — |
| Active area | 36.77(W)* 110.3(H) | — | — |
Interface & pins
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Interface | RGB, SPI | — | — |
| Interface | SPI+RGB | — | — |
| LCD Driver IC | ST7701S | — | — |
| Interface type | 3SPI+RGB18BIT interface | — | — |
No matching parameters.
