5-inch IPS LCD Display – MIPI Interface, 720*1280 Resolution

Product Introduction

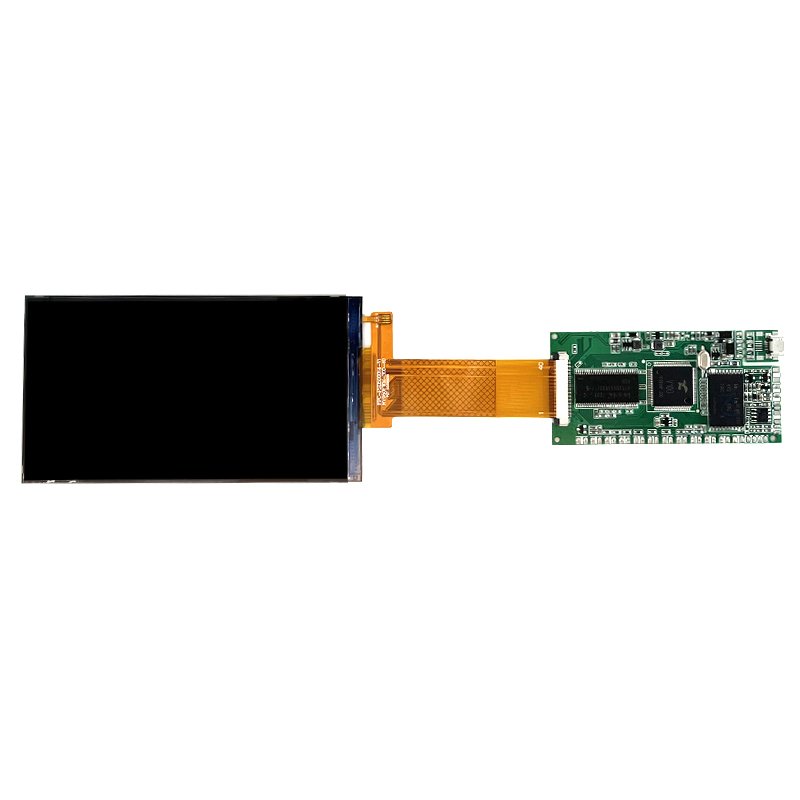

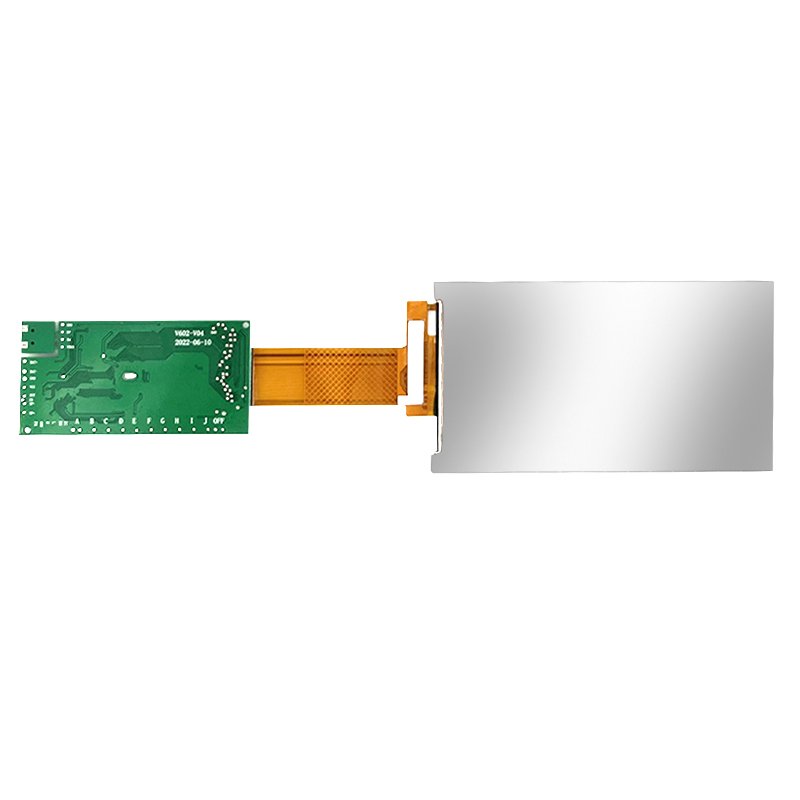

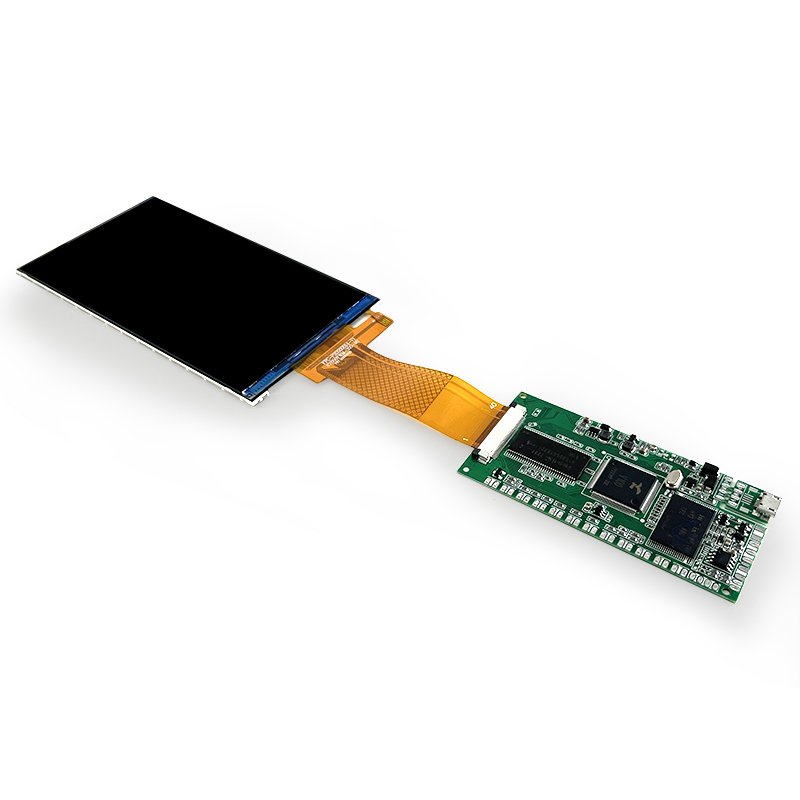

Introducing the RV050HDM-380-40 – a cutting-edge 5-inch LCD display module designed for high-definition visual performance in various industrial and consumer applications. As a seasoned embedded engineer, I understand that display quality can make or break a product’s user experience, and this module is engineered to deliver exceptional clarity and color accuracy.

Key features include:

• Display Size & Mode:
  A 5-inch screen operating in a “Normally Black” mode ensures that the default state of the display is dark, enhancing contrast and reducing power consumption when not actively illuminated.

• Resolution & Pixel Details:
  With a resolution of 720(RGB) x 1280 and a precise pixel pitch of 0.0855mm (both horizontally and vertically), the module offers crisp images and smooth graphics. The pixels are arranged in an RGB vertical stripe pattern, ensuring consistent color reproduction across all viewing angles.

• Viewing & Dimensions:

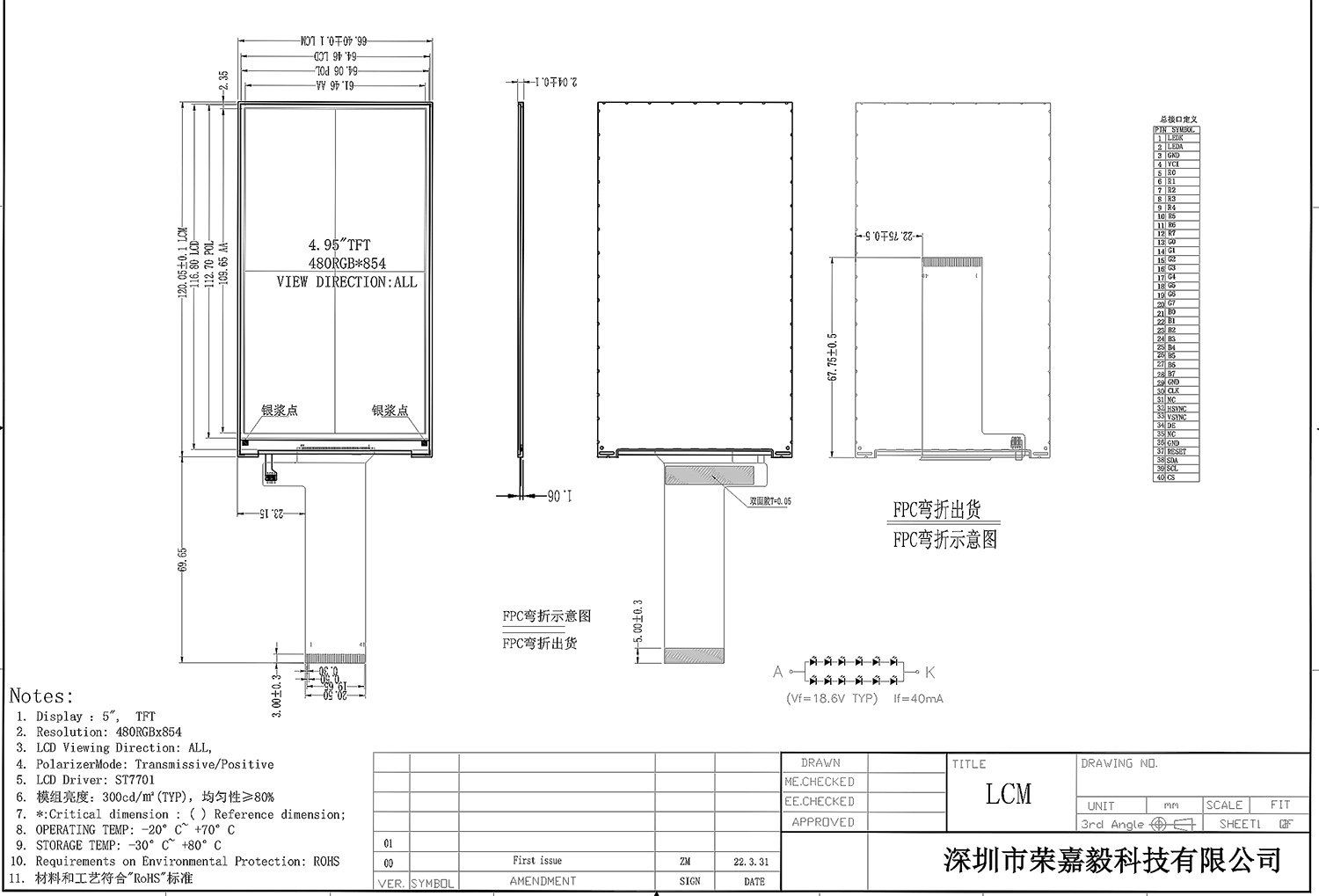

  The display is designed for all-angle viewing, making it ideal for devices that require versatile placement. The overall module measures 65.35mm (H) x 118.8mm (V) x 2.1mm (D), while the active area (LCD AA) is 61.78mm (H) x 109.82mm (V).

• Color & Driver:
  Capable of displaying 16.7 million colors, this LCD display is driven by the HX8394F IC, ensuring smooth operation and vivid color presentation.

• Interface & Backlight:
  The module supports a MIPI interface, which guarantees high-speed data transmission with low power consumption. Its white LED backlight further enhances the display’s brightness and clarity.

• Robust Operating Conditions:
  Engineered to perform reliably in a wide range of environments, the display operates within -20℃ to +70℃ and can be stored safely from -30℃ to +80℃.

This LCD module is a perfect blend of advanced display technology and robust design, making it an ideal choice for projects where high-definition visual output and durability are paramount.
