RV068WVM-800-50Active model

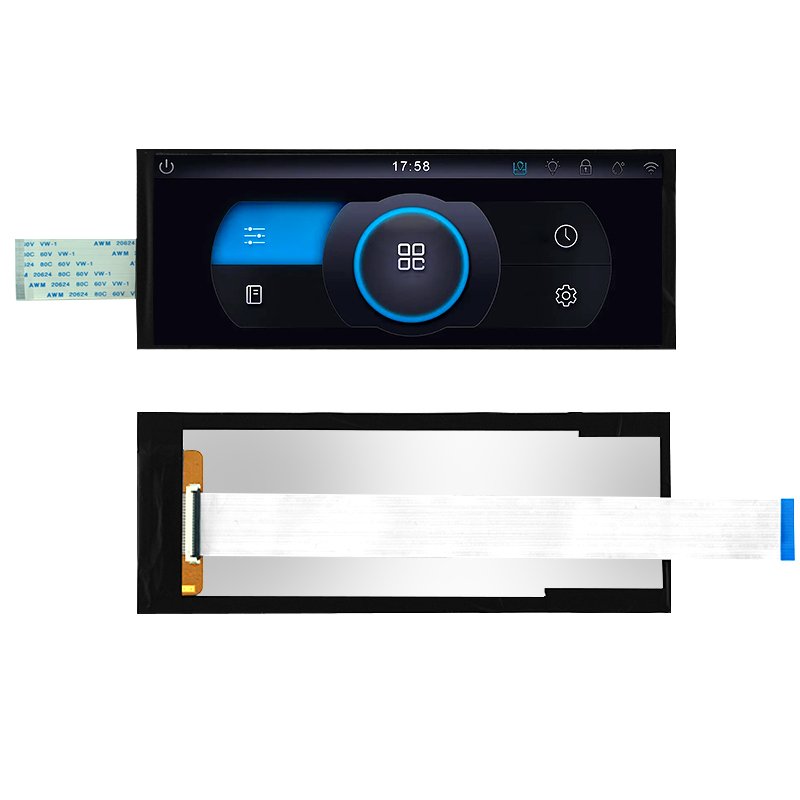

6.8 inch Bar TFT LCD Display, 480*1280 LCD Panel for Microwave Oven

Size: 6.8 inch TFT Color LCD Display Resolution: 480*1280 Interface: MIPI IC Driver: ICN9707 Storage Temperature: -30 to +80 ℃ Keyword: TFT LCD Panel, 6.8 inch Color Display Panel

Size: 6.8 inch
Resolution: 480×1280
Brightness: 800 cd/m²
Interface: MIPI

Designed for integration

Product overview.

This is a color TFT LCD stretched bar display, 6.8 inch size with 1280*480 resolution, mainly used in home kitchen appliances control panel, such as ovens, microwave ovens, air fryers, etc.

If you need samples, you can tell us:

1: The quantity of samples, we have a large number of samples in stock for fast shipment;

2: Do you need an HDMI board? Usually we will provide it, unless you don’t need it;

3: Your address, we may need to calculate the shipping cost and the time of express arrival for you;

4: The conventional interface is MIPI, if you need others, please specify;

5: Do you need a samples with touch or no touch.

If you need to customize a special product, tell us your requirements as details, our professional sales will get into deep discussions with you and keep your project absolutely confidential.

Model	RV068Y0M-TBD-40
Size	6.8 inch TFT Color LCD Display Panel
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE
Display Format	480(R,G,B)*1280
Input Data	MIPI
View Angle	ALL O”clock
IC Driver	ICN9707
Display Colors	16.7M
Module Size	65.75(W)×176.53(L)×4.15(T)
Active Area	60.192(W) ×160.512(L)
Pixel Size	0.047*0.141
Operating Temperature	-20 to +70 ℃
Storage Temperature	-30 to +80 ℃

Key features

Size: 6.8 inch TFT Color LCD Display
Resolution: 480*1280
Interface: MIPI
IC Driver: ICN9707
Storage Temperature: -30 to +80 ℃
Keyword: TFT LCD Panel, 6.8 inch Color Display Panel

Technical reference

Specifications.

Values are model-specific. Review document revisions and any verification notes before integration.

Display

Parameter	Value	Unit	Notes
Size(inch)	6.8	—	—
Resolution	480×1280	—	—
Size	6.8 inch TFT Color LCD Display	—	—
Keyword	TFT LCD Panel, 6.8 inch Color Display Panel	—	—
Model	RV068Y0M-TBD-40	—	—
Size	6.8 inch TFT Color LCD Display Panel	—	—
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE	—	—
Display Format	480(R,G,B)*1280	—	—
Input Data	MIPI	—	—
Module Size	65.75(W)×176.53(L)×4.15(T)	—	—
Pixel Size	0.047*0.141	—	—

Optical

Parameter	Value	Unit	Notes
Brightness (cd/m²)	800	—	—
Viewing Angle	All	—	—
View Angle	ALL O”clock	—	—
Display Colors	16.7M	—	—

Mechanical

Parameter	Value	Unit	Notes
Active Area	60.192(W) ×160.512(L)	—	—

Environmental

Parameter	Value	Unit	Notes
Wide Temperature	Yes	—	—
Storage Temperature	-30 to +80 ℃	—	—
Operating Temperature	-20 to +70 ℃	—	—

Interface & pins

Parameter	Value	Unit	Notes
Interface	MIPI	—	—
IC Driver	ICN9707	—	—

Drawings & technical resources

Product documents.

Contact our team for the current datasheet or mechanical drawing.
