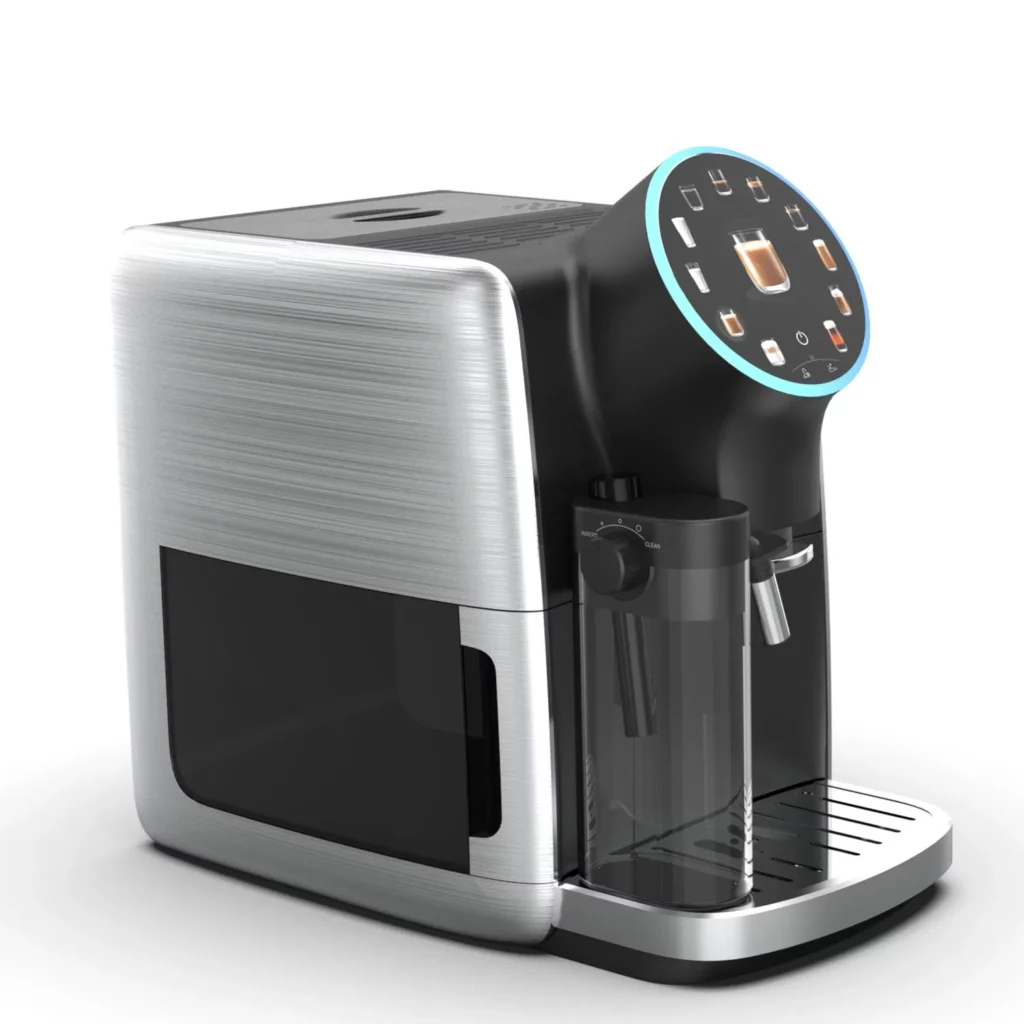

Integrating a 4-Inch Round LCD into Smart Coffee Machines

Project Background

The client, a European kitchen appliance brand, approached us with the goal of designing a premium automatic espresso machine targeting the mid-to-high-end consumer market. Their core requirement: a circular display that could seamlessly blend into the machine’s modern, minimalist design without compromising functionality.

They needed:

• A compact, round display that fits the central control dial.
• High brightness and wide viewing angle for clear visibility in both daylight and indoor environments.
• Capacitive touch functionality for a button-free interface.
• A UI-friendly resolution to support animations and multilingual menus.

Why Choose a 4-Inch Round LCD?

The 4-inch round TFT LCD module offered an optimal balance between display size and mechanical footprint. Unlike traditional rectangular displays, the circular format fit perfectly into the rotary interface of the machine’s front panel, creating a seamless integration between physical controls and digital UI.

Key Technical Specs:

• Resolution: 800×800 pixels – Ideal for circular UI design.
• Brightness: 600–800 cd/m² – Readable under strong kitchen lighting.
• Viewing Angle: ALL O’clock IPS – No color shifting from side views.
• Touch Technology: Capacitive (G+G structure) – Supports gesture controls and gloved operation.
• Interface: MIPI or RGB – Compatible with embedded processors like STM32 or NXP series.

Implementation Details

To ensure compatibility with the customer’s UI stack and embedded platform, the display module was paired with a ST7701S driver IC and delivered with pre-configured initialization code. We provided:

• Custom FPC design for simplified connection.
• Anti-fingerprint coating on the cover glass.
• A resistive variant for budget-oriented models (for comparison testing).

Mechanical integration involved aligning the display with a rotary encoder and surrounding LED ring. Our engineering team worked closely with the client’s ID and UI teams to ensure precise mechanical tolerances and aesthetic consistency.

Results

After prototype evaluation and market testing, the round LCD-equipped model achieved:

• 40% faster navigation through touch interface vs traditional button controls.
• Higher perceived product value, according to customer feedback surveys.
• Enhanced branding, as the round display supported animated logos and interactive boot-up sequences.
• Fewer support tickets related to UI confusion, thanks to the intuitive graphical layout.

The LCD’s wide temperature range (-20°C to +70°C) also ensured reliable performance in varying kitchen environments, including near hot steam vents.

Conclusion

This case study highlights the value of specialized LCD form factors, such as 4-inch round TFT displays, in consumer appliance innovation. For devices like smart coffee machines, display technology is no longer just about showing numbers—it’s about creating experiences.

Our round LCD solution not only met technical expectations but also contributed significantly to the product’s design identity and user satisfaction.
