10.1 inch Automotive TFT LCD Display – PanelHead-up Car LCD Display Instrument Cluster Multimedia Digital Dashboard

Select a view to inspect the module. Click the main image to enlarge.

Display & embedded solutions

RV101LBP-480-40Engineering review

10.1 inch Automotive TFT LCD Display – PanelHead-up Car LCD Display Instrument Cluster Multimedia Digital Dashboard

Size: 10.1 inch Resolution: 440*1920 Brightness: 550nit Interface: MIPI Touch: with touch

Size
10.1 inch
Resolution
440×1920
Brightness
500 cd/m²
Interface
MIPI
Touch
Yes
Request engineering review
View full specifications ↓
Engineering verification

Export contains conflicting brightness: 500 / 550. Verify the source specification.
Export contains conflicting brightness: 500 / 480. Verify the source specification.

Designed for integration

Product overview.

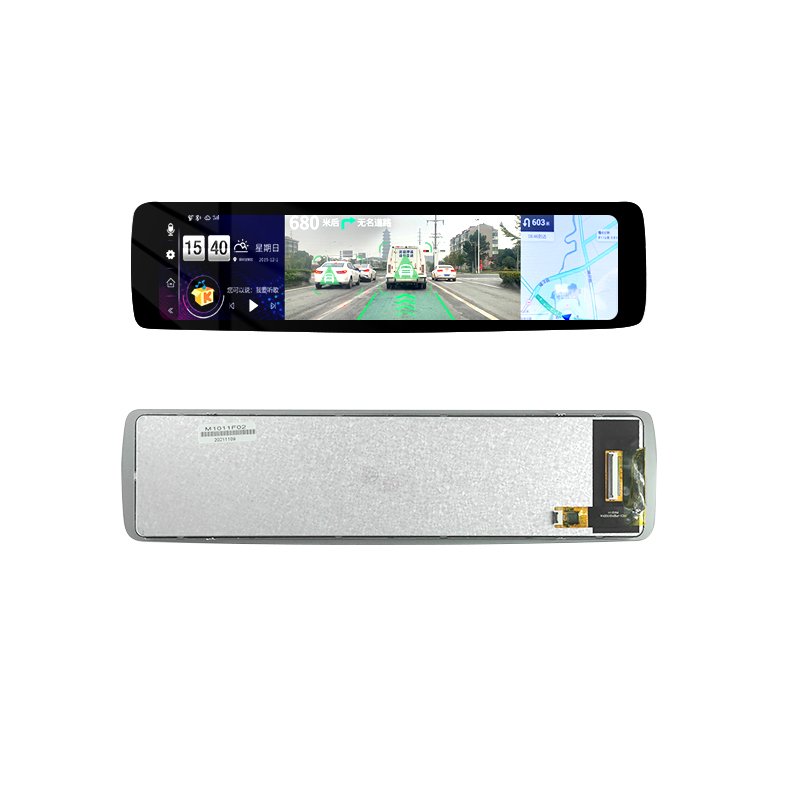

RV101LBP-480-40 is a car dashboard display, it is also a TFT-LCD display. Usually automotive speedometer digital Cluster Instrument used.

With 10.1 inch 440*1920, MIPI interface TFT LCD display, 40pin with capacitive touch.

Model RV101LBP-480-40
Size 10.1 inch TFT LCD Panel for car
LCD Type AM TFT ,TRANSMISSIVE, NEGATIVE
Display Format 440(R,G,B)*1920
Input Data MIPI
View Angle ALL O”clock
IC Driver ICN9707
Display Colors 16.7M
Module Size 267(W)×64.8(L)×4.1(T)
Active Area 252.86(W) ×57.95(L)
Pixel Size 0.047*0.141
Operating Temperature -20 to +80
Storage Temperature -30 to +80
LCM Luminance 480
Touch with touch









Key features

  • Size: 10.1 inch
  • Resolution: 440*1920
  • Brightness: 550nit
  • Interface: MIPI
  • Touch: with touch

Technical reference

Specifications.

Values are model-specific. Review document revisions and any verification notes before integration.

Display

ParameterValueUnitNotes
Size(inch)10.1——
Resolution440×1920——
Size10.1 inch——
ModelRV101LBP-480-40——
Size10.1 inch TFT LCD Panel for car——
LCD TypeAM TFT ,TRANSMISSIVE, NEGATIVE——
Display Format440(R,G,B)*1920——
Input DataMIPI——
Module Size267(W)×64.8(L)×4.1(T)——
Pixel Size0.047*0.141——

Optical

ParameterValueUnitNotes
Brightness (cd/m²)500——
Viewing AngleAll——
Brightness550nit——
View AngleALL O”clock——
Display Colors16.7M——
LCM Luminance480——

Mechanical

ParameterValueUnitNotes
Active Area252.86(W) ×57.95(L)——

Touch

ParameterValueUnitNotes
Touchwith touch——

Environmental

ParameterValueUnitNotes
Wide TemperatureYes——
Operating Temperature-20 to +80——
Storage Temperature-30 to +80——

Interface & pins

ParameterValueUnitNotes
InterfaceMIPI——
IC DriverICN9707——

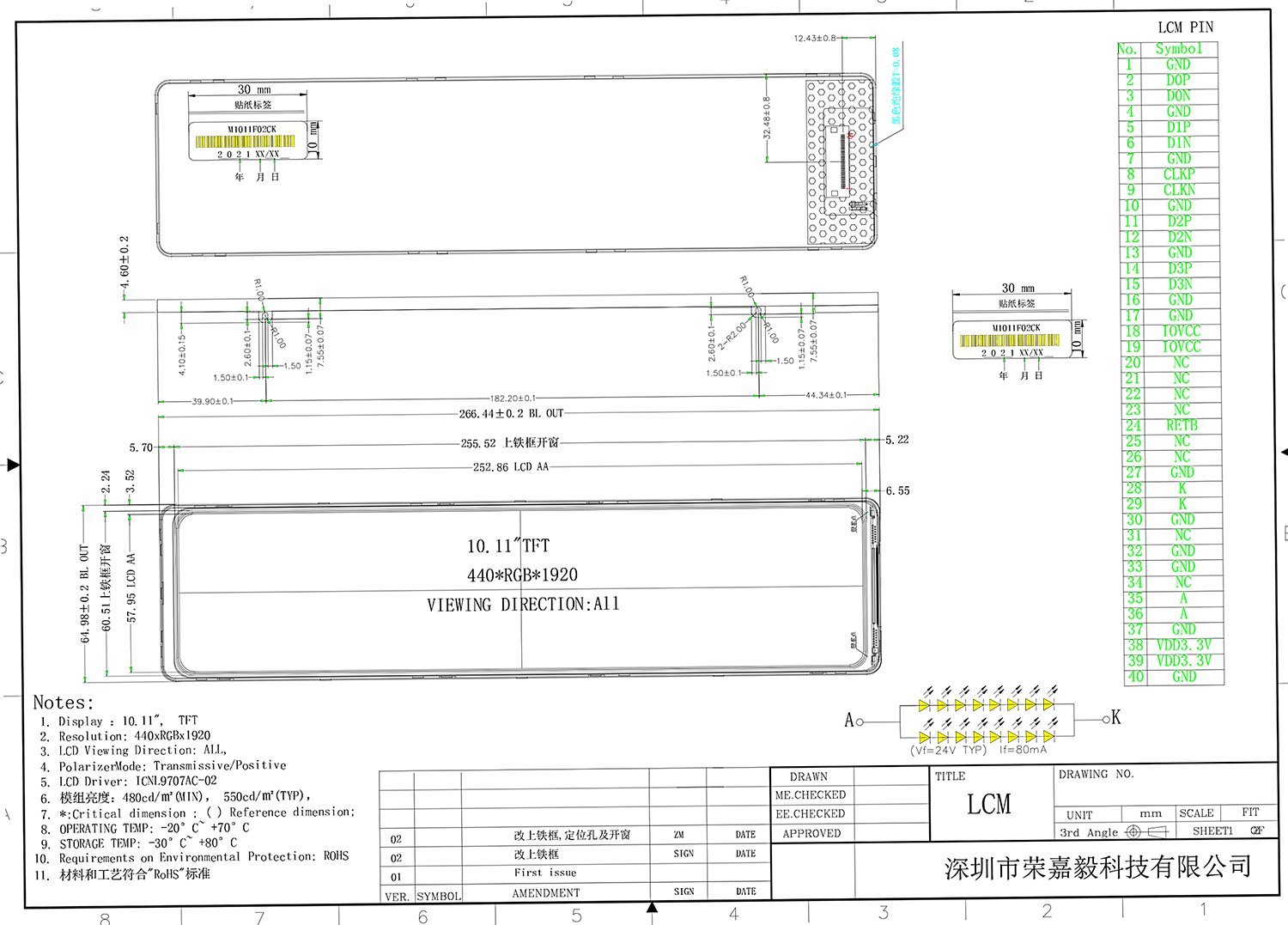

Drawings & technical resources

Product documents.

Contact our team for the current datasheet or mechanical drawing.

Before you integrate

Product questions.

Have a technical question? Send your project requirements below.

Let’s check the fit

Your application.
Our engineering review.

Share your interface, controller, touch and mechanical requirements for RV101LBP-480-40.

  • Application and operating environment
  • Target board and display interface
  • Touch, brightness and cover-glass requirements
  • Evaluation needs and project timeline
