RV043FHM-K10-60Engineering review

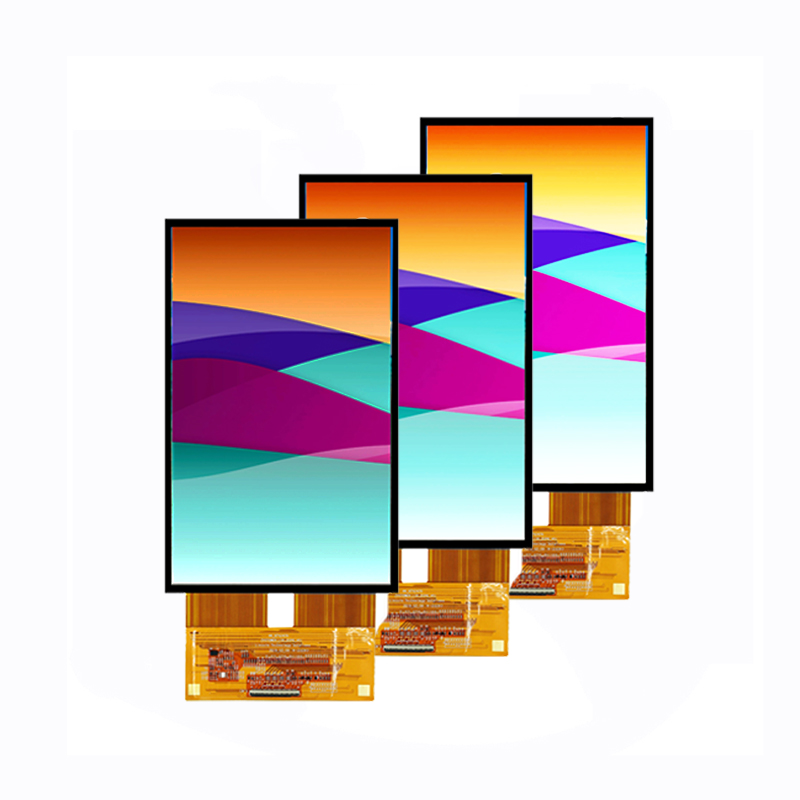

4.3 inch TFT LCD Display – 480*800 Resolution, RGB SPI Interface
Size: 4.3 inch Resolution: 480*800 Interface: RGB+SPI LCD Type: TFT/TRANSMISSIVE Storage temperature: -30-70 °C
- Size
- 4.3 inch
- Resolution
- 800×480
- Brightness
- 1000 cd/m²
- Interface
- RGB, SPI
Engineering verification
Export contains conflicting resolution: 800×480 / 480*800. Verify the source specification.
Designed for integration
Product overview.
| Model | HYS-043BT5S2P002_V3 |
| Size | 4.3 inch LCD Display |
| LCD Type | TFT/TRANSMISSIVE |
| Module area | 60.86(H) *102.57(V) *2.7(T) |
| Active area (W×H) | 56.16(W)*93.6(L) |
| Number of Dots | 480(RGB)×800 |
| Pixel pitch (W× H) | 0.117(H) × 0.117(V) |
| Driver IC | S6D77A1A01-B0E1 |
| Interface Type | System RGB+SPI interface |
| Colors | 16.7M |
| Operating temperature | -20-70 °C |
| Storage temperature | -30-70 °C |
Key features
- Size: 4.3 inch
- Resolution: 480*800
- Interface: RGB+SPI
- LCD Type: TFT/TRANSMISSIVE
- Storage temperature: -30-70 °C
Technical reference
Specifications.
Values are model-specific. Review document revisions and any verification notes before integration.
Display
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Size(inch) | 4.3 | — | — |
| Resolution | 800×480 | — | — |
| Size | 4.3 inch | — | — |
| Resolution | 480*800 | — | — |
| LCD Type | TFT/TRANSMISSIVE | — | — |
| Model | HYS-043BT5S2P002_V3 | — | — |
| Size | 4.3 inch LCD Display | — | — |
| Module area | 60.86(H) *102.57(V) *2.7(T) | — | — |
| Number of Dots | 480(RGB)×800 | — | — |
| Pixel pitch (W× H) | 0.117(H) × 0.117(V) | — | — |
Optical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Brightness (cd/m²) | 1000 | — | — |
| Viewing Angle | All | — | — |
| Colors | 16.7M | — | — |
Mechanical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Active area (W×H) | 56.16(W)*93.6(L) | — | — |
Environmental
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Wide Temperature | Yes | — | — |
| Storage temperature | -30-70 °C | — | — |
| Operating temperature | -20-70 °C | — | — |
Interface & pins
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Interface | RGB, SPI | — | — |
| Driver IC | S6D77A1A01-B0E1 | — | — |
| Interface Type | System RGB+SPI interface | — | — |
No matching parameters.
Drawings & technical resources
Product documents.

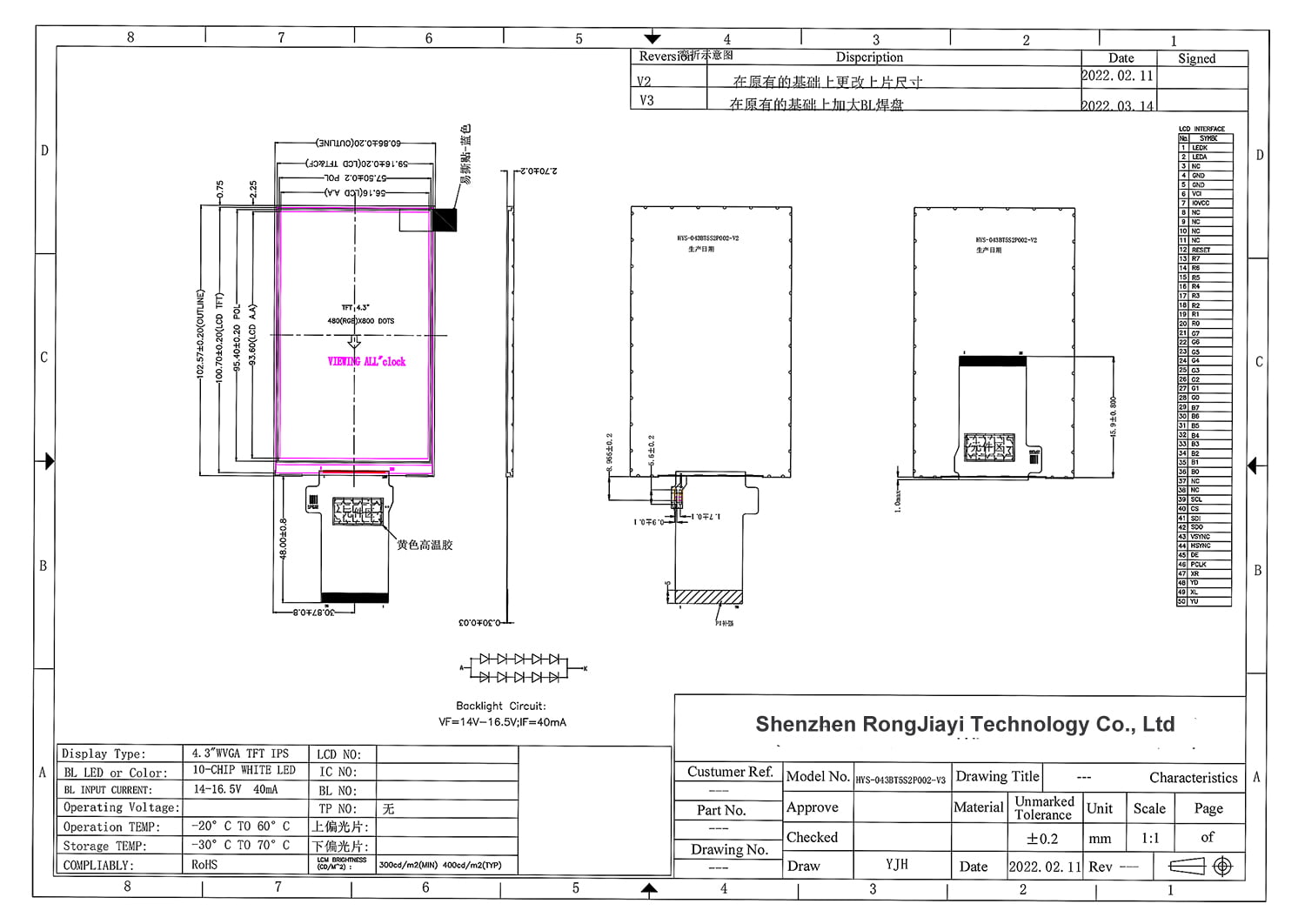

Contact our team for the current datasheet or mechanical drawing.
