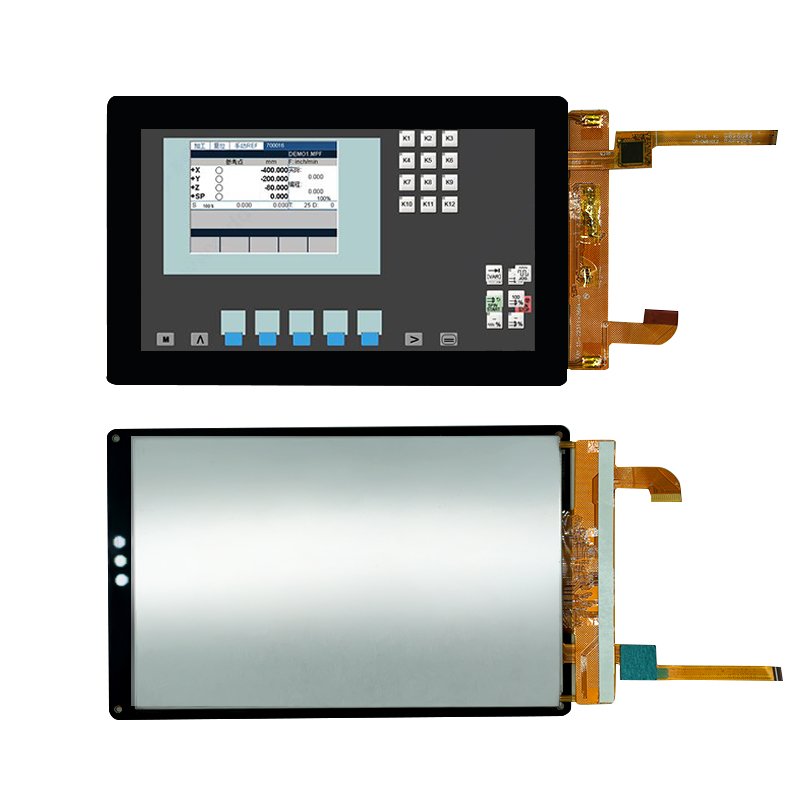

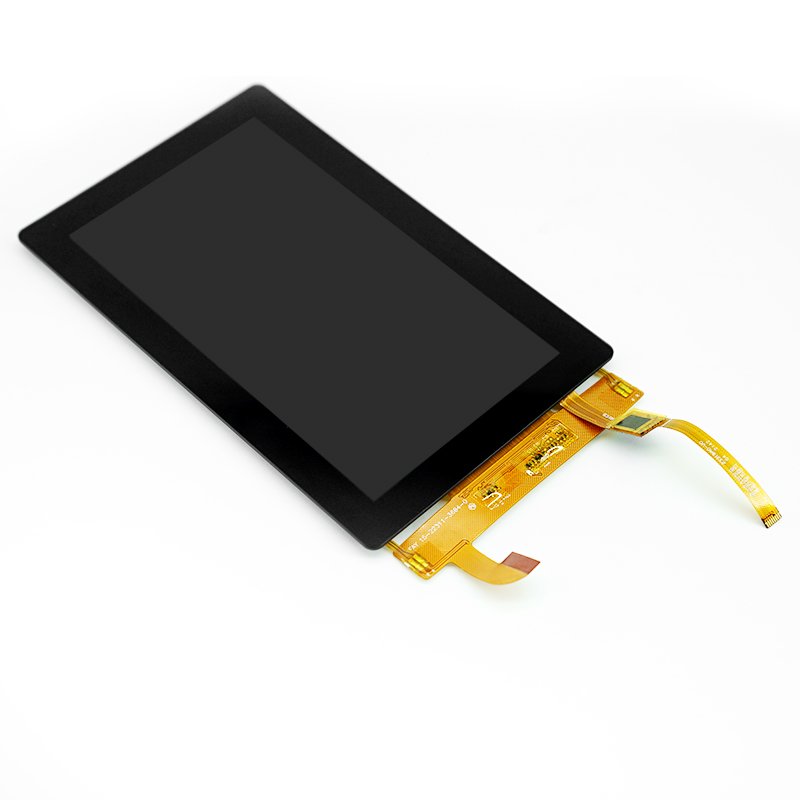

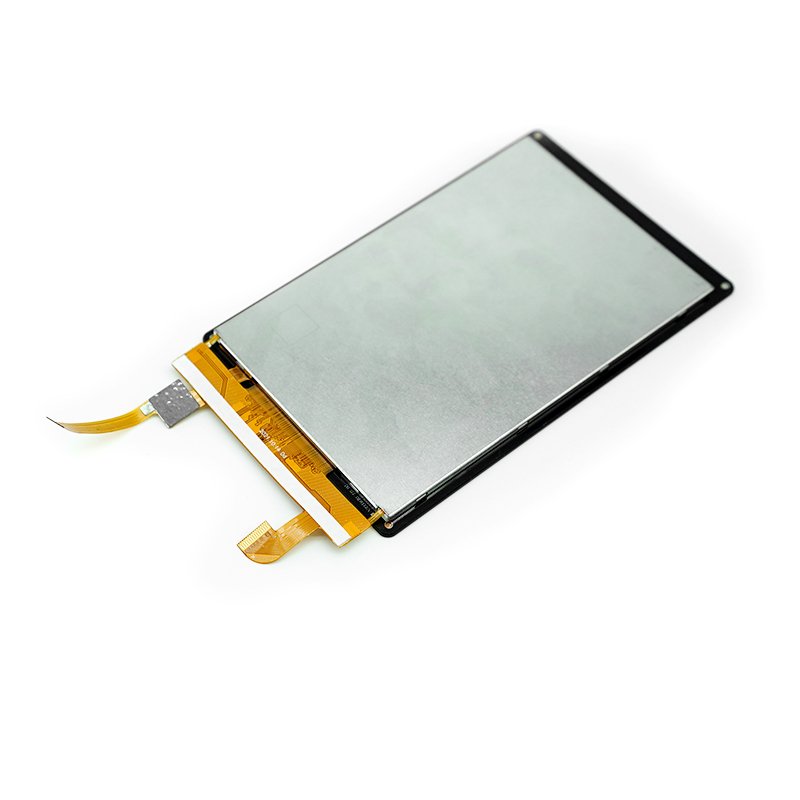

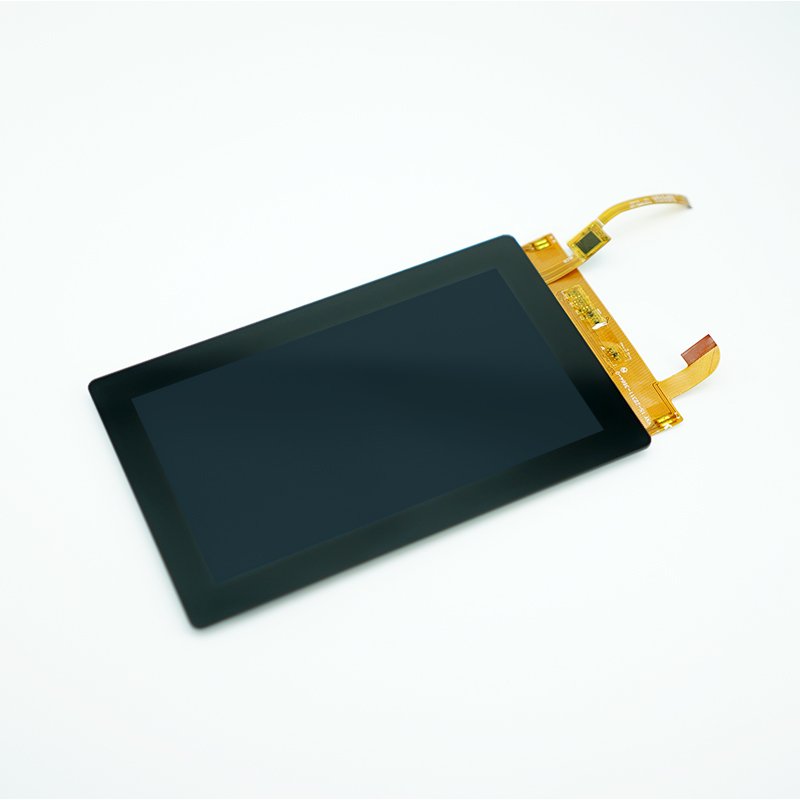

Select a view to inspect the module. Click the main image to enlarge.

Display & embedded solutions

RV050FHM-31-K28Engineering review

5 inch Sunlight Readable TFT LCD Display – 1080*1920 LCD Panel

Size: 5 inch tft lcd module Resolution: 1080*1920 Brightness: 2800 cd/m² Interface: MIPI-4LaneI interface View Angle: Full view Active Area: 61.88(W) ×110.02(L)

Size: 5 inch
Resolution: 1920x1080
Brightness: 2500 cd/m²
Interface: MIPI

Engineering verification

Export contains conflicting size: 5.0 / 5. Verify the source specification.
Export contains conflicting resolution: 1920x1080 / 1080*1920. Verify the source specification.
Export contains conflicting brightness: 2500 / 2800. Verify the source specification.

Designed for integration

Product overview.

This is a high luminance TFT 5 inch square LCD display panel with high resolution of 1080*1920, and MIPI-4LaneI interface, full view lcd panel, application for viewfinder or camera.

Model	RV050FHM-31-K28
Size	5 inch tft lcd screen
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE
Display Format	1080(R,G,B)*1920
Input Data	MIPI-4LaneI interface
View Angle	Full view
Display Colors	16.7M TRUE COLOR
Module Size	75.88(W)×119.47(L)×2.8(T)
Active Area	61.88(W) ×110.02(L)
Pixel Size	0.0573×0.0573
Operating Temperature	-20 to +70 ℃
Storage Temperature	-30 to +80 ℃
LCM Luminance	2800 cd/m²

5 inch 1080*1920 TFT LCD Panel Feature

Unleashing the Power of High Brightness

One of the standout features of the sunlight readable 5-inch TFT LCD screen is its remarkable luminance capability of 2800 nits. This level of brightness significantly surpasses standard LCD screens, making it an ideal choice for applications that require excellent visibility in high ambient light conditions. With this enhanced brightness, the screen minimizes glare and provides users with clear and legible content, even when exposed to direct sunlight.

Crisp Resolution and Immersive Detail

The high resolution of 1080×1920 5-inch TFT LCD screen ensures sharp and detailed visuals. Whether it’s viewing images, videos, or text, the high pixel density brings clarity and depth to the displayed content. This level of resolution enhances user experiences in a wide range of applications, from industrial equipment interfaces to automotive displays and consumer electronics.

Outdoor Applications

The high brightness capability of the 2800nit LCD screen makes it particularly suitable for outdoor applications. Traditionally, direct sunlight can render screens washed out and unreadable. However, with this display module, outdoor signage, outdoor monitor, and information kiosks can provide vivid and eye-catching visuals, ensuring that important information reaches viewers without compromising readability.

Industrial and Medical Applications

In industrial and medical settings, precise visual feedback is crucial for optimal performance and accuracy. The High Brightness 2800nit 5-inch TFT LCD screen meets these requirements by offering exceptional brightness and resolution. It can be incorporated into industrial machinery interfaces, control panels, monitoring systems, medical monitors, diagnostic equipment, and surgical displays, enabling operators and medical professionals to access critical information with clarity and precision.

Future-Proofing Visual Technologies

As display technology continues to advance, the High Brightness 2800nit 5-inch TFT LCD screen stands as a testament to the quest for better visual experiences. Flexible customized ensure this 5 inch tft screen get more clients favors， in the LCD control board side, whatever usual function board or HDMI board, or Android we could do the LCD solution. In the display side, the interface custom, touchscreen solution, or others that customers requirements, we would discuss the future LCD technology with customers.

Key features

Size: 5 inch tft lcd module
Resolution: 1080*1920
Brightness: 2800 cd/m²
Interface: MIPI-4LaneI interface
View Angle: Full view
Active Area: 61.88(W) ×110.02(L)

Technical reference

Specifications.

Values are model-specific. Review document revisions and any verification notes before integration.

Display

Parameter	Value	Unit	Notes
Size(inch)	5.0	—	—
Resolution	1920x1080	—	—
Size	5 inch tft lcd module	—	—
Resolution	1080*1920	—	—
Model	RV050FHM-31-K28	—	—
Size	5 inch tft lcd screen	—	—
LCD Type	AM TFT ,TRANSMISSIVE, NEGATIVE	—	—
Display Format	1080(R,G,B)*1920	—	—
Input Data	MIPI-4LaneI interface	—	—
Module Size	75.88(W)×119.47(L)×2.8(T)	—	—
Pixel Size	0.0573x0.0573	—	—

Optical

Parameter	Value	Unit	Notes
Brightness (cd/m²)	2500	—	—
Brightness	2800 cd/m²	—	—
View Angle	Full view	—	—
Display Colors	16.7M TRUE COLOR	—	—
LCM Luminance	2800 cd/m²	—	—

Mechanical

Parameter	Value	Unit	Notes
Active Area	61.88(W) ×110.02(L)	—	—

Environmental

Parameter	Value	Unit	Notes
Wide Temperature	Yes	—	—
Operating Temperature	-20 to +70 ℃	—	—
Storage Temperature	-30 to +80 ℃	—	—

Interface & pins

Parameter	Value	Unit	Notes
Interface	MIPI	—	—
Interface	MIPI-4LaneI interface	—	—

Drawings & technical resources

Product documents.

Contact our team for the current datasheet or mechanical drawing.
