RV069LFM-350-40Engineering review

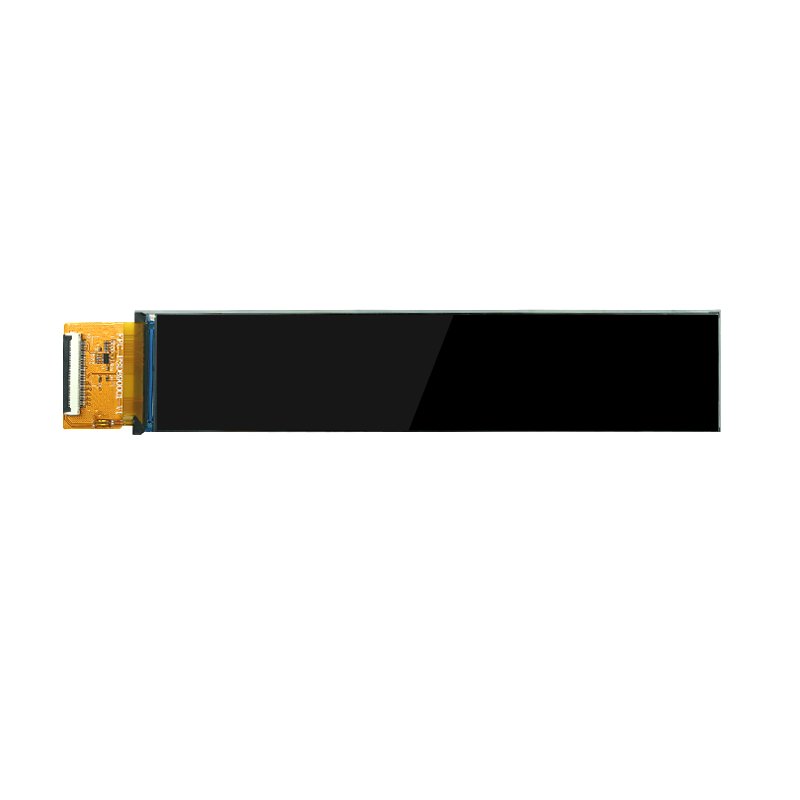

6.9 inch 280*1424 Bar LCD Display, MIPI Interface, 40Pin

Size: 6.9 inch stretched bar lcd panel Interface: MIPI Resolution: 280(RGB)x1424 Driver IC: ST7703I LCD AA: 33.60 (H)*170.88 (V) mm

Size: 6.9 inch
Resolution: 280x1424
Brightness: 350 cd/m²
Interface: MIPI

Engineering verification

Export contains conflicting size: 6.9 / 6.90. Verify the source specification.

Designed for integration

Product overview.

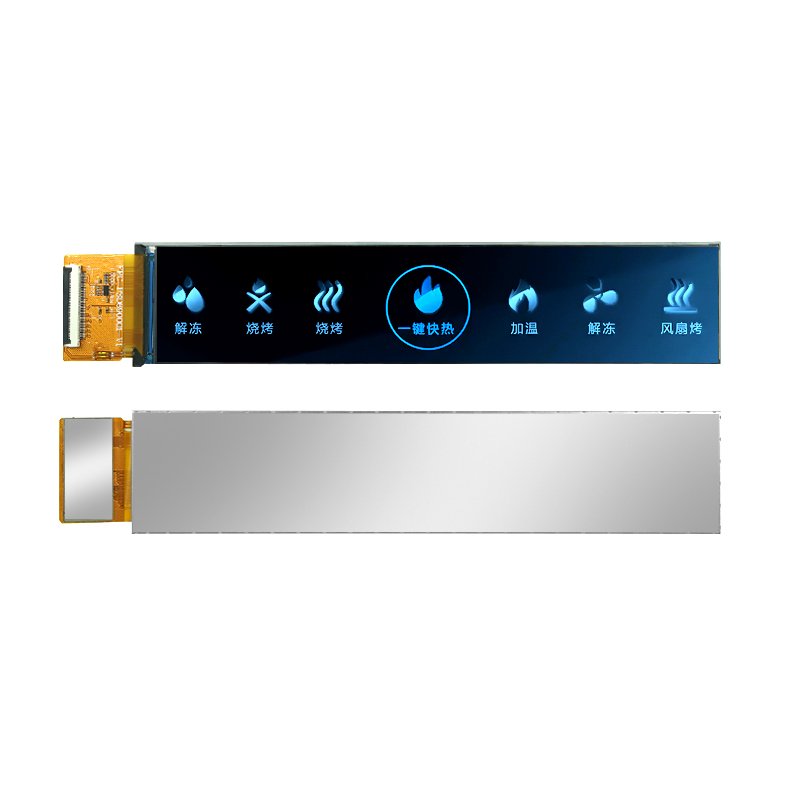

RV069LFM-350-40 is an innovative stretched bar lcd display panel, slim TFT, LED backlight LCD display. It provides LCD module with 6.9 inch LCD size for digital signage or color control panel for Refrigerators, ovens, microwave ovens, air fryers, range hoods, coffee machines, etc.

Model	RV069LFM-350-40
LCD size	6.90 inch TFT bar lcd display panel
Display Mode	Normally Black
Resolution	280(RGB)x1424
Pixel pitch	40(H) x3 x 120(V)
Pixel Arrangement	RGB Vertical Stripe
Viewing direction	ALL
Module outline dimension	38.20 (H)181.47(V)3.40(D)
LCD AA	33.60 (H)*170.88 (V)
Colors	16.7M
Driver IC	ST7703I
Interface	MIPI
Backlight	White LED
Operating Temperature	20℃~ +70℃
Storage Temperature	30℃~ +80℃
Pin	40pin

Key features

Size: 6.9 inch stretched bar lcd panel
Interface: MIPI
Resolution: 280(RGB)x1424
Driver IC: ST7703I
LCD AA: 33.60 (H)*170.88 (V) mm

Technical reference

Specifications.

Values are model-specific. Review document revisions and any verification notes before integration.

Display

Parameter	Value	Unit	Notes
Size(inch)	6.9	—	—
Resolution	280x1424	—	—
Size	6.9 inch stretched bar lcd panel	—	—
Resolution	280(RGB)x1424	—	—
LCD AA	33.60 (H)*170.88 (V) mm	—	—
Model	RV069LFM-350-40	—	—
LCD size	6.90 inch TFT bar lcd display panel	—	—
Display Mode	Normally Black	—	—
Pixel pitch	40(H) x3 x 120(V)	—	—
Pixel Arrangement	RGB Vertical Stripe	—	—
LCD AA	33.60 (H)*170.88 (V)	—	—
Backlight	White LED	—	—

Optical

Parameter	Value	Unit	Notes
Brightness (cd/m²)	350	—	—
Viewing direction	ALL	—	—
Colors	16.7M	—	—

Mechanical

Parameter	Value	Unit	Notes

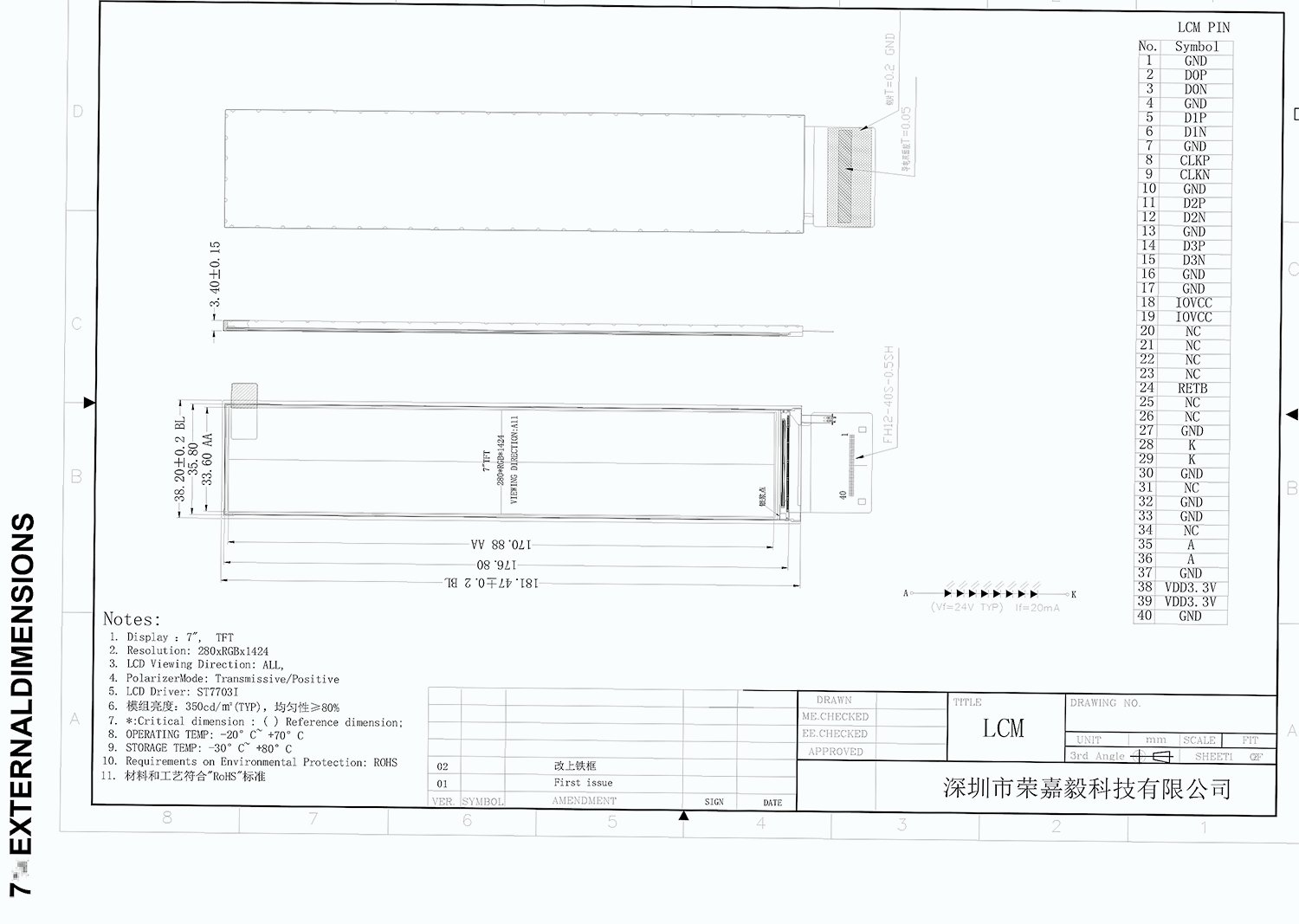

Module outline dimension	38.20 (H)181.47(V)3.40(D)	—	—

Environmental

Parameter	Value	Unit	Notes
Operating Temperature	20℃~ +70℃	—	—
Storage Temperature	30℃~ +80℃	—	—

Interface & pins

Parameter	Value	Unit	Notes
Interface	MIPI	—	—
Driver IC	ST7703I	—	—

Drawings & technical resources

Product documents.

Contact our team for the current datasheet or mechanical drawing.
