RV042HDM-1000-30Active model
4.16-Inch High-brightness IPS LCD Module – 1280×960 Resolution, MIPI Interface
Size: 4.16 inch TFT LCD Resolution: 1280 × 960 pixels Interface: MIPI, RGB vertical stripe View Angle: All-direction (wide viewing)
- Size
- 4.16 inch
- Resolution
- 1280 × 960 pixels
- Interface
- MIPI, RGB VERTICAL STRIPE
- Touch
- Optional
Designed for integration
Product overview.

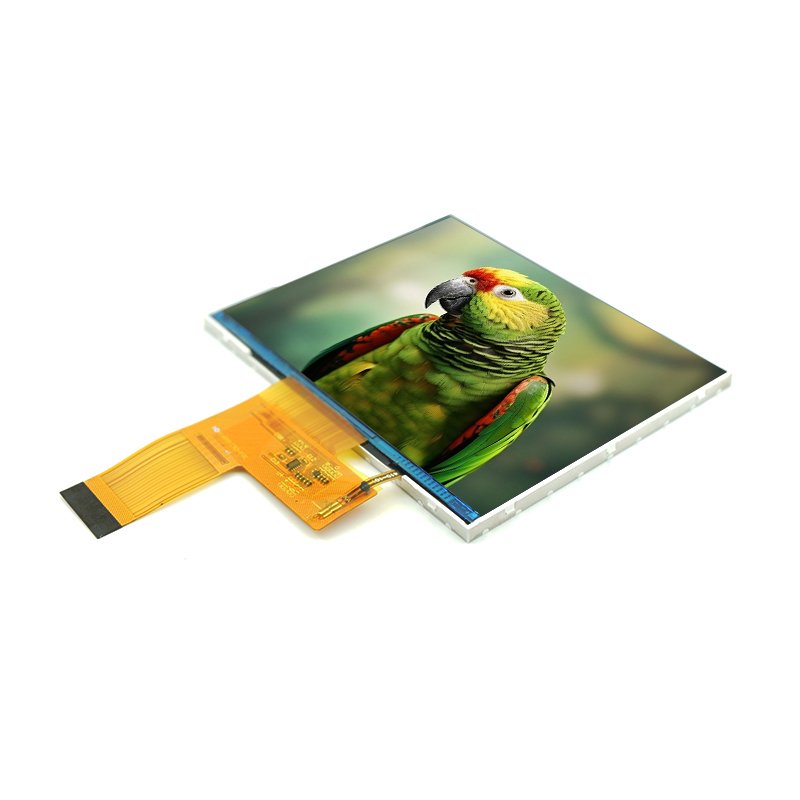

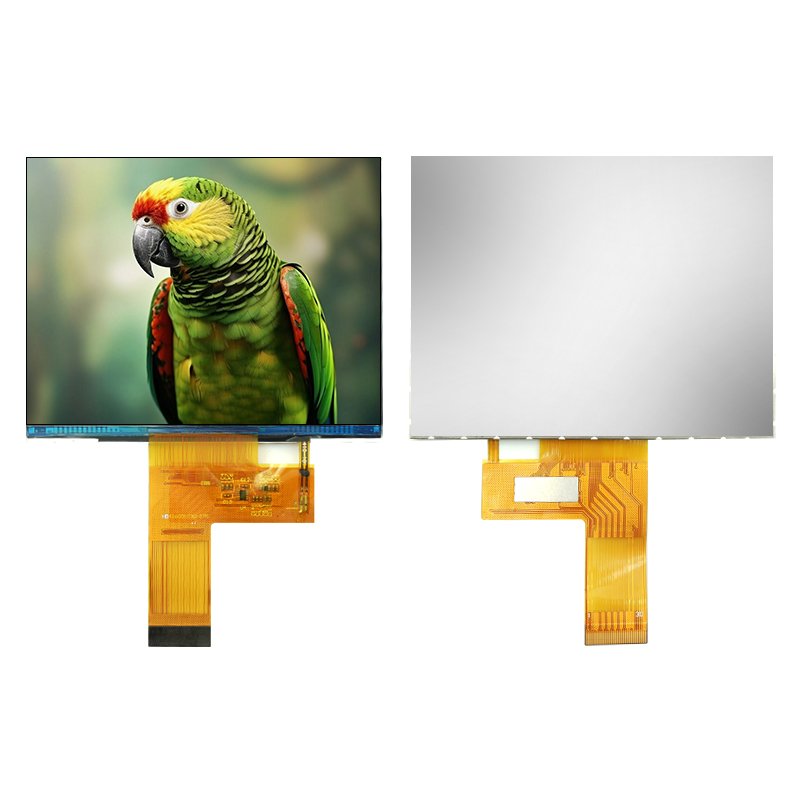

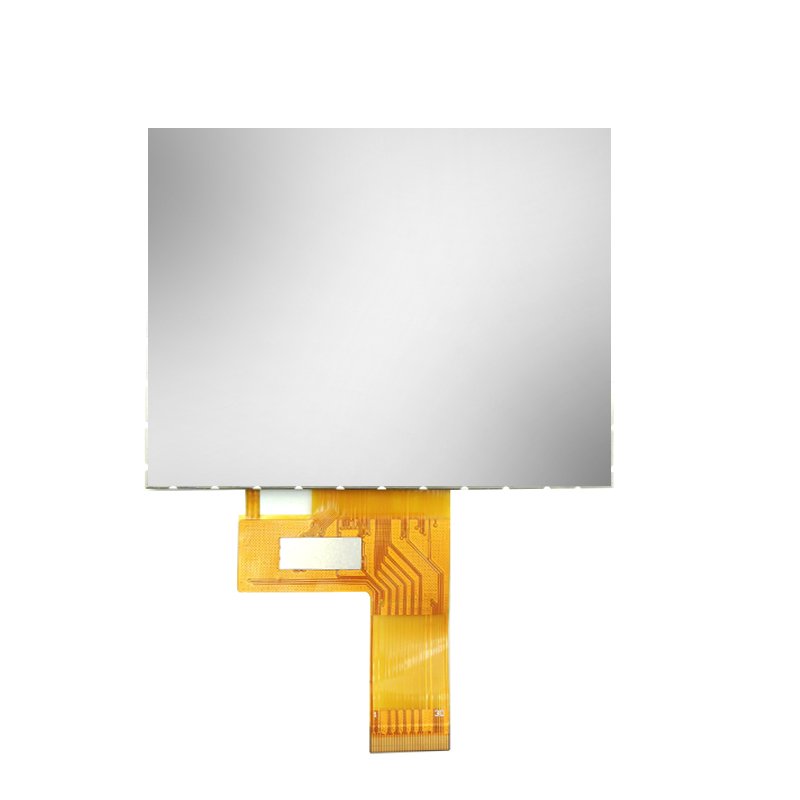

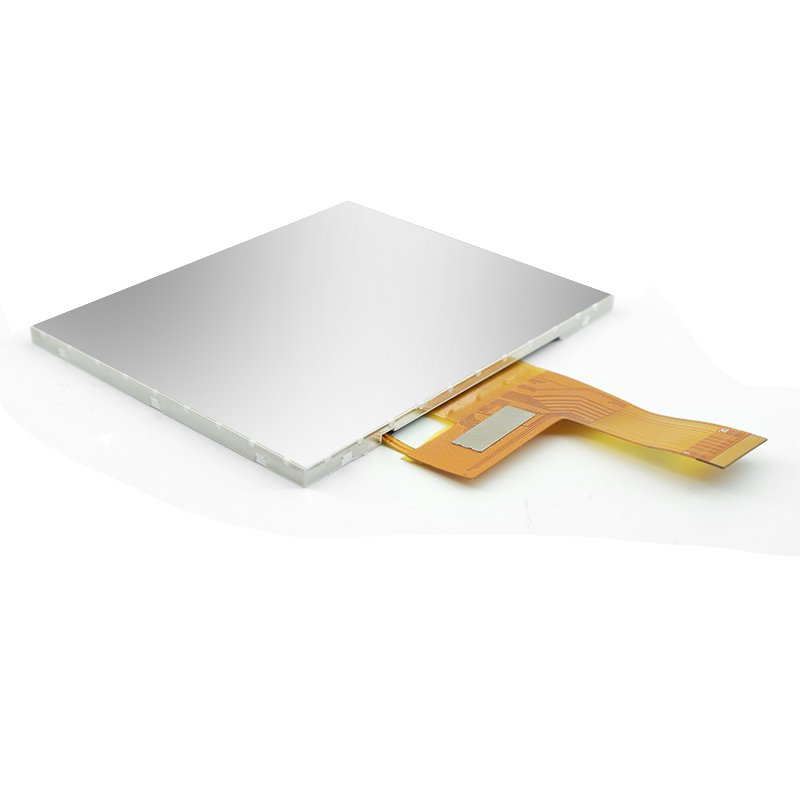

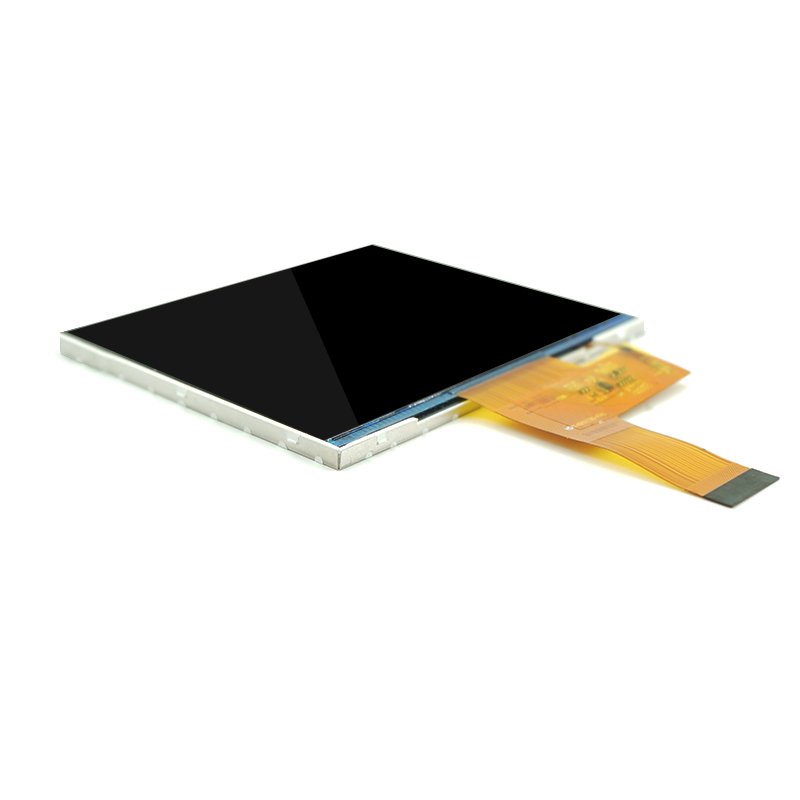

The RJY 4.16-inch TFT LCD module is a high-performance display solution tailored for compact devices that require sharp visuals, full viewing angles, and efficient interface connectivity. With a resolution of 1280×960 pixels and MIPI interface, this module is ideal for advanced handheld equipment, medical visualization systems, smart industrial controllers, and next-generation HMI interfaces.
| Parameter | Specification |
|---|---|
| LCD Size | 4.16 inch (Diagonal) |
| Display Mode | Normally Black |
| Resolution | 1280(RGB) × 960 pixels |
| Pixel Pitch | 0.066(H) × 0.066(V) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Viewing Angle | All viewing directions (Ultra-wide) |
| Module Outline | 90.86(H) × 72.84(V) × 3.8(D) mm |
| Active Area (AA) | 48.6(H) × 64.8(V) mm |
| Colors | 16.7 million colors (8-bit depth) |
| Interface | MIPI (High-speed serial) |
| Driver IC | GH7005-01 |
| Backlight | White LED |
| Touch Panel | Capacitive touch (optional) |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –30°C to +80°C |
| Compliance | RoHS |
Features & Benefits
-
High Pixel Density: With a pixel pitch of 0.066mm, this module delivers crisp, sharp imagery—ideal for rendering fine graphics and data-dense user interfaces.
-
All-View Angle IPS-Like Performance: Ensures clear readability from any orientation, suitable for devices used in rotation or multi-user interaction scenarios.
-
MIPI Interface Support: The embedded MIPI interface enables high-speed data transmission while keeping connector and layout complexity low—making integration with modern MCUs or SoCs simple and efficient.
-
Compact Yet Robust Form Factor: Slim profile (3.8mm) allows tight integration into handheld or embedded environments without sacrificing durability.
-
Stable Outdoor Performance: With operating temperatures from –20°C to +70°C, the panel is designed to function reliably across varying industrial and semi-outdoor conditions.
-
Optional Touch Panel Integration: Capacitive touch support available for enhanced interactivity, gesture control, and UI flexibility.
Recommended Applications
-
Smart home central control units
-
Medical imaging terminals
-
Industrial handheld testers and data loggers
-
Compact HMI interfaces
-
Portable monitoring devices
-
Advanced consumer electronics
Customization Support
Need modifications for your application?
RJY Display provides:
-
FPC interface tuning (direction, pin count)
-
Cover lens & touch panel lamination (custom logo, print, color)
-
Optical bonding for anti-reflection and outdoor readability
-
Custom bracket or frame integration
Key features
- Size: 4.16 inch TFT LCD
- Resolution: 1280 × 960 pixels
- Interface: MIPI, RGB vertical stripe
- View Angle: All-direction (wide viewing)
Technical reference
Specifications.
Values are model-specific. Review document revisions and any verification notes before integration.
Display
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Size | 4.16 inch TFT LCD | — | — |
| Resolution | 1280 × 960 pixels | — | — |
| LCD Size | 4.16 inch (Diagonal) | — | — |
| Display Mode | Normally Black | — | — |
| Resolution | 1280(RGB) × 960 pixels | — | — |
| Pixel Pitch | 0.066(H) × 0.066(V) mm | — | — |
| Pixel Arrangement | RGB Vertical Stripe | — | — |
| Backlight | White LED | — | — |
| Compliance | RoHS | — | — |
Optical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| View Angle | All-direction (wide viewing) | — | — |
| Viewing Angle | All viewing directions (Ultra-wide) | — | — |
| Colors | 16.7 million colors (8-bit depth) | — | — |

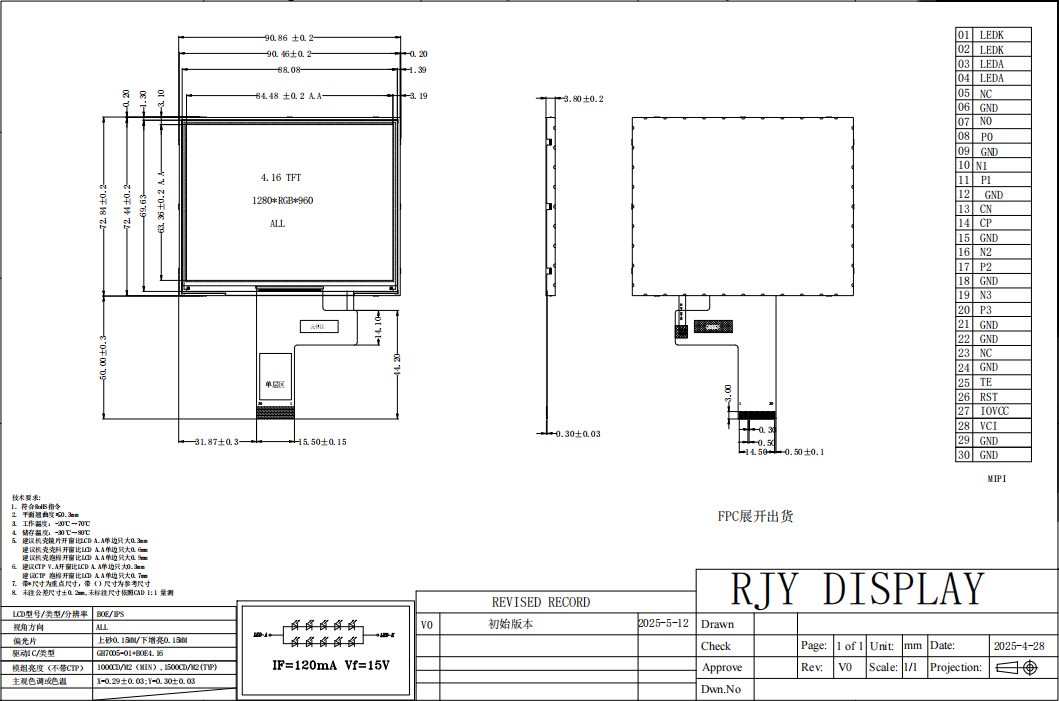

Mechanical
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Module Outline | 90.86(H) × 72.84(V) × 3.8(D) mm | — | — |
| Active Area (AA) | 48.6(H) × 64.8(V) mm | — | — |
Touch
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Touch Panel | Capacitive touch (optional) | — | — |
Environmental
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Operating Temperature | –20°C to +70°C | — | — |
| Storage Temperature | –30°C to +80°C | — | — |
Interface & pins
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Interface | MIPI, RGB vertical stripe | — | — |
| Interface | MIPI (High-speed serial) | — | — |
| Driver IC | GH7005-01 | — | — |
No matching parameters.
Drawings & technical resources
Product documents.
Contact our team for the current datasheet or mechanical drawing.
