Круглый ЖК-дисплей 8 дюймов – Высокое разрешение 1080*1080, интерфейс MIPI

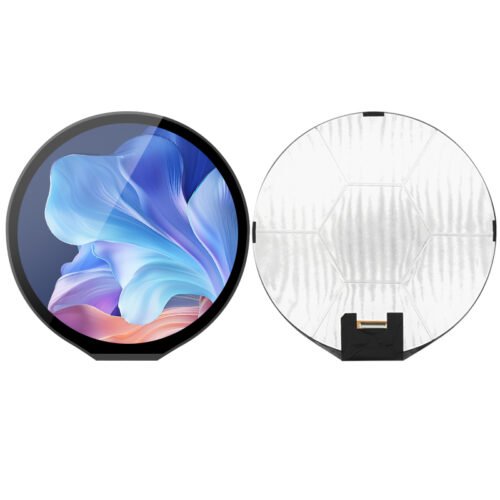

Circular Design with Generous Viewing Area

The display features an outline size of 219.3mm (H) × 224.02mm (V) × 4.0mm (T), offering a generous active display area of 208.1mm × 208.1mm. Its 8-inch round form factor stands out from traditional rectangular screens, enabling product designers to create innovative and visually striking user interfaces.

Full HD Resolution for Crystal-Clear Detail

Благодаря 1080(H) × 3(RGB) × 1080(V) pixels and a fine pixel pitch of 192.6µm, this display delivers true Full HD clarity in a circular format. The RGB stripe pixel arrangement ensures accurate color reproduction, supporting an impressive 16.7 million colors for rich, lifelike visuals.

High Contrast and Wide Viewing Angles

Built with a Normally Black display mode, the panel achieves a typical contrast ratio of 1000:1, producing deep blacks and vivid colors. Its 85°/85°/85°/85° viewing angle performance ensures content remains sharp and consistent from any perspective — ideal for dashboard displays, instrumentation panels, and public information systems.

Smooth Visual Performance

With a maximum response time of 35ms, the display offers smooth rendering for animations, UI transitions, and moderate video playback. Its free gray inversion viewing direction ensures uniform image quality without distortion or color shifting.

Seamless MIPI Interface Connectivity

The panel is equipped with a MIPI interface and powered by the FT8006S-AA driver IC, ensuring high-speed data transmission with low power consumption. This makes it compatible with a wide range of modern embedded systems and SoCs.

Balanced Brightness for Indoor and Semi-Outdoor Use

Delivering a luminance of 300 cd/m², the display is well-suited for indoor and semi-outdoor environments, providing clear visibility without excessive power drain. The surface treatment is NA, allowing integrators to apply their preferred cover glass or anti-glare coatings as needed.

Target Applications

Международный форум по аккредитации (IAF) 8-inch round TFT display is an excellent choice for:

• Automotive digital instrument clusters

• Marine navigation and control systems

• Industrial control interfaces

• Medical diagnostic equipment

• High-end consumer electronics

• Public information kiosks and smart devices

Availability

The new 8-inch round TFT LCD display is now available for sampling and mass production orders. Our engineering team provides full technical documentation, integration support, and customization services to help customers bring their product concepts to life.
