Quad-core AI Processor – RK3562 with Cortex-A53 up to 2.0 GHz, ARM G52 GPU, integrated NPU delivering 1.0 TOPS AI-Ready – Supports TensorFlow, Caffe, MxNet with built-in AI development tools and cross-platform APIs 24/7 Reliability – Optimized hardware and software design ensures stable, unattended operation Highly Integrated – Ethernet, Wi-Fi, audio, IR, LVDS/MIPI display, sensors, camera support in a compact ultra-thin board Flexible Expansion – Rich interfaces including USB, RS232/RS485, UART, I2C, I/O, PoE, relay, and light control for diverse application
Designed for integration

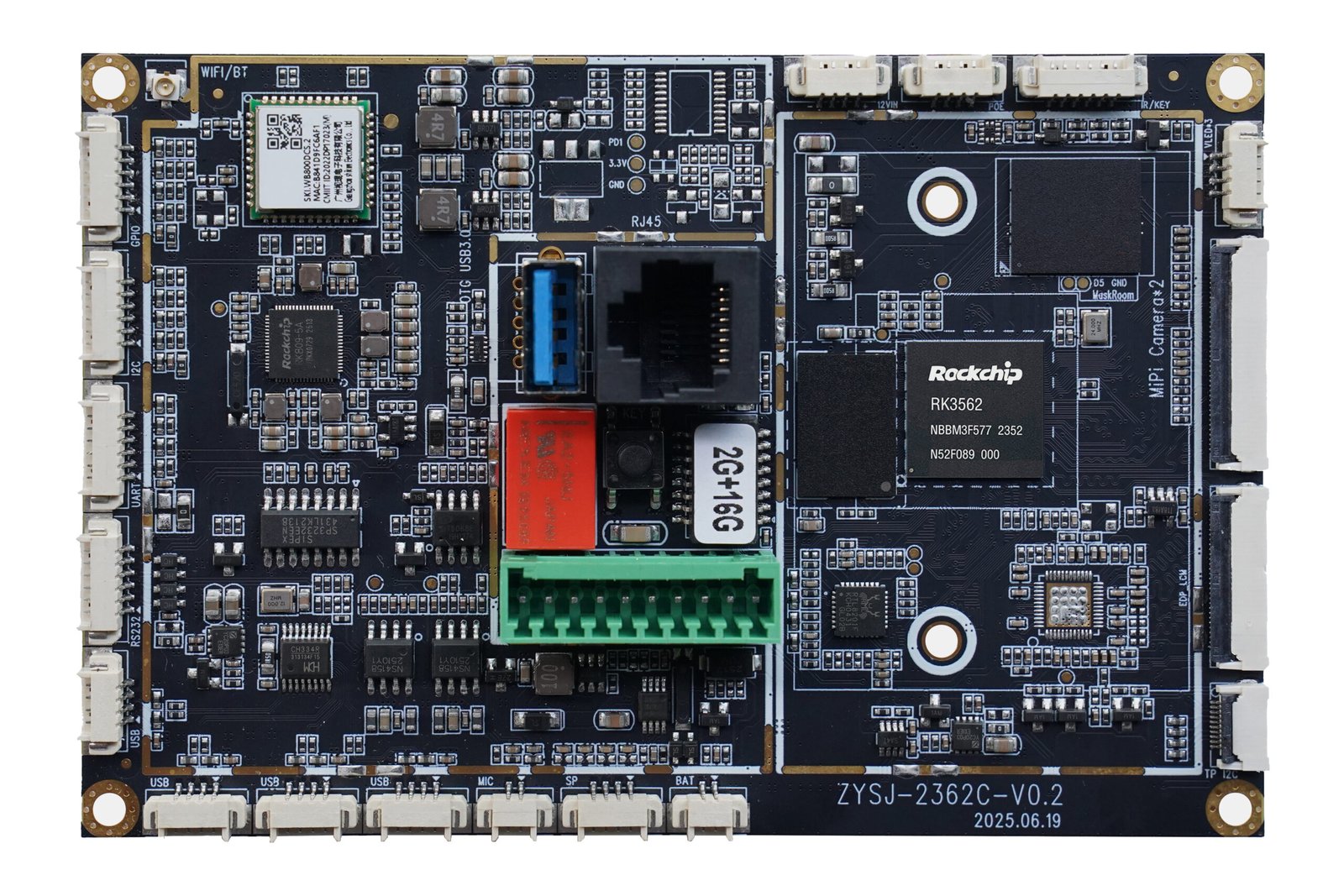

The RJY-2362C is a high-performance intelligent mainboard powered by the Rockchip RK3562 AI processor with an integrated Neural Processing Unit (NPU). It supports Android 13 and Linux operating systems. The RK3562 is built on a 22nm process and features a quad-core ARM Cortex-A53 architecture (ARM v8.2-A, 64-bit), with clock speeds up to 2.0 GHz. The board includes an ARM G52 2EE GPU and a built-in NPU delivering up to 1.0 TOPS of AI performance, supporting multiple AI frameworks and development tools.
It provides rich display options including LVDS 1080P output and MIPI display interfaces, alongside versatile connectivity such as Ethernet, Wi-Fi, USB, RS232, RS485, I/O expansion, I2C, MIPI camera, infrared remote control, and gravity sensing. With its powerful quad-core AI chip and highly integrated design, the ZYSJ-2362C is widely adopted in applications such as smart firefighting, smart construction sites, industrial inspection, autonomous vehicles, smart agriculture, intelligent sorting, AI robotics, cloud servers, intelligent NVRs, metaverse systems, ARM PCs, security, healthcare, transportation, finance, industrial control, education, and retail. Its platform-based hardware and intelligent software ensure seamless human-computer and network-device interaction.
| Category | Specification |
|---|---|
| Operating System | Android 12.0 / Debian / Ubuntu 20.04 / UOS / Kylin / HarmonyOS etc. |
| Processor (CPU) | Rockchip RK3588 (8nm LPP), ARM 64-bit octa-core CPU, 4×Cortex-A76 + 4×Cortex-A55, up to 2.4 GHz |
| GPU | Mali-G610 MP4 quad-core, supports OpenGLES3.2, OpenVG1.1, OpenCL2.2, 450 GFLOPS |
| NPU (AI) | Built-in Neural Processing Unit, supports IN4/IN8/INT16/FP16, 6.0 TOPS, compatible with Caffe/MxNet/TensorFlow/TF Lite/ONNX/Darknet, AI development tools included |
| Memory (RAM) | LPDDR4 4GB (options: 8GB/16GB/32GB) |
| Storage | eMMC 32GB (options: 64GB/128GB/256GB), SATA HDD expansion |
| Expansion | PCIe M.2 4 lanes, supports M.2 2242/2260 size modules |
| Networking | Dual Gigabit Ethernet, 2.4G/5G dual-band Wi-Fi (Wi-Fi6 optional), Bluetooth 5.0, 4G LTE (optional), 5G NR (optional) |
| GPS | Built-in GPS/BD module, sensitivity -162dBm, frequency 1575.42MHz, 20 channels, accuracy <10 m (optional) |
| Display Interfaces | 1×eDP 1.3 (4 lanes, 3.3V/5V), 1×LVDS (single/dual, 6/8-bit, 1080P60Hz, 3.3V/5V/12V), 1×HDMI 2.1 output 8K60Hz, 1×HDMI 2.0 input 4K60Hz, 1×MIPI output 5.7Gbps, multi-display support |
| Backlight & Audio | Onboard 12V backlight, 1×audio output (2×18W 4R), 1×headphone out, 2×microphone inputs |
| Camera | 1×MIPI camera input (up to 48MP, optional), USB camera support (optional) |
| USB Ports | 6×USB 2.0 HOST, 1×USB 2.0 CPU, 1×USB 3.0 CPU, 1×USB 3.0 OTG |
| PCIe / SIM | 1×Mini PCIe for 4G/5G LTE module, 1×SIM card slot, supports eSIM |
| IR | 1×infrared receiver, supports remote control |
| LED & Buttons | 1×power LED (red), 1×system LED (blue blinking), reset/power/upgrade buttons |
| Serial & I/O Expansion | 4×RS232, 3×RS485, 2×UART (TTL), 1×CAN, 1×I2C, 1×AD, 8×I/O expansion, 4×5/12V high-current ports |
| Fan / Light Interfaces | Supports 5V/12V fan and light control |
| Power Supply | Input AC 100–240V 50–60Hz, output DC 12V/2A, supports auto power-on or key press startup |
| Operating Environment | Operating Temp: -10 |
| Dimensions | 160×105×20 mm |
| Multimedia | Supports 8K 60fps H.265/H.264 decoding, 8K 30fps H.265/H.264 encoding, same-codec simultaneous decoding/encoding, up to 32×1080P30fps decoding and 16×1080P60fps encoding |
| System Features | Multi-language support, standard Android keyboard, optional third-party input methods, native Android with root access, customizable for product development |
| System Management | Real-time remote monitoring, auto system recovery, 7×24h unattended operation, OTA remote upgrade, Wi-Fi Display, software watchdog (hardware optional) |
| Screen Rotation | Supports 0°/90°/180°/270° manual rotation and gravity sensor auto-rotation (optional) |
Technical reference
Values are model-specific. Review document revisions and any verification notes before integration.
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Processor (CPU) | Rockchip RK3588 (8nm LPP), ARM 64-bit octa-core CPU, 4×Cortex-A76 + 4×Cortex-A55, up to 2.4 GHz | — | — |
| GPU | Mali-G610 MP4 quad-core, supports OpenGLES3.2, OpenVG1.1, OpenCL2.2, 450 GFLOPS | — | — |
| NPU (AI) | Built-in Neural Processing Unit, supports IN4/IN8/INT16/FP16, 6.0 TOPS, compatible with Caffe/MxNet/TensorFlow/TF Lite/ONNX/Darknet, AI development tools included | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Memory (RAM) | LPDDR4 4GB (options: 8GB/16GB/32GB) | — | — |
| Storage | eMMC 32GB (options: 64GB/128GB/256GB), SATA HDD expansion | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Operating System | Android 12.0 / Debian / Ubuntu 20.04 / UOS / Kylin / HarmonyOS etc. | — | — |
| System Features | Multi-language support, standard Android keyboard, optional third-party input methods, native Android with root access, customizable for product development | — | — |
| System Management | Real-time remote monitoring, auto system recovery, 7×24h unattended operation, OTA remote upgrade, Wi-Fi Display, software watchdog (hardware optional) | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Display Interfaces | 1×eDP 1.3 (4 lanes, 3.3V/5V), 1×LVDS (single/dual, 6/8-bit, 1080P60Hz, 3.3V/5V/12V), 1×HDMI 2.1 output 8K60Hz, 1×HDMI 2.0 input 4K60Hz, 1×MIPI output 5.7Gbps, multi-display support | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Expansion | PCIe M.2 4 lanes, supports M.2 2242/2260 size modules | — | — |
| Networking | Dual Gigabit Ethernet, 2.4G/5G dual-band Wi-Fi (Wi-Fi6 optional), Bluetooth 5.0, 4G LTE (optional), 5G NR (optional) | — | — |
| GPS | Built-in GPS/BD module, sensitivity -162dBm, frequency 1575.42MHz, 20 channels, accuracy <10 m (optional) | — | — |
| USB Ports | 6×USB 2.0 HOST, 1×USB 2.0 CPU, 1×USB 3.0 CPU, 1×USB 3.0 OTG | — | — |
| PCIe / SIM | 1×Mini PCIe for 4G/5G LTE module, 1×SIM card slot, supports eSIM | — | — |
| IR | 1×infrared receiver, supports remote control | — | — |
| LED & Buttons | 1×power LED (red), 1×system LED (blue blinking), reset/power/upgrade buttons | — | — |
| Serial & I/O Expansion | 4×RS232, 3×RS485, 2×UART (TTL), 1×CAN, 1×I2C, 1×AD, 8×I/O expansion, 4×5/12V high-current ports | — | — |
| Fan / Light Interfaces | Supports 5V/12V fan and light control | — | — |
| Operating Environment | Operating Temp: -1070 °C, Storage Temp: -2070 °C, Storage Humidity: 10%-80% | — | — |
| Multimedia | Supports 8K 60fps H.265/H.264 decoding, 8K 30fps H.265/H.264 encoding, same-codec simultaneous decoding/encoding, up to 32×1080P30fps decoding and 16×1080P60fps encoding | — | — |
| Screen Rotation | Supports 0°/90°/180°/270° manual rotation and gravity sensor auto-rotation (optional) | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Backlight & Audio | Onboard 12V backlight, 1×audio output (2×18W 4R), 1×headphone out, 2×microphone inputs | — | — |
| Camera | 1×MIPI camera input (up to 48MP, optional), USB camera support (optional) | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Power Supply | Input AC 100–240V 50–60Hz, output DC 12V/2A, supports auto power-on or key press startup | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Dimensions | 160×105×20 mm | — | — |
No matching parameters.
Board-level integration
Confirm pin assignments, firmware compatibility and the actual board configuration before connection.
Drawings & technical resources
No verified board files are published yet. Request the hardware manual, pin definitions, schematics and OS-specific BSP / SDK from our engineering team.
