High Performance: RK3588S octa-core CPU (Cortex-A76 + A55) up to 2.4 GHz, Mali-G610 GPU, integrated NPU (6.0 TOPS) AI Support: Compatible with TensorFlow, Caffe, MxNet, PyTorch; supports Android NN API and RKNN API Stable & Reliable: Optimized hardware and software for 24/7 unattended operation High Integration: Built-in Gigabit Ethernet, Wi-Fi/Bluetooth, HDMI, LVDS, eDP, MIPI, audio, IR, sensors Expandable: Multiple USB ports, RS232/RS485, UART, CAN, I2C, GPIO, AD interface for peripherals
Manufacturer model/SKU was not supplied; RJY-WC-43795 is an internal catalog reference.
Designed for integration

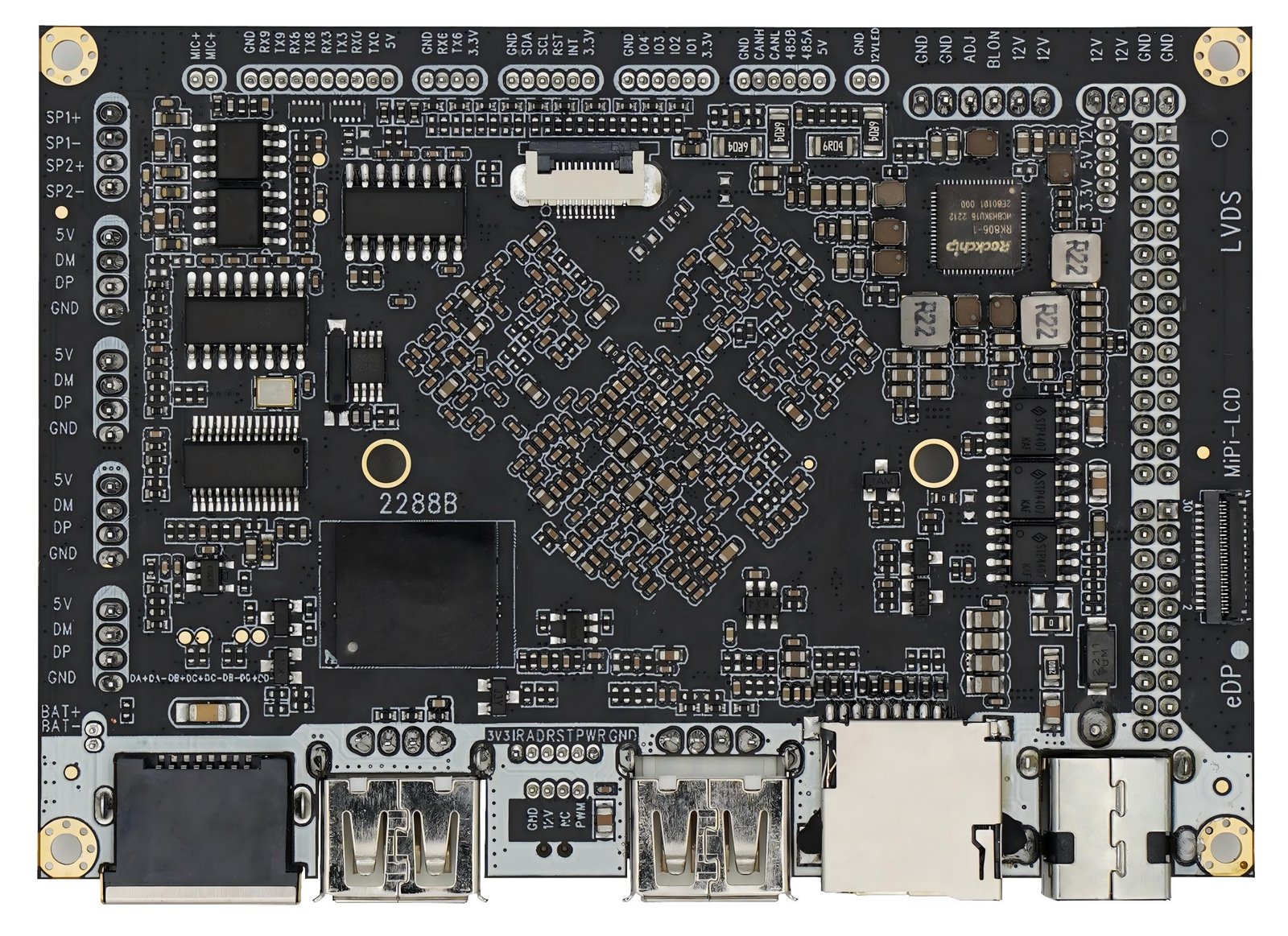

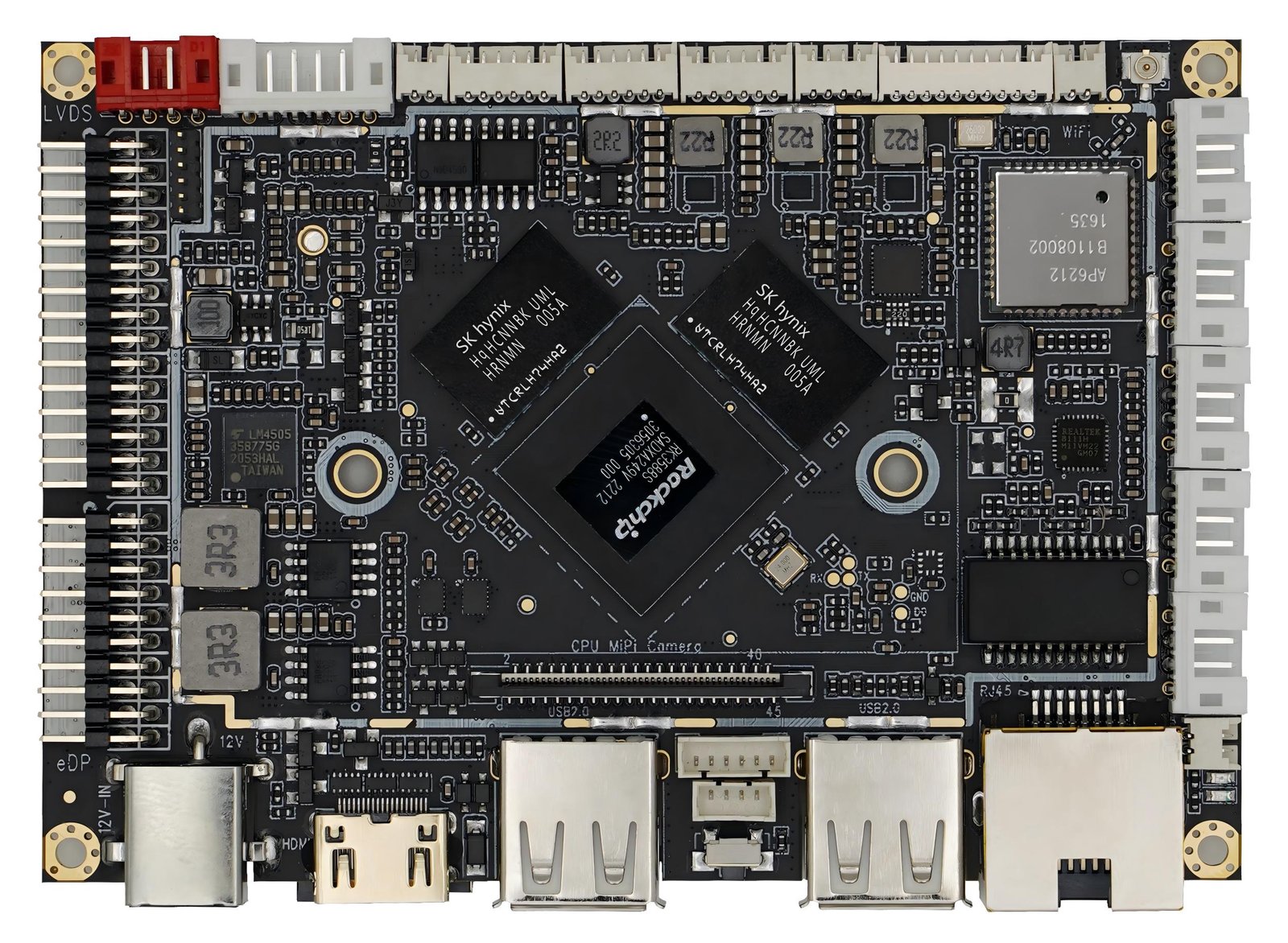

The RJY-2288B high-performance motherboard is powered by Rockchip’s next-generation flagship RK3588S AIoT processor, supporting Android 12.0, Linux, Ubuntu 20.04, and other operating systems. The RK3588S is built on 8nm LP process technology and features an octa-core 64-bit CPU with a Cortex-A76 + A55 architecture, reaching a maximum frequency of 2.4 GHz. It delivers exceptional general-purpose computing performance.
The GPU is a high-end quad-core Mali-G610, and the CPU integrates an AI Neural Processing Unit (NPU) supporting IN4 / IN8 / INT16 mixed-precision computation, achieving up to 6.0 TOPS. The platform supports multiple AI development tools and interfaces, enabling seamless integration with frameworks such as TensorFlow, Caffe, MxNet, PyTorch, and provides APIs including Android NN API, RKNN cross-platform API, and TensorFlow development interfaces.
This motherboard supports multi-screen independent display, LVDS 1080P output, eDP and MIPI display interfaces, and HDMI 8K output. It also offers a rich set of interfaces and features, including Gigabit Ethernet, Wi-Fi/Bluetooth, USB expansion, gravity sensor, CAN, RS232/RS485, I/O expansion, fill light, I2C expansion, MIPI camera input, and infrared remote control.
With its powerful octa-core AI processor and extensive connectivity, the ZYSJ-2288B is ideal for applications in AI robotics, cloud servers, smart NVRs, intelligent cockpits, ARM PCs, facial payment devices, security, medical, transportation, finance, industrial control, smart education, and intelligent retail. Its combination of hardware platformization and software intelligence enables an optimal human-machine interaction experience and seamless integration with networked devices.
| Category | Specification |
|---|---|
| Operating System | Android 12.0 / Linux / Ubuntu 20.04 |
| Processor (CPU) | Rockchip RK3588S (8nm LPP)Octa-core 64-bit CPU: 4 × Cortex-A76 + 4 × Cortex-A55, up to 2.4 GHz |
| Graphics (GPU) | Mali-G610 MP4 (quad-core)Supports OpenGL ES 3.2, OpenVG 1.1, OpenCL 2.2, 450 GFLOPS |
| Neural Network Processor (NPU) | Supports IN4 / IN8 / INT16 / FP16 computationUp to 6.0 TOPSCompatible with Caffe, MxNet, TensorFlow, TFLite, ONNX, DarknetProvides AI development tools and fast model conversion |
| Memory (RAM) | LPDDR4 4GB (optional 8GB / 16GB / 32GB) |
| Storage | eMMC 32GB (optional 64GB / 128GB / 256GB)TF Card expansion (optional) |
| Network | 1 × Ethernet 10/100/1000 MbpsWi-Fi 2.4 GHz 802.11b/g/n (5 GHz optional)Bluetooth V2.1+EDR / 3.0 / 3.0+HS / 4.1 / 4.2 / BLE |
| Display & Video | 1 × eDP 1.3 (4 lanes, 5.4 Gbps, 3.3V/5V)1 × LVDS (single/dual, 6/8-bit, 1080P60, 3.3V/5V/12V)1 × HDMI 2.1 (8K60Hz, HDMI/eDP selectable)1 × MIPI (supports 5.7 Gbps)Supports multi-screen independent displayOnboard backlight control 12V |
| Audio | 1 × Speaker output (2 × 18W, 4Ω)1 × Microphone input |
| Camera | 2 × MIPI camera input (up to 48 MP, optional)Supports USB cameras (optional) |
| RTC | External RTC battery, supports scheduled power on/off |
| USB Interfaces | 4 × USB 2.0 HOST1 × CPU USB 2.01 × USB 2.0 OTG |
| Infrared | 1 × IR receiver, supports remote control |
| LEDs | 1 × Power LED (red)1 × System LED (blue, blinking) |
| Buttons | 1 × Reset1 × Power1 × Upgrade |
| Serial Ports | 4 × RS2321 × UART TTL1 × RS485 |
| I/O & Expansion | 4 × GPIO (10-pin)1 × CAN1 × I2C1 × AD interfaceFan connector supports 5V/12V |
| Power Supply | AC 100–240 V, 50–60 Hz inputDC 12V / 5.5 mm inner 2.1 mm, 2–5A outputSurge voltage <18V, ripple <100 mVSupports auto power-on or button startup |
| Operating Conditions | Temperature: -10°C ~ 70°CStorage: -20°C ~ 70°CHumidity: 10%–80% |
| Board Dimensions | 100 × 70 × 11 mm |
| Multimedia | Supports 8K60fps H.265/H.264 decoding8K30fps H.265/H.264 encodingSimultaneous encode/decodeUp to 32 × 1080P30fps decoding, 16 × 1080P60fps encoding |
| Language & Input | Multilingual supportStandard Android keyboard, optional third-party keyboards (Chinese/Korean/Japanese)Native Android with root access for custom development |
| System Management | Real-time remote monitoringSystem crash auto-recovery7×24h unattended operationSupports OTA upgradesWi-Fi Display supportSoftware watchdog |
Technical reference
Values are model-specific. Review document revisions and any verification notes before integration.
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Processor (CPU) | Rockchip RK3588S (8nm LPP)Octa-core 64-bit CPU: 4 × Cortex-A76 + 4 × Cortex-A55, up to 2.4 GHz | — | — |
| Graphics (GPU) | Mali-G610 MP4 (quad-core)Supports OpenGL ES 3.2, OpenVG 1.1, OpenCL 2.2, 450 GFLOPS | — | — |
| Neural Network Processor (NPU) | Supports IN4 / IN8 / INT16 / FP16 computationUp to 6.0 TOPSCompatible with Caffe, MxNet, TensorFlow, TFLite, ONNX, DarknetProvides AI development tools and fast model conversion | — | — |
| Language & Input | Multilingual supportStandard Android keyboard, optional third-party keyboards (Chinese/Korean/Japanese)Native Android with root access for custom development | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Memory (RAM) | LPDDR4 4GB (optional 8GB / 16GB / 32GB) | — | — |
| Storage | eMMC 32GB (optional 64GB / 128GB / 256GB)TF Card expansion (optional) | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Operating System | Android 12.0 / Linux / Ubuntu 20.04 | — | — |
| System Management | Real-time remote monitoringSystem crash auto-recovery7×24h unattended operationSupports OTA upgradesWi-Fi Display supportSoftware watchdog | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Display & Video | 1 × eDP 1.3 (4 lanes, 5.4 Gbps, 3.3V/5V)1 × LVDS (single/dual, 6/8-bit, 1080P60, 3.3V/5V/12V)1 × HDMI 2.1 (8K60Hz, HDMI/eDP selectable)1 × MIPI (supports 5.7 Gbps)Supports multi-screen independent displayOnboard backlight control 12V | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| High Performance | RK3588S octa-core CPU (Cortex-A76 + A55) up to 2.4 GHz, Mali-G610 GPU, integrated NPU (6.0 TOPS) | — | — |
| AI Support | Compatible with TensorFlow, Caffe, MxNet, PyTorch; supports Android NN API and RKNN API | — | — |
| Stable & Reliable | Optimized hardware and software for 24/7 unattended operation | — | — |
| High Integration | Built-in Gigabit Ethernet, Wi-Fi/Bluetooth, HDMI, LVDS, eDP, MIPI, audio, IR, sensors | — | — |
| Expandable | Multiple USB ports, RS232/RS485, UART, CAN, I2C, GPIO, AD interface for peripherals | — | — |
| Network | 1 × Ethernet 10/100/1000 MbpsWi-Fi 2.4 GHz 802.11b/g/n (5 GHz optional)Bluetooth V2.1+EDR / 3.0 / 3.0+HS / 4.1 / 4.2 / BLE | — | — |
| RTC | External RTC battery, supports scheduled power on/off | — | — |
| USB Interfaces | 4 × USB 2.0 HOST1 × CPU USB 2.01 × USB 2.0 OTG | — | — |
| Infrared | 1 × IR receiver, supports remote control | — | — |
| LEDs | 1 × Power LED (red)1 × System LED (blue, blinking) | — | — |
| Buttons | 1 × Reset1 × Power1 × Upgrade | — | — |
| Serial Ports | 4 × RS2321 × UART TTL1 × RS485 | — | — |
| I/O & Expansion | 4 × GPIO (10-pin)1 × CAN1 × I2C1 × AD interfaceFan connector supports 5V/12V | — | — |
| Operating Conditions | Temperature: -10°C ~ 70°CStorage: -20°C ~ 70°CHumidity: 10%–80% | — | — |
| Multimedia | Supports 8K60fps H.265/H.264 decoding8K30fps H.265/H.264 encodingSimultaneous encode/decodeUp to 32 × 1080P30fps decoding, 16 × 1080P60fps encoding | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Audio | 1 × Speaker output (2 × 18W, 4Ω)1 × Microphone input | — | — |
| Camera | 2 × MIPI camera input (up to 48 MP, optional)Supports USB cameras (optional) | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Power Supply | AC 100–240 V, 50–60 Hz inputDC 12V / 5.5 mm inner 2.1 mm, 2–5A outputSurge voltage <18V, ripple <100 mVSupports auto power-on or button startup | — | — |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Board Dimensions | 100 × 70 × 11 mm | — | — |
No matching parameters.
Board-level integration
Confirm pin assignments, firmware compatibility and the actual board configuration before connection.
Drawings & technical resources
No verified board files are published yet. Request the hardware manual, pin definitions, schematics and OS-specific BSP / SDK from our engineering team.
Before you integrate
Have a technical question? Send your project requirements below.
Let’s check the fit
Share your OS, memory, display output, expansion and power requirements for RJY-WC-43795.
Submit your inquiry to save it with our team. You can also open an email draft after submission. Please read our Privacy Policy.
Open email draft ↗Explore the range
RJY-WC-43790

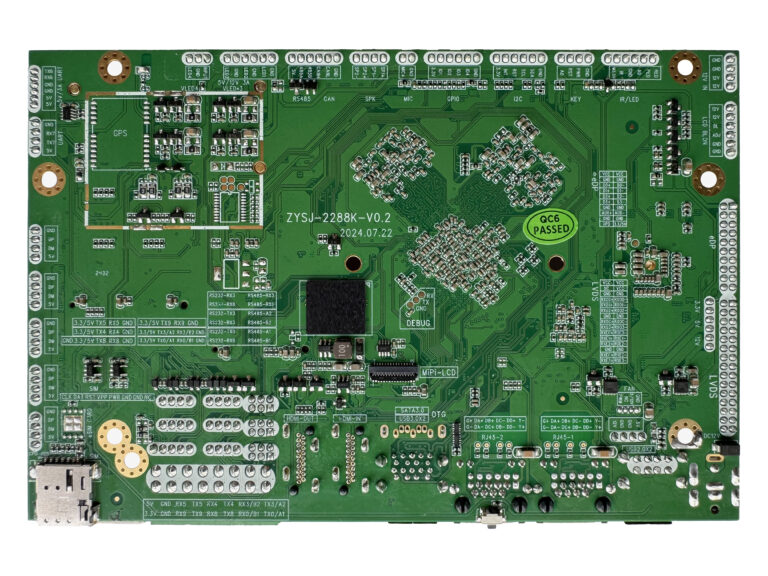

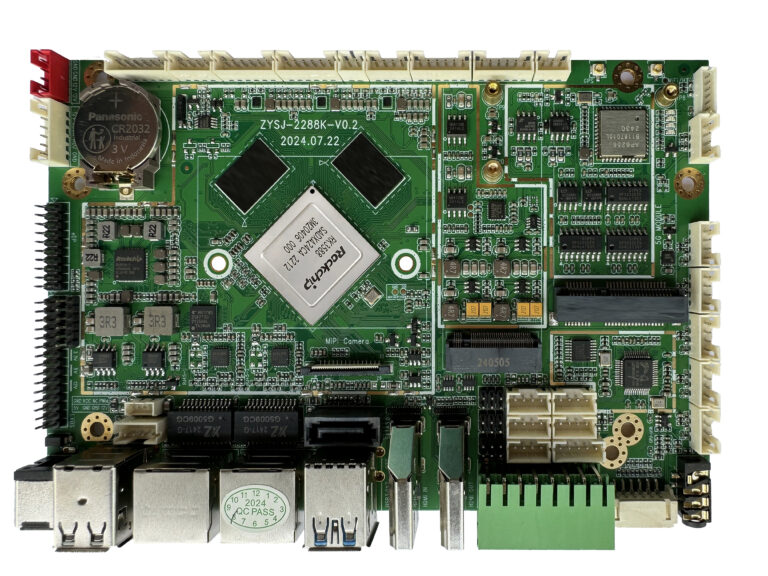

RJY - 2288K

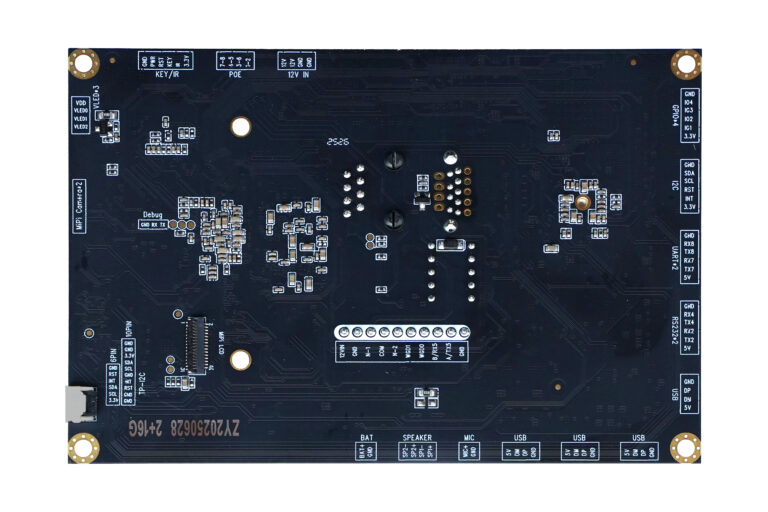

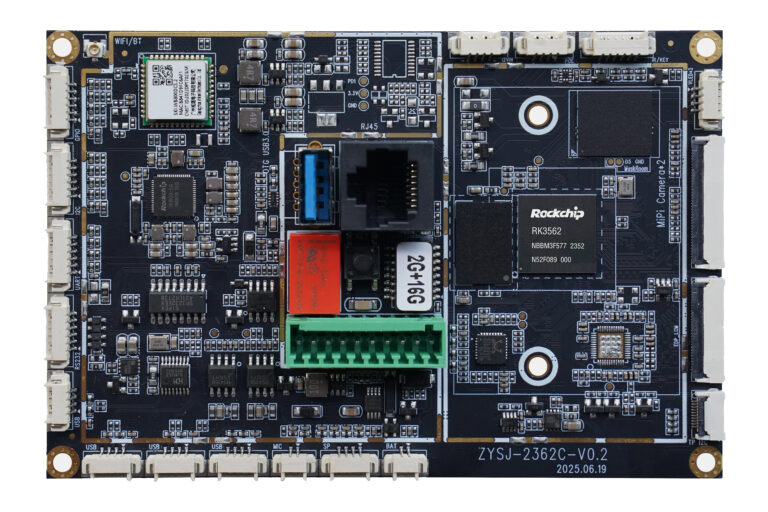

RJY - 2362C
