Rockchip RK3566 Quad-core Android Control Board – Android 11, Buildroot, AIoT
Display and controller solution support for engineering-driven projects.
- Quad-core AI Processor – RK3566 with Cortex-A55 up to 1.8 GHz, ARM G52 GPU, integrated NPU delivering 1.0 TOPS
- AI-Ready – Supports TensorFlow, Caffe, MxNet with built-in AI development tools and cross-platform APIs
- 24/7 Reliability – Optimized hardware and software design ensures stable, unattended operation
- Highly Integrated – Ethernet, Wi-Fi, audio, IR, LVDS/MIPI display, sensors, camera support in a compact ultra-thin board
- Flexible Expansion – Rich interfaces including USB, RS232/RS485, UART, I2C, I/O, PoE, relay, and light control for diverse application
For faster evaluation, please share your target application, display size, resolution, interface, touch requirement, controller board requirement, and annual demand.
Engineering Review
Confirm Product Fit Before Sampling
Display and controller board projects usually require more than a model number. RJY can review your technical requirements before sample or quotation discussion.
01
Specification Matching
Check display size, resolution, brightness, viewing angle, touch requirement, and operating environment.
02
Interface & Board Review
Review interface type, pin definition, controller board requirement, driver IC, and system compatibility.
03
Customization Direction
Discuss cover glass, backlight, touchscreen, FPC, firmware, and mechanical coordination when needed.
04
RFQ Preparation
Prepare application details, sample quantity, annual demand, target timeline, datasheet, or reference product.
Product Overview

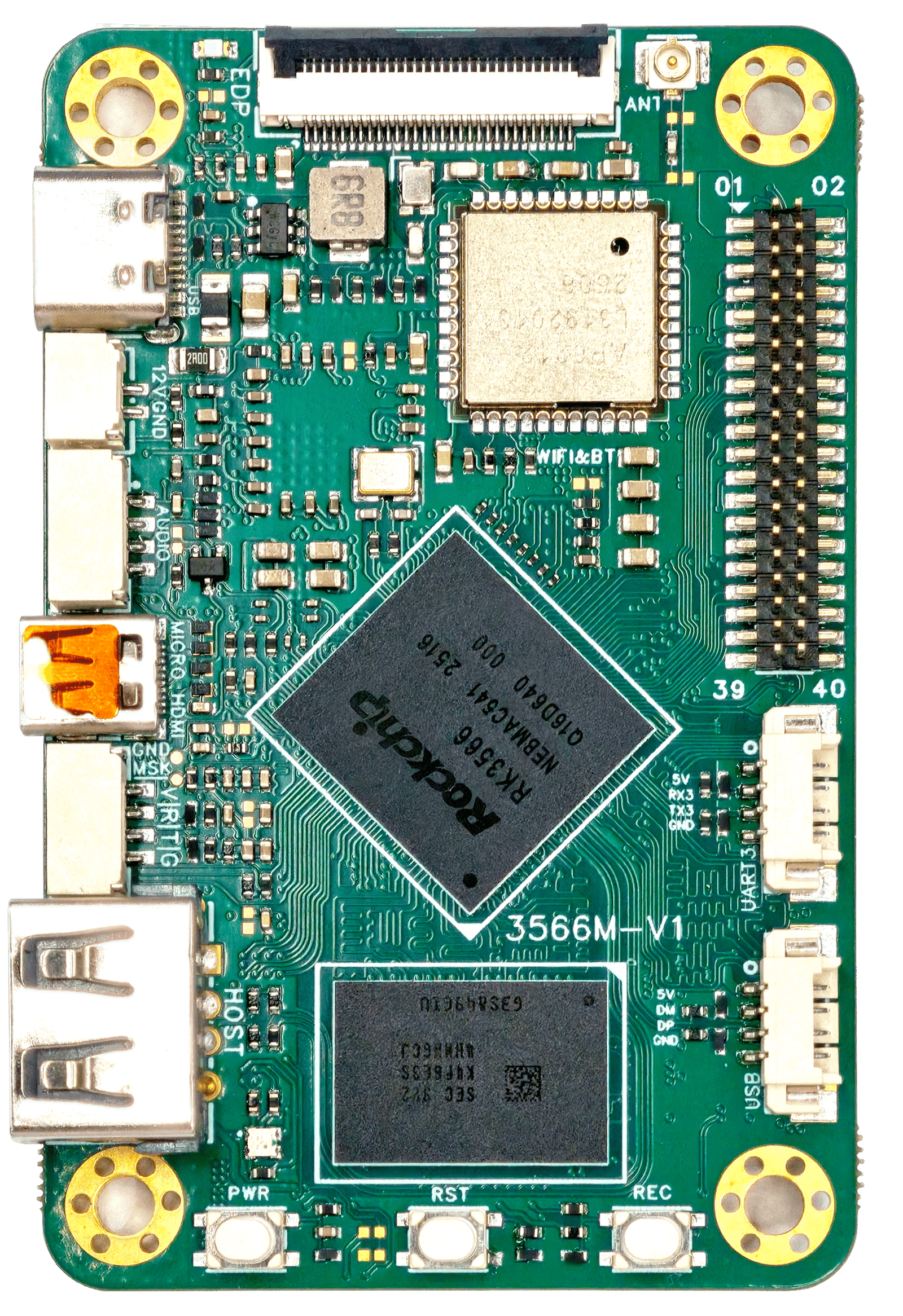

The RJY RK3566 AIOT mainboard is a high-performance, low-power, and cost-efficient embedded computing platform designed for edge intelligence applications. Powered by the Rockchip RK3566 quad-core Cortex-A55 processor, it delivers a balance of powerful performance and stable operation. With integrated GPU, NPU, and a wide range of interfaces, it meets the demanding needs of industrial automation, intelligent displays, IoT gateways, and AI-driven devices.
Key Features
High Performance Processing
Equipped with the Rockchip RK3566 quad-core Cortex-A55 CPU (up to 1.8GHz) and Mali-G52 2EE GPU, supporting OpenGL ES 3.2, OpenCL 2.0, and Vulkan 1.1 for advanced 2D/3D graphics acceleration.Integrated AI Capabilities
Built-in NPU with up to 1.0 TOPS AI computing power for real-time image recognition, edge inference, and machine learning applications.Multi-Display Support
Offers multiple display interfaces including HDMI (4K@60Hz), eDP (2560×1600@60Hz), and MIPI DSI (1080P@60Hz), supporting various screen sizes and resolutions.Rich Connectivity & Expansion
Supports Wi-Fi/Bluetooth modules, USB 2.0/3.0, Gigabit Ethernet, MIPI CSI camera, 40-pin GPIO, TF card, and high-speed expansion interface for flexible integration.Industrial-Grade Stability
Designed for industrial environments with an operating temperature range of -20°C to +70°C, anti-static protection (±4KV contact, ±6KV air), and compact 70×45×9.6mm dimensions.
Technical Specifications
| Category | Specification |
|---|---|
| Processor (CPU) | Rockchip RK3566, Quad-core Cortex-A55, up to 1.8GHz |
| GPU | ARM Mali-G52 2EE, supports OpenGL ES1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 2D acceleration |
| NPU | Up to 1.0 TOPS |
| Memory | LPDDR4/4X: 1GB / 2GB / 4GB / 8GB |
| Storage | eMMC: 8GB / 16GB / 32GB / 64GB / 128GB |
| Display Interfaces | HDMI (4K@60Hz), eDP (2560×1600@60Hz), MIPI DSI (1080P@60Hz) |
| Camera Interface | MIPI CSI, 30PIN 4-Lane |
| Connectivity | Wi-Fi 2.4GHz / Bluetooth, Gigabit Ethernet, USB 2.0/3.0 |
| I/O Interfaces | 40-PIN GPIO (PWM, I2C, SPI, UART), TF Card Slot (up to 512GB), Debug Serial |
| Audio | Built-in 1.3W speaker and microphone via RK809-5 |
| Power Supply | Type-C 5V/3A or 12V/2A input |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Size | 70 × 45 × 9.6 mm |
Applications
Smart Displays and Human-Machine Interfaces
Edge AI and Intelligent Terminals
Industrial Control and Automation Systems
AI Education Devices and Smart Retail
IoT Gateways and Smart Home Systems
Highlights
High-performance quad-core CPU with efficient power consumption
Integrated AI acceleration and 4K video decoding
Flexible display and connectivity options
Industrial-grade design ensuring long-term stability
Compact size for embedded and modular integration
