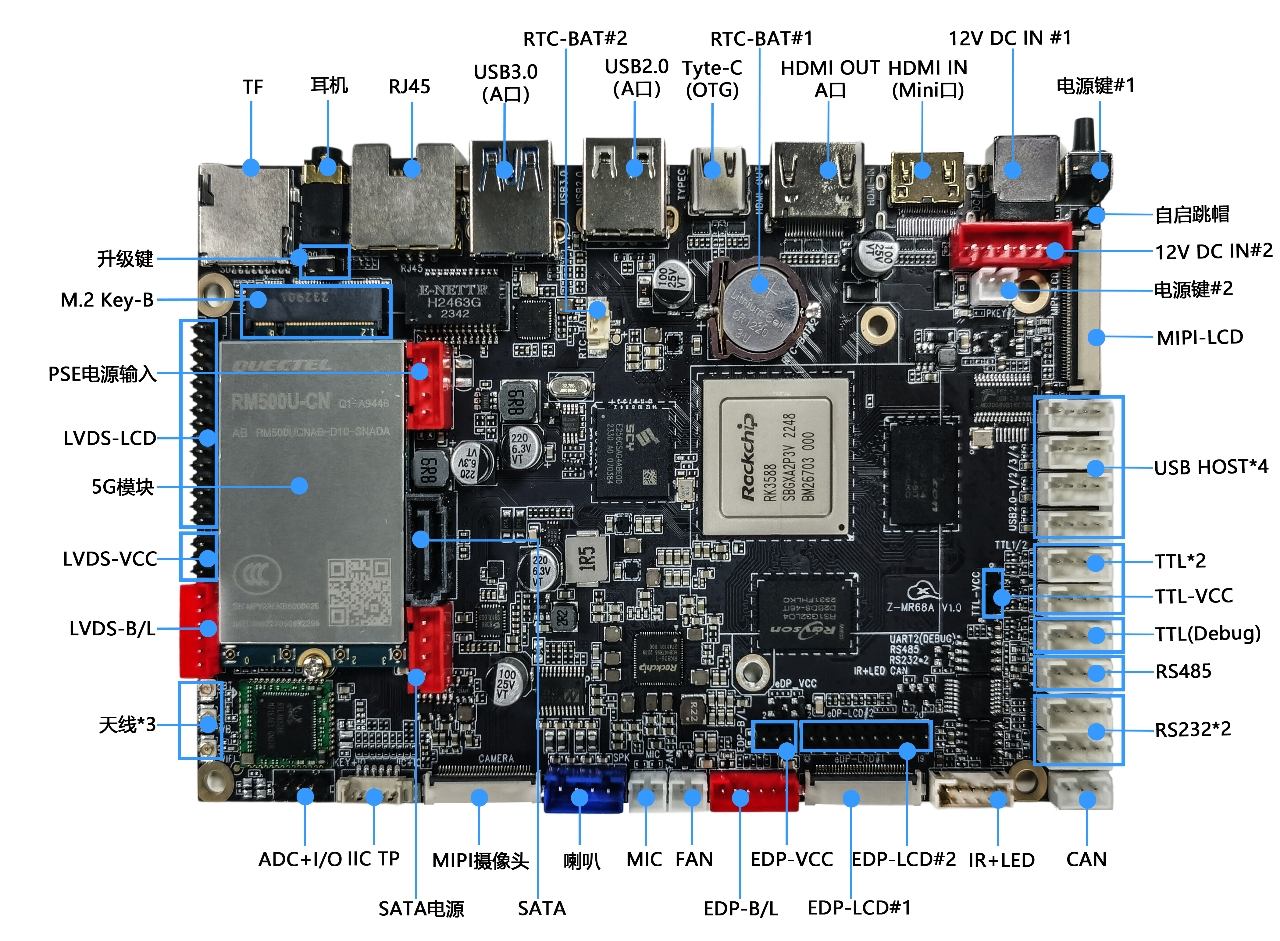

Rockchip RK3588 Octa-core Android LCD Controller Board – Android 11.0, RS232, RS485, USB 3.0, RJ45

The Rockchip RK3588 Octa-core Android LCD Controller Board is a powerhouse of performance, versatility, and connectivity, designed to cater to a wide range of applications, from smart home devices and industrial automation to digital signage and surveillance systems. Powered by the Rockchip RK3588 processor, this board offers unmatched computing capabilities, making it an ideal choice for developers and manufacturers seeking a reliable and high-performance solution.

• Processor (CPU):
  The board is equipped with a Rockchip RK3588 Octa-core processor, comprising 4× Cortex-A76 and 4× Cortex-A55 cores, with a maximum clock speed of 2.4GHz. This ensures robust performance for demanding tasks, from multitasking to high-speed data processing.
• Graphics Processing Unit (GPU):
  Featuring an ARM Mali-G610 MC4 GPU, the board supports 8K@60fps video decoding and is compatible with Vulkan 1.2, delivering exceptional graphics rendering for immersive visual experiences.
• Neural Processing Unit (NPU):
  With a 6 TOPS NPU, the board excels in AI-related tasks, supporting mixed operations (INT16/FP16/BF16/TF32) for efficient AI inferencing and machine learning applications.
• Memory and Storage:
  The board offers LPDDR4/LPDDR4X memory options of 8GB, 16GB, or 32GB, ensuring ample RAM for smooth operation. Storage options include eMMC 5.1 with capacities ranging from 64GB to 512GB, providing generous space for applications and data.
• Display Interfaces:
  Versatile display connectivity is a standout feature, with support for multiple interfaces:
  • LVDS: Single/dual channel, supporting 50/60Hz LCD displays.
  • eDP: Multiple resolution options, with one interface active at a time.
  • MIPI: Drives high-resolution MIPI LCD screens.
  • HDMI: Outputs 8K@60Hz and inputs 4K@60Hz, ideal for high-definition displays and multimedia applications.
• Touchscreen Support:
  Compatible with IIC and USB multi-touch screens, enabling intuitive user interaction for touch-based applications.
• Audio Output:
  Equipped with stereo audio channels and a built-in 10W amplifier, the board delivers high-quality sound, perfect for multimedia and audio-centric applications.
• USB Ports:
  Offers 1 USB 3.0, 1 USB 2.0, and 4 USB HOST ports, providing extensive connectivity for peripherals and accessories.
• Serial Ports:
  Includes 2 RS232, 1 RS485, 2 TTL, 1 DEBUG, and 1 CAN ports, catering to industrial control and automation needs.
• Other Interfaces:
  Features GPIO, MIC input, SATA, cooling fan support, RTC battery holder, and IR remote control, offering extensive expansion options for customized applications.
• Wireless Connectivity:
  Built-in Wi-Fi 6 (2.4GHz + 5GHz) and optional Bluetooth 5.0 enable fast and reliable wireless communication. Additionally, a 1000M RJ45 Ethernet port with POE support ensures stable wired connectivity. For mobile applications, an optional 5G/4G module via M.2 PCIE is available.
• Power Supply:
  Operates on a 12V/3A DC input with multiple power socket options, ensuring reliable power delivery in various environments.
• System Upgrades:
  Supports upgrades via USB, U-disk, and OTA updates, simplifying maintenance and ensuring the system stays up-to-date.

Applications

The Rockchip RK3588 Octa-core Android LCD Controller Board is well-suited for a variety of applications:

1. Smart Home Devices:
   Ideal for control panels, home automation hubs, and smart appliances requiring high performance and versatility.
2. Industrial Automation:
   With its robust processing power and extensive serial interfaces, this board is perfect for industrial control systems, data loggers, and automation devices.
3. Digital Signage:
   The board’s high-resolution display capabilities make it a great fit for digital signage, advertising displays, and public information systems.
4. Surveillance Systems:
   With support for high-definition video processing and multiple display interfaces, it’s suitable for surveillance monitors and security systems.
5. AI and Machine Learning Applications:
   The integrated NPU and AI capabilities make this board an excellent choice for AI-driven projects and edge computing applications.

Benefits and Applications of Android LCD Controller Board:

3.1 Versatile Integration: The Android LCD Controller Board enables the use of 10.1-inch TFT LCDs in a wide range of applications. It is widely employed in digital signage, kiosks, gaming systems, embedded systems, home automation, and DIY projects where an Android-based display solution is desired.

3.2 Upgrade Existing Displays: For individuals or businesses looking to upgrade their existing displays to an Android-based platform, the controller board provides a cost-effective solution. By replacing the existing controller board with the Android LCD Controller Board, users can transform their traditional displays into interactive, smart screens.

3.3 Customization and Development: Android-based systems offer the advantage of customization and application development. The Android LCD Controller Board allows developers to create custom applications, design user interfaces, and harness the full potential of the Android ecosystem.
