  3. 3.5 inch TN LCD TFT Display – 320*480, RGB Interface

模型：

RV035HVP-300-45

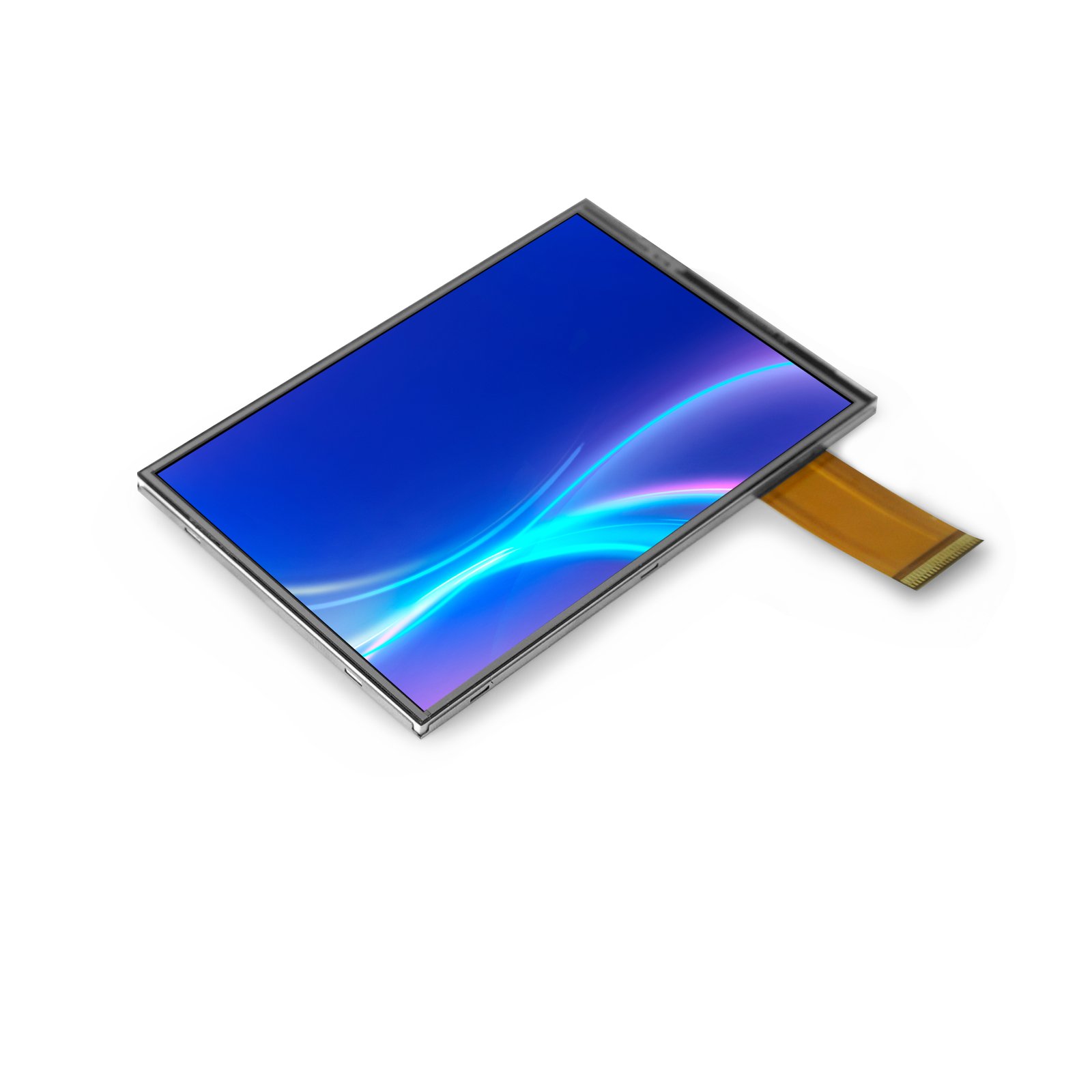

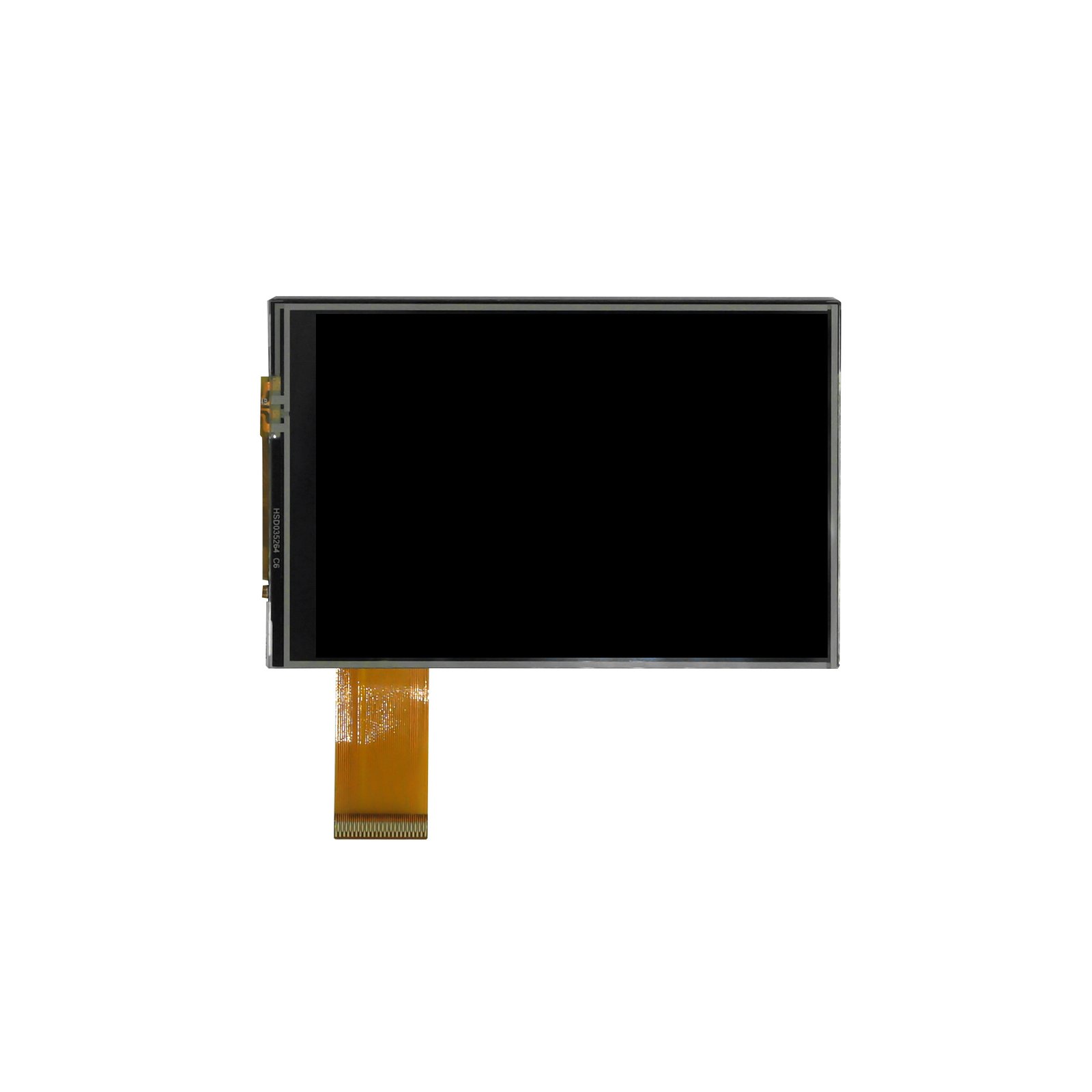

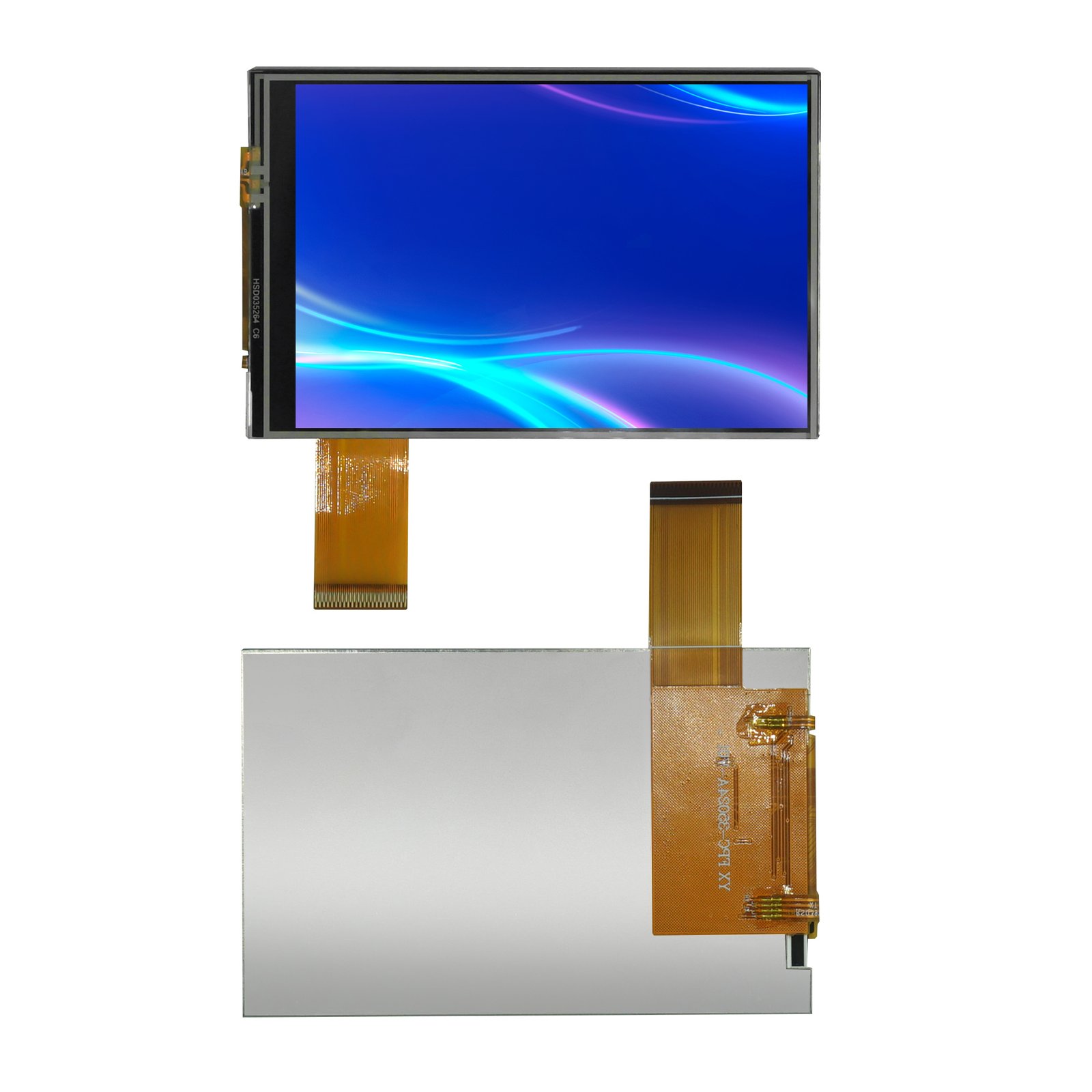

3.5 inch TN LCD TFT Display – 320*480, RGB Interface

  • Model: RV035HVP-300-45
  • Size: 3.5 inch lcd module
  • Resolution: 320*480
  • Interface: MCU/RGB
  • LCM Luminance: 300 cd/m²

Ask our team for:

描述

Size3.5 inch tft lcd module
LCD TypeTN TFT ,TRANSMISSIVE
Display Format320(R,G,B)*480
Input DataMCU/RGB
View Angle12 O”clock
IC DriverILI9488
Display Colors16.7 M
Module Size54.48(W)* 84.71 (H)*2.3(T)
Active Area48.96(W)* 73.44(H)
Pixel Size0.08625*0.08625
Operating Temperature-20 to +70 ℃
Storage Temperature-30 to +80 ℃
LCM Luminance300 cd/m²



Additional information

Size(inch)

3.5

Brightness (cd/m²)

300

Interface

RGB

Resolution

320×480

Viewing Angle

All

模型：

RV035HVP-300-45

3.5 inch TN LCD TFT Display – 320*480, RGB Interface

  • Model: RV035HVP-300-45
  • Size: 3.5 inch lcd module
  • Resolution: 320*480
  • Interface: MCU/RGB
  • LCM Luminance: 300 cd/m²

Ask our team for:

描述

Size3.5 inch tft lcd module
LCD TypeTN TFT ,TRANSMISSIVE
Display Format320(R,G,B)*480
Input DataMCU/RGB
View Angle12 O”clock
IC DriverILI9488
Display Colors16.7 M
Module Size54.48(W)* 84.71 (H)*2.3(T)
Active Area48.96(W)* 73.44(H)
Pixel Size0.08625*0.08625
Operating Temperature-20 to +70 ℃
Storage Temperature-30 to +80 ℃
LCM Luminance300 cd/m²



Additional information

Size(inch)

3.5

Brightness (cd/m²)

300

Interface

RGB

Resolution

320×480

Viewing Angle

All

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

contact us
Our Custom Solutions
Description
Size3.5 inch tft lcd module
LCD TypeTN TFT ,TRANSMISSIVE
Display Format320(R,G,B)*480
Input DataMCU/RGB
View Angle12 O”clock
IC DriverILI9488
Display Colors16.7 M
Module Size54.48(W)* 84.71 (H)*2.3(T)
Active Area48.96(W)* 73.44(H)
Pixel Size0.08625*0.08625
Operating Temperature-20 to +70 ℃
Storage Temperature-30 to +80 ℃
LCM Luminance300 cd/m²
