  3. 3.5 inch Touch TFT LCD Display – 320*480, Incell Touch

模型：

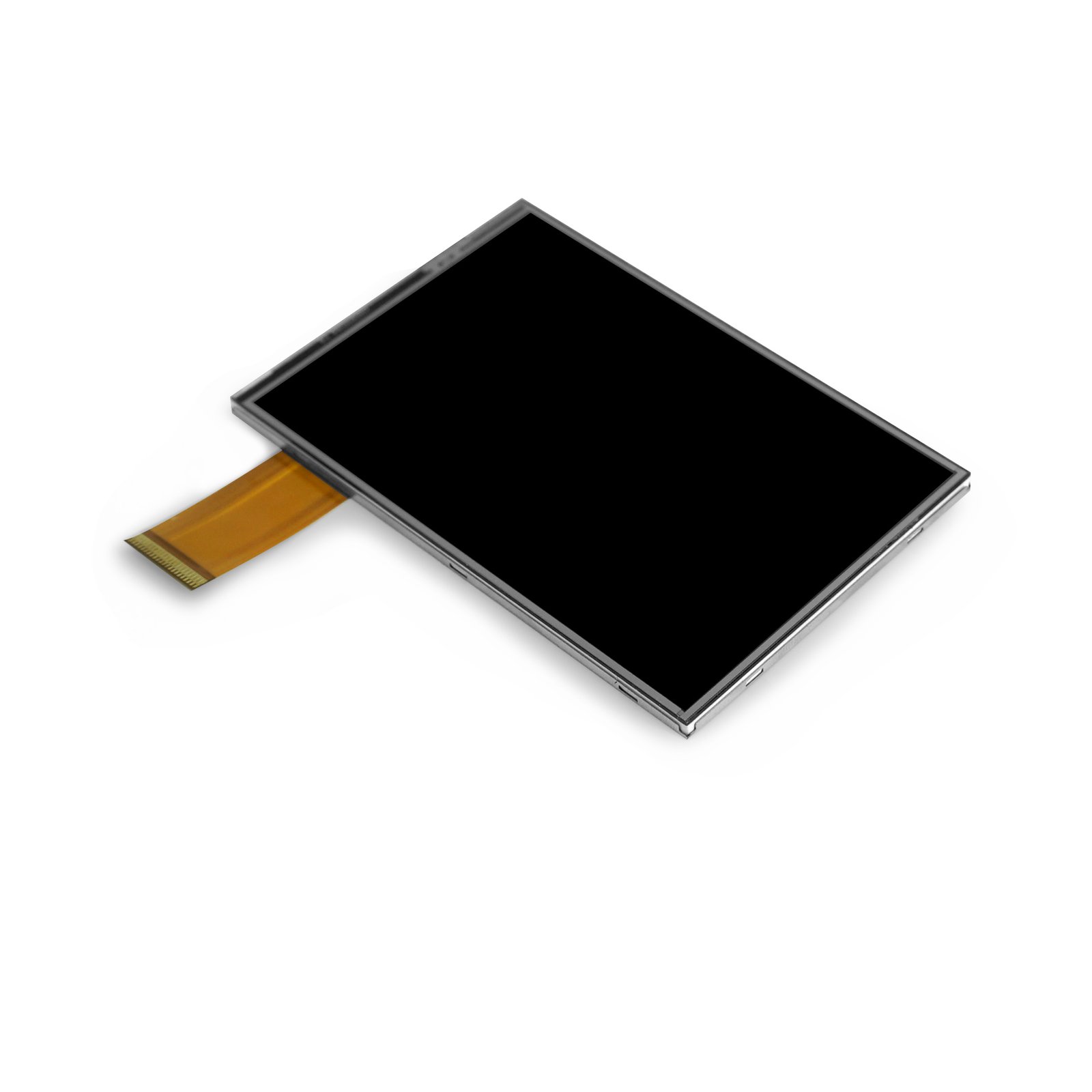

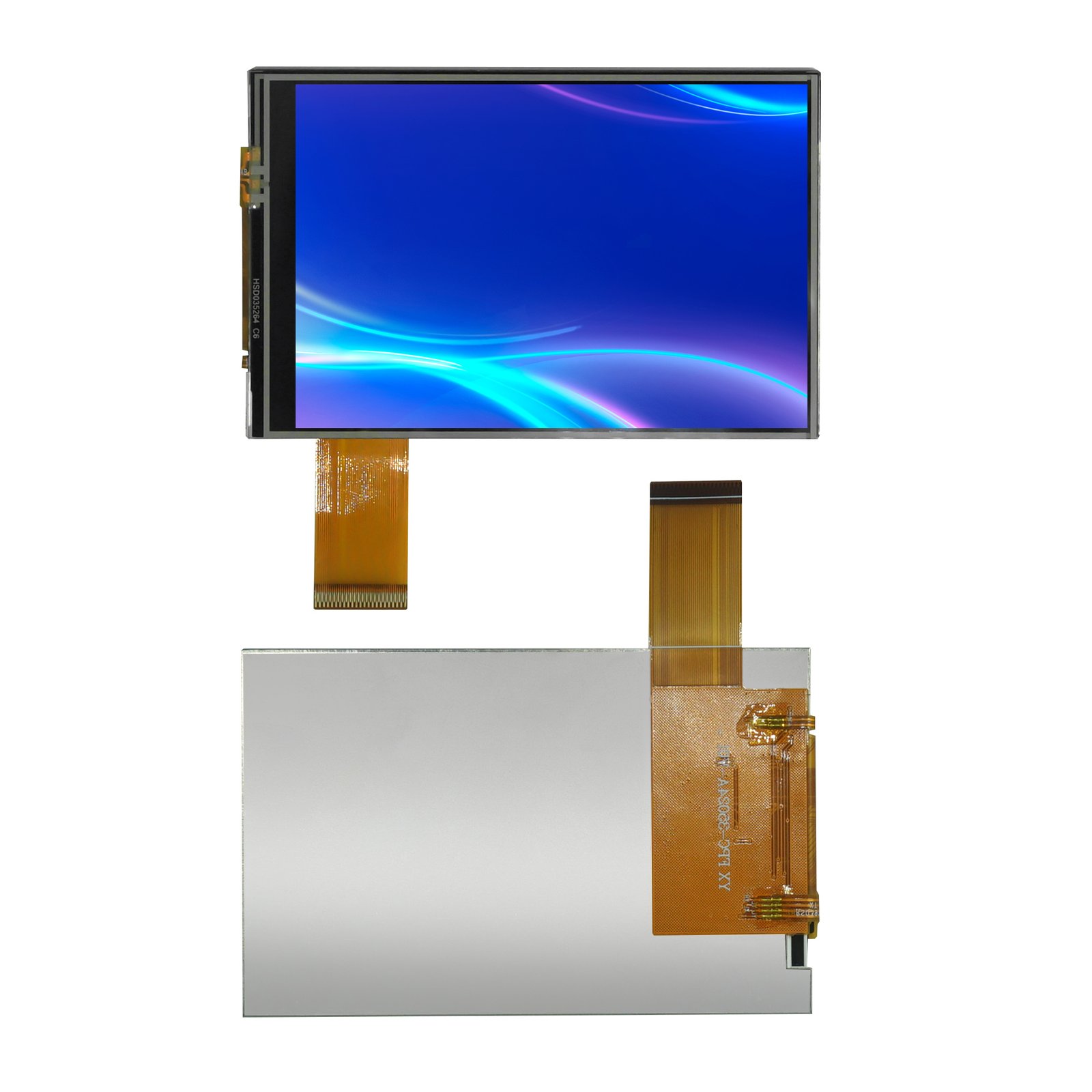

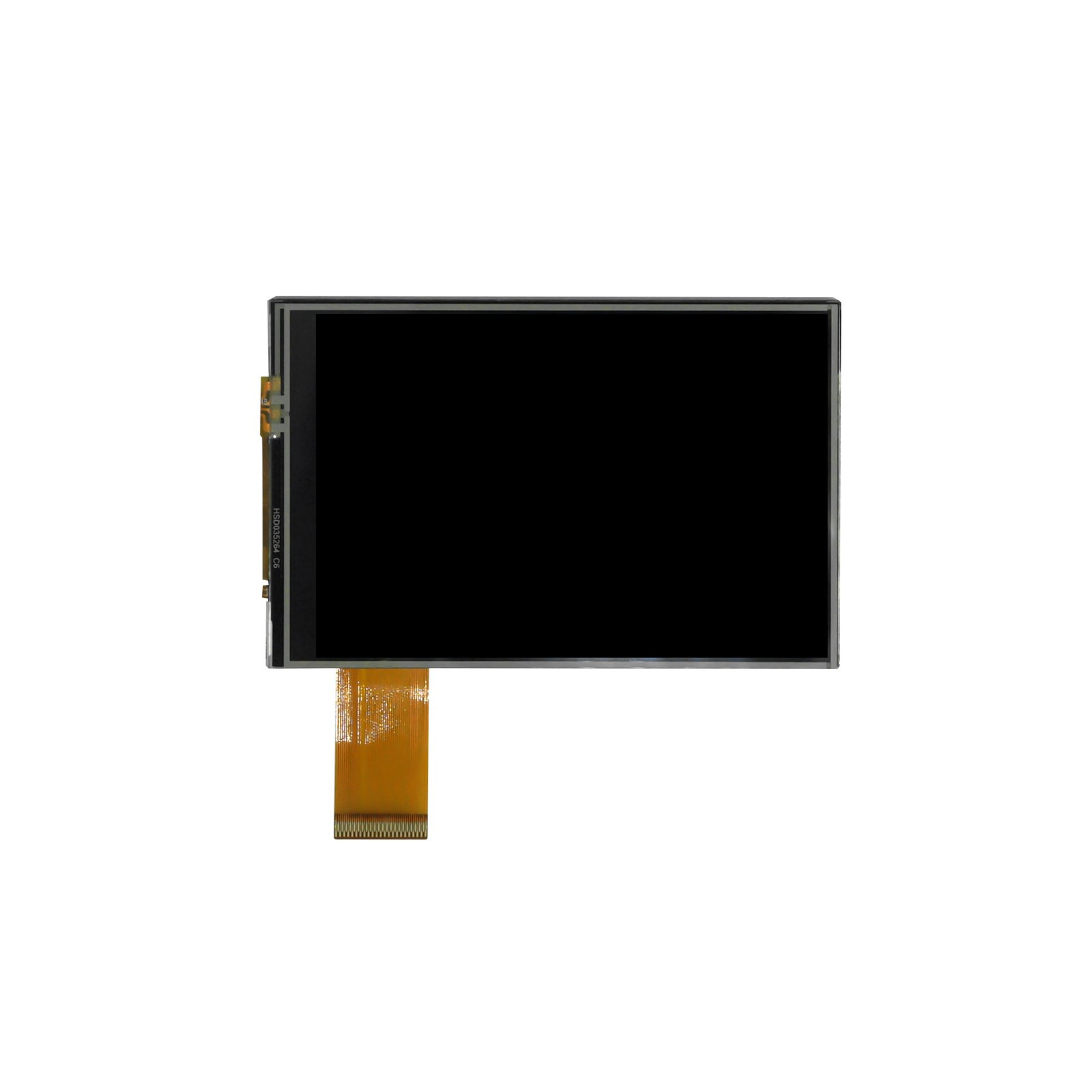

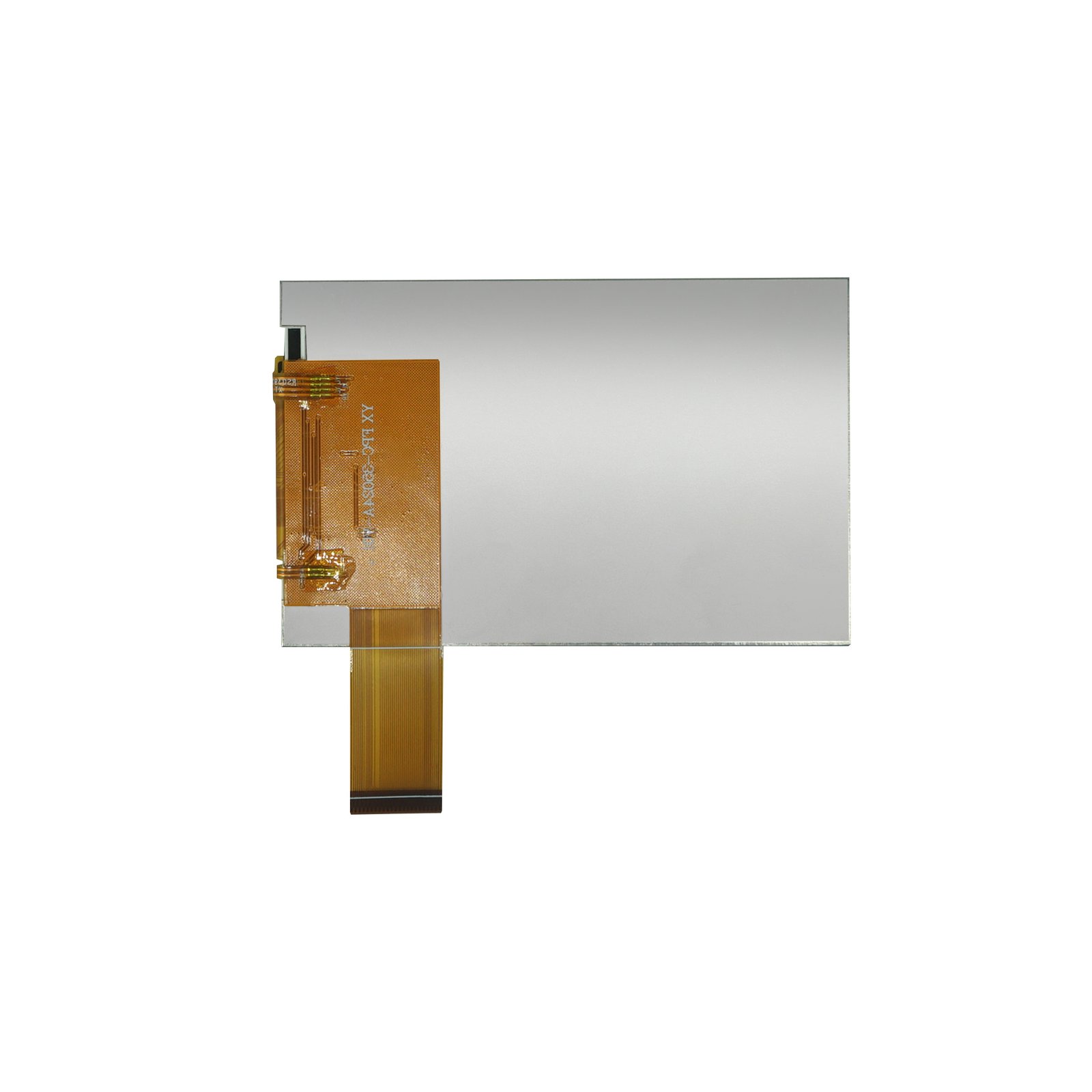

3.5 inch Touch TFT LCD Display – 320*480, Incell Touch

Size: 3.5 inchResolution: 320*480Touch: With touchDisplay type: Incell TFT LCD Panel

Ask our team for:

描述

ItemContentsUnit
LCD TypeTN TFT-LCD/TRANSMISSIVE–
Number of Dots320(RGB) x 480Dots
Outline Dimensions54.48(W) x 84.71(H) x 2.3(T)mm
Active Area48.96(W) x 73.44(H)mm²
Pixel Pitch0.08625 x 0.08625mm²
Module Size3.5inch
Viewing Direction12 O’CLOCKO’clock
Backlight TypeWhite LED (6*LED)–
LCD Driver ICIL19488–
Interface TypeMCU/RGB–

Additional information

Size(inch)

3.5

Brightness (cd/m²)

300

Interface

RGB

Resolution

320×480

模型：

3.5 inch Touch TFT LCD Display – 320*480, Incell Touch

Size: 3.5 inchResolution: 320*480Touch: With touchDisplay type: Incell TFT LCD Panel

Ask our team for:

描述

ItemContentsUnit
LCD TypeTN TFT-LCD/TRANSMISSIVE–
Number of Dots320(RGB) x 480Dots
Outline Dimensions54.48(W) x 84.71(H) x 2.3(T)mm
Active Area48.96(W) x 73.44(H)mm²
Pixel Pitch0.08625 x 0.08625mm²
Module Size3.5inch
Viewing Direction12 O’CLOCKO’clock
Backlight TypeWhite LED (6*LED)–
LCD Driver ICIL19488–
Interface TypeMCU/RGB–

Additional information

Size(inch)

3.5

Brightness (cd/m²)

300

Interface

RGB

Resolution

320×480
