模型：

RV060FHM-350-39

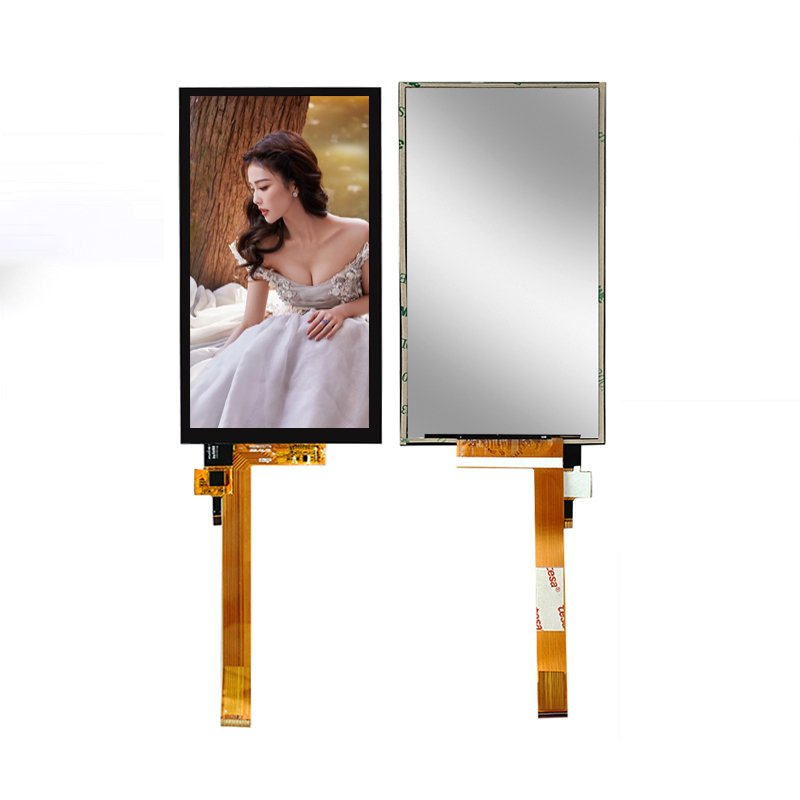

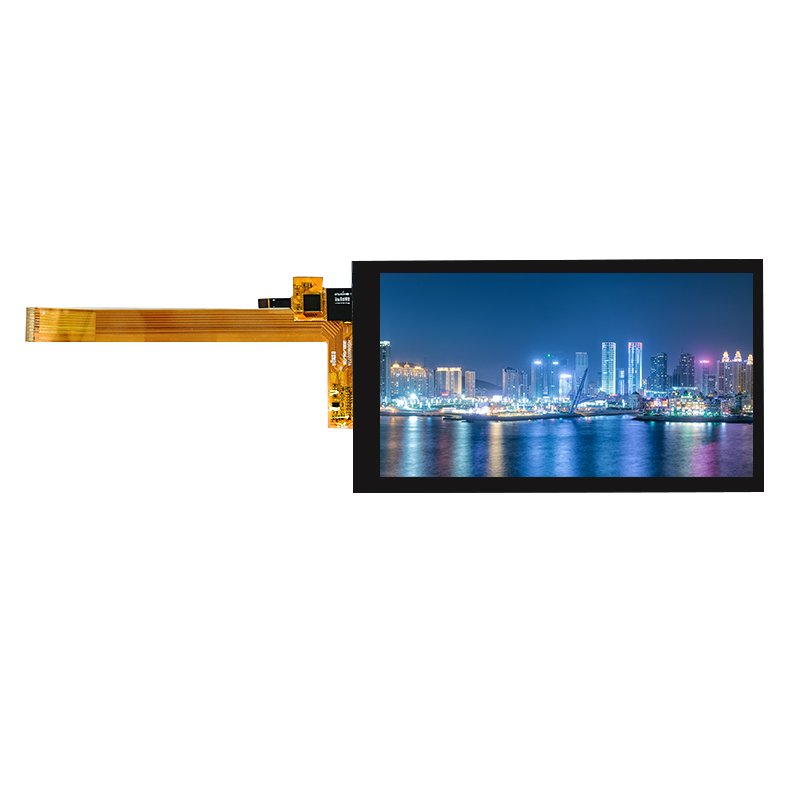

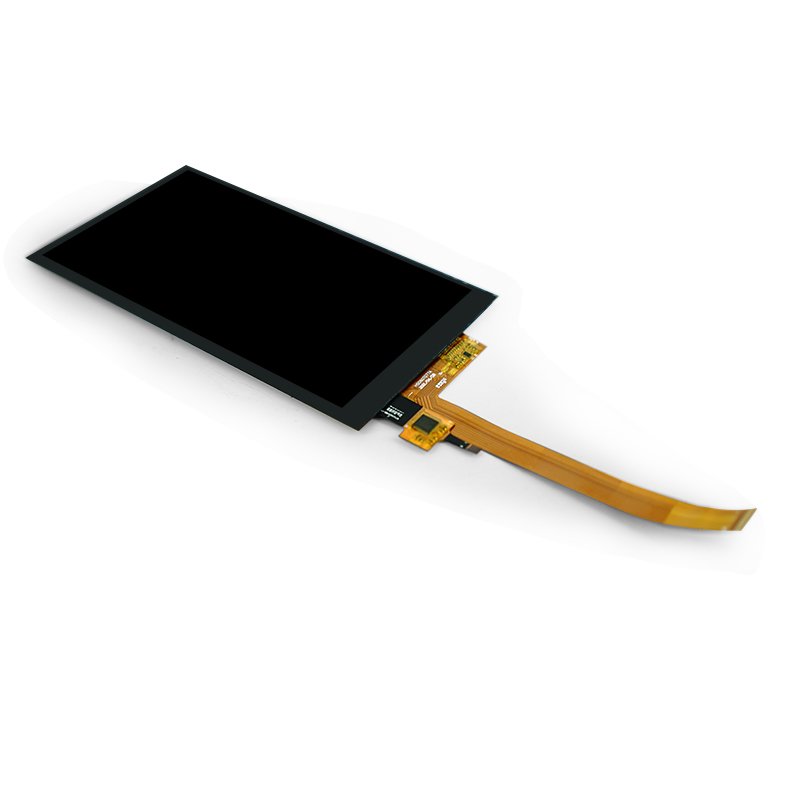

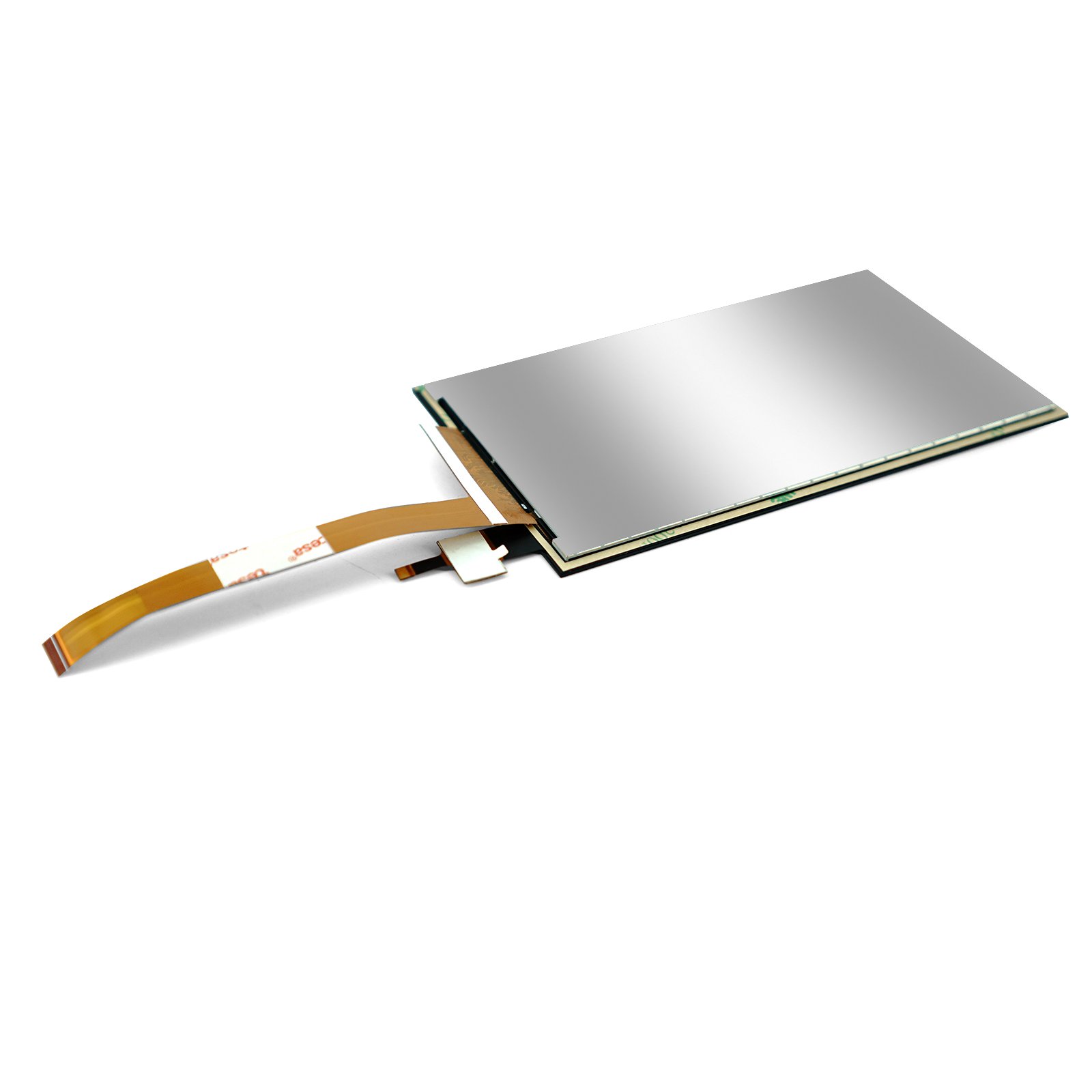

6 inch TFT LCD Display – 1080*1920 Resolution, 350nit Brightness, MIPI Interface

  • Display Mode: Normally Black transmissive
  • Number of Pixels: 1080xRGBx1920 Pixels
  • Drive IC: NT35532
  • Module Luminance: 350 nit / customized
  • Input Signals: MIPI VIDEO MODE

Ask our team for:

描述

RV060FHM-350-39 is a color HD 1080P 6 inch LCD screen module with 1080*1920 pixels with LED backlight, wide viewing angle, it is a square shape Normally Black transmissive TFT display model, MIPI VIDEO MODE interface, the interface acceptable to change according to your requirements. The IC driver is NT35532, it has a wide storage temperature of -30-70 degree, storage humidity is 90%RH.

Brightness is custom item, welcome to tell us your requirement about the LCD panel brightness.

Additional information

Size(inch)

6.0

Resolution

1920×1080

Brightness (cd/m²)

350

Wide Temperature

No

模型：

RV060FHM-350-39

6 inch TFT LCD Display – 1080*1920 Resolution, 350nit Brightness, MIPI Interface

  • Display Mode: Normally Black transmissive
  • Number of Pixels: 1080xRGBx1920 Pixels
  • Drive IC: NT35532
  • Module Luminance: 350 nit / customized
  • Input Signals: MIPI VIDEO MODE

Ask our team for:

描述

RV060FHM-350-39 is a color HD 1080P 6 inch LCD screen module with 1080*1920 pixels with LED backlight, wide viewing angle, it is a square shape Normally Black transmissive TFT display model, MIPI VIDEO MODE interface, the interface acceptable to change according to your requirements. The IC driver is NT35532, it has a wide storage temperature of -30-70 degree, storage humidity is 90%RH.

Brightness is custom item, welcome to tell us your requirement about the LCD panel brightness.

Additional information

Size(inch)

6.0

Resolution

1920×1080

Brightness (cd/m²)

350

Wide Temperature

No

Need a display for the designed device?

Contact our experts – we’ll help you choose the optimal solution adapted to your needs.

contact us
Our Custom Solutions
Description

RV060FHM-350-39 is a color HD 1080P 6 inch LCD screen module with 1080*1920 pixels with LED backlight, wide viewing angle, it is a square shape Normally Black transmissive TFT display model, MIPI VIDEO MODE interface, the interface acceptable to change according to your requirements. The IC driver is NT35532, it has a wide storage temperature of -30-70 degree, storage humidity is 90%RH.

Brightness is custom item, welcome to tell us your requirement about the LCD panel brightness.
