How to Choose a Round LCD Display for OEM Products

A round LCD display can support a product architecture that would be difficult to achieve with a conventional rectangular screen. Circular control panels, instrument-style interfaces, rotary appliances, vehicle-related equipment, smart-home terminals, and specialized HMIs can all benefit from a display that follows the shape of the product.

The shape does not simplify engineering selection. A round display must still fit the enclosure, present the required information, connect to the actual host, operate with the available power and backlight circuits, support the intended touch behavior, and remain identifiable through sampling and production.

The reliable selection process begins with the complete product requirement. Diagonal size and resolution are useful filters, but they do not establish visible geometry, interface compatibility, mechanical fit, UI usability, or environmental suitability.

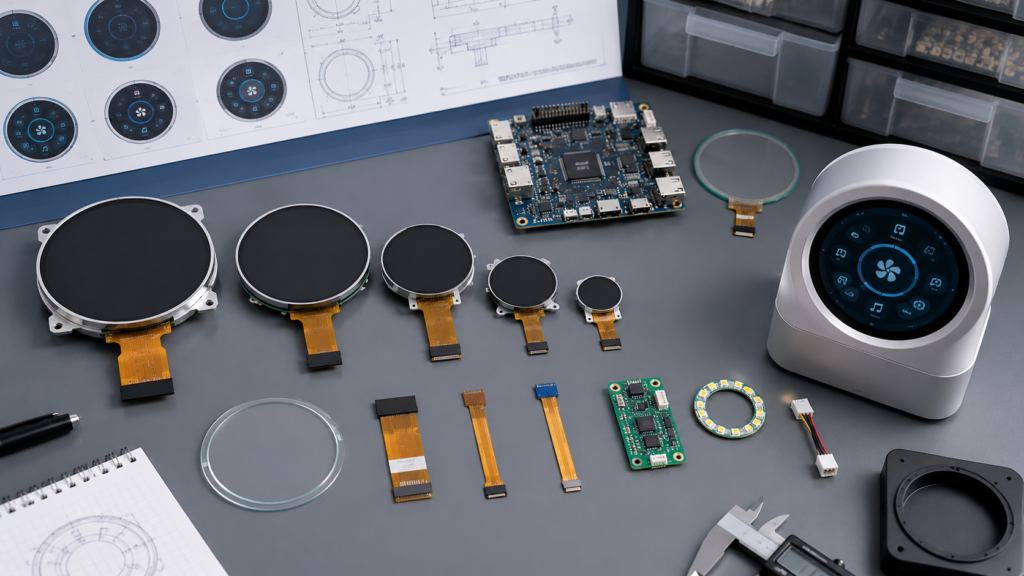

First Define What “Round LCD” Means

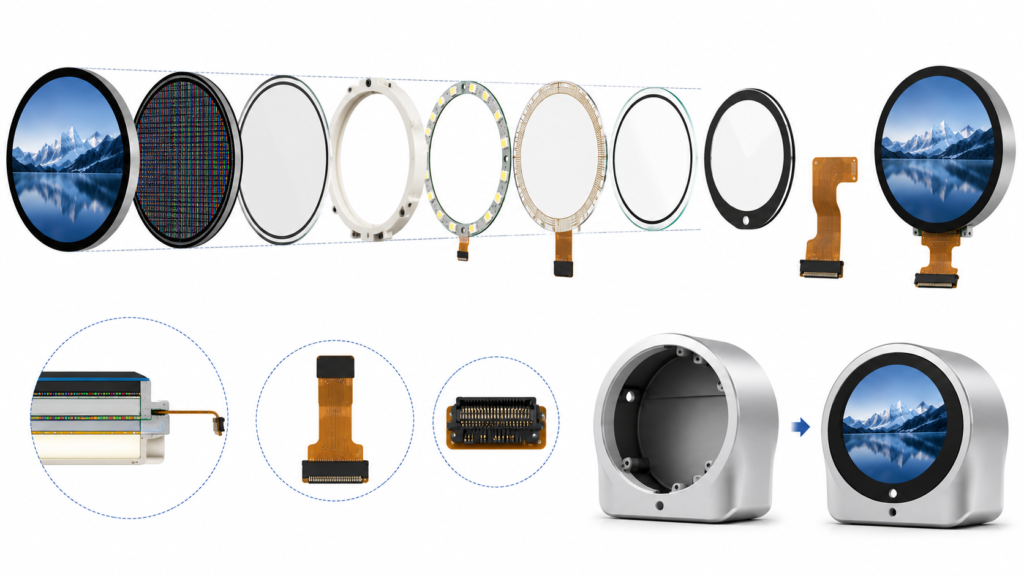

Several different structures can be described as a round LCD. The front surface may appear circular while the LCD glass, backlight frame, or pixel matrix remains square or approximately rectangular. Another assembly may use circular cover glass over a conventional display opening.

Geometry Term	What It Describes	Why It Matters
Active area	The area containing addressable pixels	Determines the physical image size and visible UI canvas
Visible or viewing area	The area intended to remain visible through the bezel or cover	Defines where text, indicators, and controls can be seen
LCD glass outline	The complete dimensions of the LCD cell	Affects enclosure clearance and mounting
Module outline	The LCD, backlight, frame, adhesive, and rear-component envelope	Determines whether the complete assembly fits
Touch active area	The sensor area in which input is detected	Must align with the displayed controls and coordinate system
Cover-glass outline	The finished front lens visible to the user	Affects appearance, bonding, enclosure fit, and touch behavior

Do not assume that every pixel inside a square-resolution framebuffer remains visible. Request a controlled mechanical drawing that identifies the active area, viewing boundary, glass outline, module outline, FPC, components, touch sensor, and cover glass.

Start With the User Interface and Product Architecture

A round display should be selected because it supports the product’s interaction and mechanical architecture, not only because it creates a distinctive appearance.

Document the information and controls that the user must access:

• Persistent operating status, values, warnings, and connection indicators
• Primary actions and frequently adjusted settings
• Text, icons, charts, animation, images, or video
• Required languages and longest translations
• Bare-finger, glove, stylus, encoder, button, or mixed input
• Viewing distance, mounting angle, orientation, and ambient light
• Startup, waiting, fault, maintenance, update, and recovery states

Prepare representative screens at the intended physical size before choosing the module. A visually attractive dial screen may still fail when warnings, translated text, touch targets, or diagnostic information must fit within the circular boundary.

Compare Active Diameter and Module Outline Before Diagonal Size

Diagonal size is particularly easy to misinterpret for a round display. It may refer to the panel class, active diameter, or another manufacturer-defined dimension. Two modules sold under the same nominal size can have different active areas, borders, glass outlines, frames, FPC positions, and thicknesses.

Mechanical Check	Question to Resolve
Visible diameter	What circular area must remain visible through the final bezel and cover?
LCD and module outline	Can the cell, backlight, frame, adhesive, and components fit behind the front opening?
Thickness	Does the stated value include touch, cover glass, adhesive, frame, and rear components?
Center alignment	Are the active area, touch area, cover opening, and enclosure center concentric within the tolerance stack?
FPC exit	Can the tail reach the PCB without conflicting with the symmetrical front design?
Mounting and support	Which regions can be supported or bonded without loading the active glass?

Review the supplier drawing with the enclosure CAD and PCB placement. A circular front opening does not make the internal assembly rotationally symmetrical.

Select Resolution From the UI and Host Capability

Round displays commonly use square pixel matrices because a square framebuffer can contain a circular visible image. Other products may use a pixel matrix that is not perfectly square. The exact visible boundary and pixel behavior must come from the current display documentation.

Resolution selection should consider:

Requirement	Engineering Impact
Smallest text and indicators	Determines whether sufficient physical pixel detail is available
Information density	Controls how much status and control information can remain visible
Graphics workload	Affects rendering, framebuffer memory, transfer bandwidth, and host load
Localization	May require additional space, fonts, glyph memory, and line wrapping
Animation or video	Requires representative testing of the processor, memory, interface, and software stack
Native orientation	Affects panel timing, application layout, touch coordinates, and boot graphics

Use the TFT LCD parameter calculator as an initial aid for physical display calculations. Final approval must still use the current panel datasheet, real UI artwork, and target hardware.

Design a Circular UI Safe Area

A square pixel canvas does not mean that critical content should use the corners. Define an application-specific safe area inside the visible circle and keep essential text, touch targets, warning symbols, and navigation inside it.

The required margin depends on the actual visible boundary, bezel, cover-glass printing, touch alignment, font, control size, mounting accuracy, and user workflow. Do not apply one universal percentage to every round display.

UI Element	Round-Screen Review
Primary status	Keep it visible without requiring the user to interpret clipped corner content
Text	Test line length, wrapping, physical size, and translations inside the circular boundary
Touch controls	Confirm that the complete target remains inside the visible and reliably sensed area
Arcs and gauges	Verify that scales, labels, endpoints, and warning zones remain readable
Dialogs and keyboards	Evaluate whether rectangular components need a round-specific layout
System screens	Include boot, update, recovery, permission, and error screens in the round-layout review

Android supports a resource qualifier that distinguishes round from non-round screens, showing that screen shape can require platform-specific layout resources rather than simple scaling.^[5] An embedded Linux, RTOS, or MCU framework may use a different implementation, but the same engineering principle applies: the application must understand the actual visible shape.

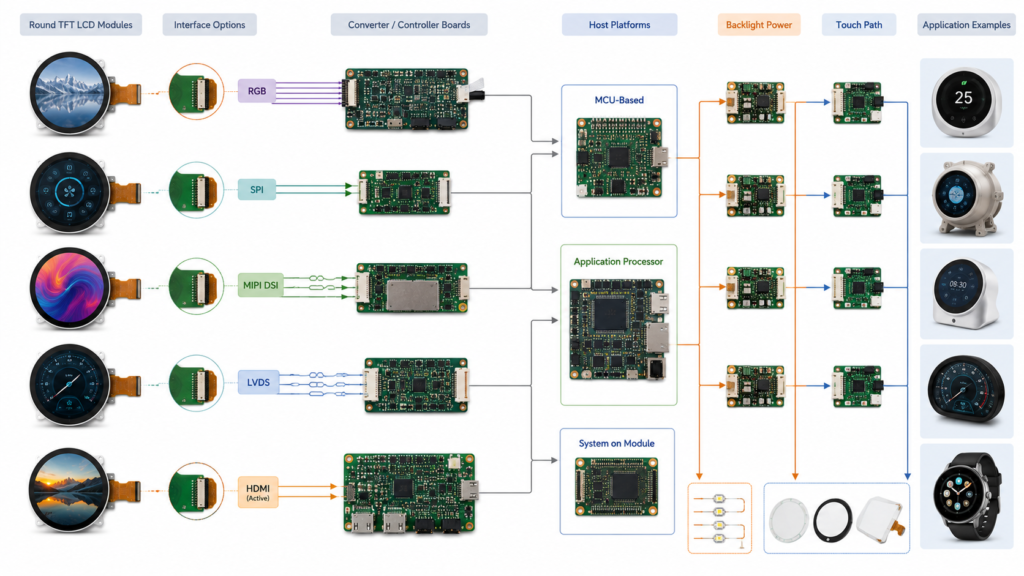

Match the Display Interface to the Actual Host

RJY Display’s current public round-display category includes product paths using RGB, RGB plus SPI, MIPI DSI, and LVDS.^[1] These interface names are not interchangeable, and they do not independently prove compatibility with a host board.

Interface Route	Potential Project Context	Items to Confirm
RGB with control SPI	MCU or application-processor systems with an implemented parallel display controller	Data width, pixel clock, synchronization, voltage, initialization, pinout, memory, and PCB routing
MIPI DSI	Processors or bridge boards with a supported DSI Host	Implemented lanes, lane operating range, mode, pixel format, native timing, commands, power, and panel driver
LVDS	Larger embedded panels and supported controller-board architectures	Channel configuration, mapping, clock, color assignment, voltage, connector, cable, and timing
Active controller board	A host provides HDMI or another standard video mode while a controller drives the raw panel	Input mode, scaling, panel output, firmware, initialization, backlight, power, and touch return path

MIPI Alliance defines MIPI DSI as a high-speed serial interface between a host processor and a display module.^[3] A shared DSI label still requires agreement on the physical implementation, timing, operating mode, commands, power, and software.

NXP’s DSI display-system example separately configures native timing, panel power, reset, backlight control, clocks, signal polarity, and the display interface.^[2] Matching the interface or resolution alone is therefore insufficient.

Use the custom MIPI TFT LCD guide when the selected round module uses DSI. For a broader comparison, see Common Interfaces in LCD Display Modules.

Start With the Actual Board, Not the Processor Brochure

A processor may contain a display controller that the finished board does not route to a connector. The board can also lack the correct voltage rails, GPIOs, backlight circuit, panel driver, or software configuration.

Before approving a round LCD, collect:

• Exact MCU, application processor, computing module, or controller-board model
• Board revision, schematic information, and connector definition
• Implemented display output and supported native timing
• Available memory and representative graphics workload
• Panel power, reset, enable, and backlight circuits
• Operating system, kernel, BSP, bootloader, RTOS, or MCU SDK version
• Existing panel driver and initialization support
• Touch input interface and driver

Compatibility should be demonstrated for the actual board, panel, cable, and software image. A processor-level interface list is only a starting point.

Evaluate Touch as a Separate Subsystem

A round LCD can be supplied without touch or coordinated with a suitable touch configuration when available. The touch sensor, controller, cover glass, bonding, FPC, host interface, and firmware must be evaluated separately from the image path.

Touch Area	Selection Question
Sensor geometry	Does the active touch area align with the visible circle and required controls?
Touch controller	Which exact controller and firmware are used, and which contacts and input tools are supported?
Host connection	Does the board provide the required USB, I2C, SPI, reset, interrupt, voltage, and driver?
Cover glass	Are outline, diameter, thickness, printing, opening, adhesive area, and surface requirements defined?
Coordinate mapping	Do the origin, range, scaling, rotation, and circular UI agree with the displayed image?
Environment	Which glove, moisture, cleaning, electrical-noise, and grounding conditions must be tested?

Microchip’s capacitive-touch design guide explains that the touch cover affects sensor behavior and that mechanical and electrical requirements must be considered as part of sensor design.^[4] Do not assume that custom circular cover glass can be added without reviewing the sensor-controller configuration.

Android also uses input-device properties and calibration to classify, transform, and normalize touch behavior, including orientation-aware coordinate mapping.^[6] The final touch system should be tested with the approved cover glass, controller firmware, host driver, rotation, bezel, and enclosure.

For a complete touch review, use the TFT LCD module with touch screen guide.

Choose Backlight and Optical Performance From the Environment

Brightness should be selected from the intended viewing condition rather than maximized by default. The finished optical path includes the LCD, polarizers, touch sensor, bonding or air gap, cover glass, printed border, surface treatment, ambient light, viewing direction, and UI colors.

Optical Requirement	What to Evaluate
Ambient light	Installation position, reflections, cover stack, viewing distance, and screen content
Viewing direction	Normal user position, off-axis use, rotation, color shift, and contrast behavior
Backlight power	LED configuration, driver circuit, voltage, current, enable, dimming, and heat
Dimming	Required operating range, control method, low-level behavior, and application response
Cover and bonding	Reflections, appearance, contamination, alignment, adhesive, and touch performance

Do not infer sunlight readability, outdoor suitability, optical bonding performance, or a universal lifetime from the advertised brightness of a product. Use configuration-specific data and validate the complete assembly.

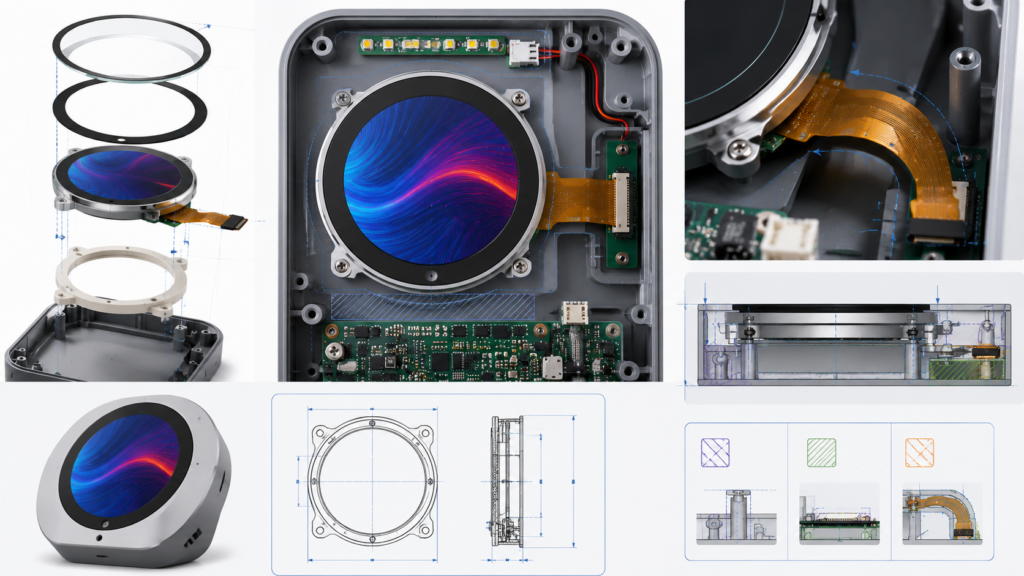

Check FPC, Connector, and PCB Placement

The front of a round display may look symmetrical, but the FPC and connector create a defined orientation. Their location can determine PCB placement, mounting, cable access, and serviceability.

Review the following from controlled drawings:

• FPC exit direction, length, stiffener, contacts, and safe bend region
• Connector pitch, height, contact side, insertion direction, and mating part
• Display, control, power, ground, backlight, and touch pin assignments
• Rear components and keep-out areas
• PCB connector access during assembly
• Clearance from fasteners, edges, heat sources, antennas, and moving components
• Strain relief, retention, repeated assembly, and service procedure

A matching connector count does not prove a matching pinout. An adapter can reroute compatible signals, but it cannot add an unsupported display controller, create missing lanes, correct an incompatible voltage, or replace absent firmware.

Translate Application Labels Into Testable Requirements

Terms such as industrial round display, automotive display, outdoor HMI, and medical display do not define universal specifications. Convert the application label into measurable requirements for the exact finished equipment.

Environment Area	Requirement to Define
Temperature	Operating and storage limits, startup condition, duration, and acceptable display and touch behavior
Moisture and cleaning	Exposure, sealing responsibility, cleaning agents, frequency, touch behavior, printing, and adhesives
Vibration and shock	Mounting, axes, profile, duration, operating state, sample configuration, and acceptance criteria
Electrical conditions	Power quality, grounding, cables, ESD or immunity requirements, enclosure, and operating state
Mechanical loading	Cover pressure, enclosure deformation, adhesive stress, fasteners, and support surfaces
Regulatory context	Applicable finished-product standards, responsible party, exact configuration, and required evidence

Do not infer an automotive qualification, medical certification, IP rating, chemical resistance, or environmental grade from the display shape, product title, panel technology, or intended application.

Start With an Existing Round LCD Platform

RJY Display’s Round Display category provides existing product paths for initial review. The current public range includes small RGB-based modules, MIPI options, touch configurations, and larger LVDS or MIPI products.^[1]

Public Product Path	Published Selection Role	Documents to Request Before Approval
2.1-inch round LCD	Compact RGB-plus-control-interface evaluation	Current datasheet, timing, pinout, driver IC, touch status, and drawing
2.8-inch round TFT LCD	Compact round HMI or embedded-device evaluation	Exact model, interface, optional touch, backlight, and host requirements
4-inch round touch TFT LCD	Touch-enabled round HMI evaluation	LCD, touch controller, cover, bonding, FPC, host driver, and mechanics
7-inch round TFT LCD	Larger LVDS-based display evaluation	Channel mapping, timing, cable, power, backlight, touch option, and drawing
8-inch round LCD	Larger MIPI-based application-processor evaluation	Lanes, mode, timing, initialization, board support, power, and mechanics

These links are product-discovery paths, not automatic compatibility approvals. Public specifications should be checked against the latest controlled documents and current supply status before sampling.

Define Customization Around the Existing Module

When the core round LCD platform is suitable, a project can evaluate surrounding changes such as:

Customization Area	Possible Project Scope	Required Control
Cover glass	Outline, opening, printing, thickness, edge, and surface requirements	Controlled drawing, material, tolerances, appearance criteria, and touch validation
Touchscreen	Sensor, controller, cover stack, bonding, FPC, and host connection	Exact controller, firmware, driver, coordinates, environment, and sample approval
Backlight	Brightness target, enable, dimming, power, and driver coordination	Electrical, optical, thermal, and mechanical validation
FPC and interface	Tail direction, connector, pin routing, cable, or board coordination	Electrical and mechanical drawings, tooling, firmware, and sample testing
Controller board	Board selection or adaptation around the confirmed panel	Actual board revision, interface, timing, firmware, touch, and backlight support
Firmware	Panel initialization, timing, UI orientation, touch, boot, sleep, and wake	Named platform, deliverables, revisions, ownership, and acceptance tests
Mechanical structure	Cover, bezel, support, enclosure, PCB position, and cable routing	CAD, tolerance stack, assembly plan, tooling, and complete sample validation

This customization route begins with an existing display module. It should not be interpreted as the ability to create any arbitrary round LCD diameter, resolution, or new panel architecture from scratch.

For commercial scope and cost drivers, see Why Round LCD Displays Cost More.

Use a Round LCD Comparison Matrix

Decision Area	Candidate A	Candidate B	Required Evidence
Model and revision	Record	Record	Current controlled datasheet and drawing
Visible geometry	Compare	Compare	Active area, viewing area, cover opening, and UI artwork
Module envelope	Compare	Compare	LCD, backlight, frame, components, FPC, touch, and cover dimensions
Resolution and UI	Evaluate	Evaluate	Physical prototype, fonts, translations, controls, and system states
Interface and timing	Confirm	Confirm	Board-level implementation, native timing, pinout, and firmware
Touch	Confirm	Confirm	Sensor, controller, cover, coordinates, driver, and required input tests
Backlight and optics	Evaluate	Evaluate	Configuration data and finished-product viewing test
Mechanical fit	Evaluate	Evaluate	Display, PCB, cable, cover, and enclosure CAD
Environment	Evaluate	Evaluate	Application-specific requirements and configuration-specific evidence
Lifecycle	Confirm	Confirm	Revision, substitution, firmware, PCN, EOL, and requalification process

A lower-cost candidate should not pass the comparison when the host interface, visible geometry, touch controller, mechanical drawing, firmware, or lifecycle remains undefined.

Validate the Complete Round Display Sample

Validation Area	Minimum Review
Visible geometry	Active circle, bezel, cover printing, center alignment, clipped pixels, and tolerance stack
UI	Text, icons, gauges, dialogs, warnings, translations, boot, update, error, and recovery screens
Display image	Native timing, full-screen patterns, orientation, color behavior, startup, sleep, wake, and repeated restart
Touch	Center, circumference, edges, rotation, required input tools, cover glass, wake, and false-touch behavior
Application workload	Representative graphics, communication, storage, networking, peripherals, and background activity
Backlight and power	Enable, dimming, intended operating level, interrupted power, current, and enclosure temperature
Mechanical assembly	Alignment, support, FPC routing, connector access, retention, adhesive, cable, and service procedure
Environment	Defined ambient light, temperature, moisture, cleaning, mechanical, and electrical conditions
Configuration record	LCD, touch, cover, FPC, cable, board, firmware, backlight circuit, enclosure, and open issues

Approve the complete hardware and software configuration rather than only the round LCD model. A later change to the display revision, driver IC, touch controller, cover glass, board, firmware, cable, backlight, or enclosure may require renewed validation.

What to Send for a Round LCD Display Review

Provide the following information for a useful recommendation and quotation:

• Target product, users, workflow, and destination markets
• Required visible diameter, active area, resolution, orientation, and module envelope
• Representative full-scale UI artwork and required system states
• Exact MCU, processor, control board, computing module, or video source
• Implemented display interface, connector, native timing, and software platform
• Touch technology, input tools, controller, host interface, and contact requirements
• Cover-glass drawing, thickness, printing, surface, and bonding requirements
• Ambient light, viewing directions, backlight, dimming, and power requirements
• FPC direction, connector position, PCB placement, and cable constraints
• Operating environment and required configuration-specific tests
• Mechanical drawing or enclosure CAD
• Prototype, pilot, production, and expected annual quantities
• Lifecycle, change-notification, and replacement expectations
• Existing display documentation when replacing another module

Request a Round LCD Compatibility Review

RJY Display can review an existing round LCD platform against your visible area, UI, host board, interface, touch, cover glass, backlight, FPC, firmware, power, environment, and mechanical requirements.

Browse current round LCD displays, review RJY Display’s custom solution scope, or send your UI, board, display, and enclosure documents for engineering review.

FAQ

What is a round LCD display?

A round LCD display is a module designed to present a circular visible image or support a circular front-panel design. The active area, viewing area, LCD glass, module outline, touch sensor, and cover glass may have different shapes, so the exact structure must be confirmed from the mechanical drawing.

Does a round LCD always have a circular pixel matrix?

No. Many round displays use a square pixel matrix or framebuffer with a circular visible area. Other modules may use a different active-pixel structure. Confirm the active area, visible boundary, resolution, and corner behavior for the exact model.

Can I replace a rectangular LCD with a round LCD of the same diagonal size?

Not automatically. The active area, visible diameter, module outline, resolution, interface, timing, pinout, power, backlight, touch, firmware, FPC, and enclosure can all differ. The UI and mechanical structure normally require a new compatibility review.

Which interface is best for a round LCD display?

There is no universal best interface. Choose from the actual host board, native panel timing, resolution, graphics workload, connector, PCB, firmware, power, and lifecycle requirements. RGB, MIPI DSI, LVDS, and active controller-board routes create different integration work.

Can a round LCD include a touchscreen and custom cover glass?

It can when a suitable display-touch configuration is available. The sensor, controller, cover-glass outline, thickness, printing, bonding, FPC, host interface, firmware, coordinate mapping, enclosure, and required operating conditions must be evaluated together.

What information is needed for a round LCD quotation?

Provide the application, visible diameter, resolution, module envelope, UI artwork, host board, interface, touch and cover-glass requirements, backlight and power needs, FPC and connector constraints, environment, enclosure drawing, validation requirements, quantities, and lifecycle expectations.
