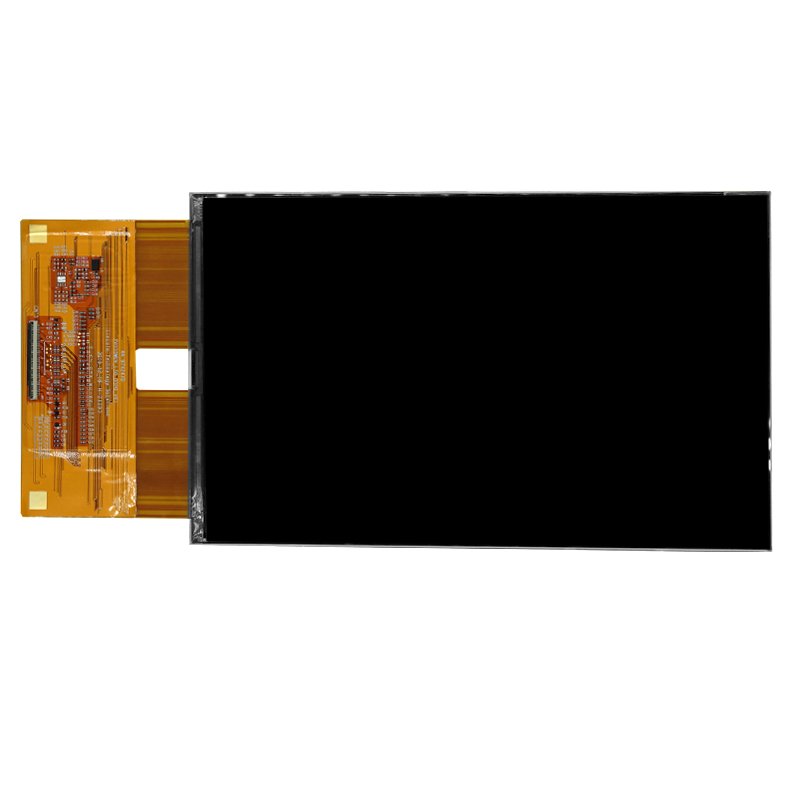

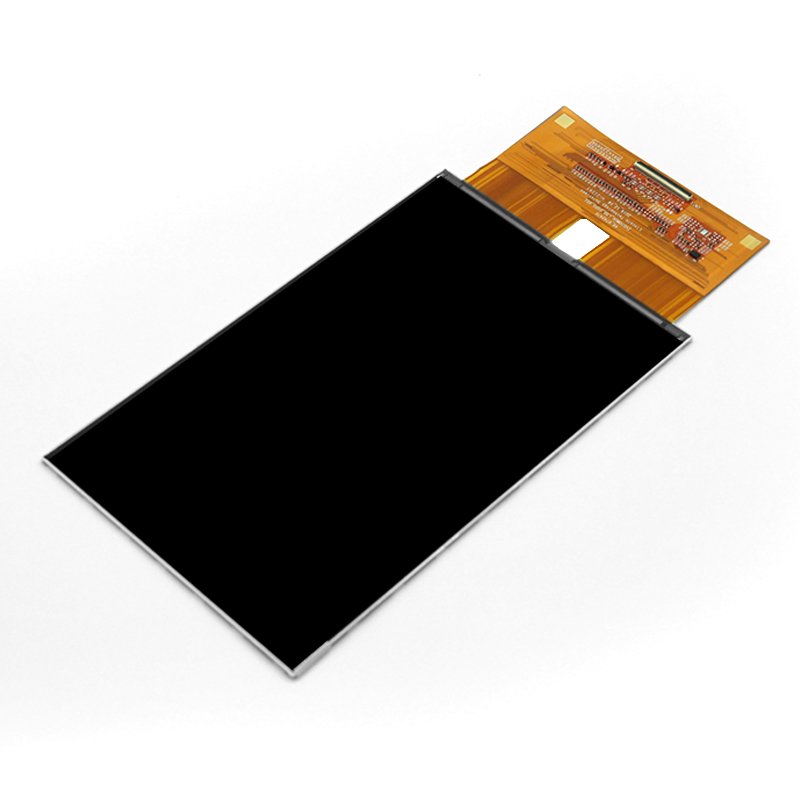

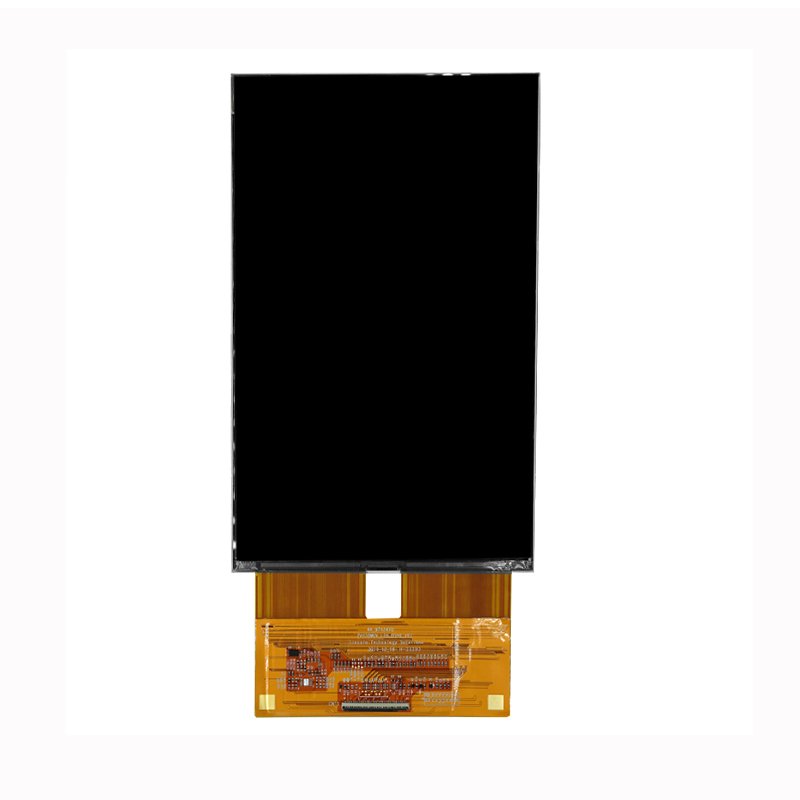

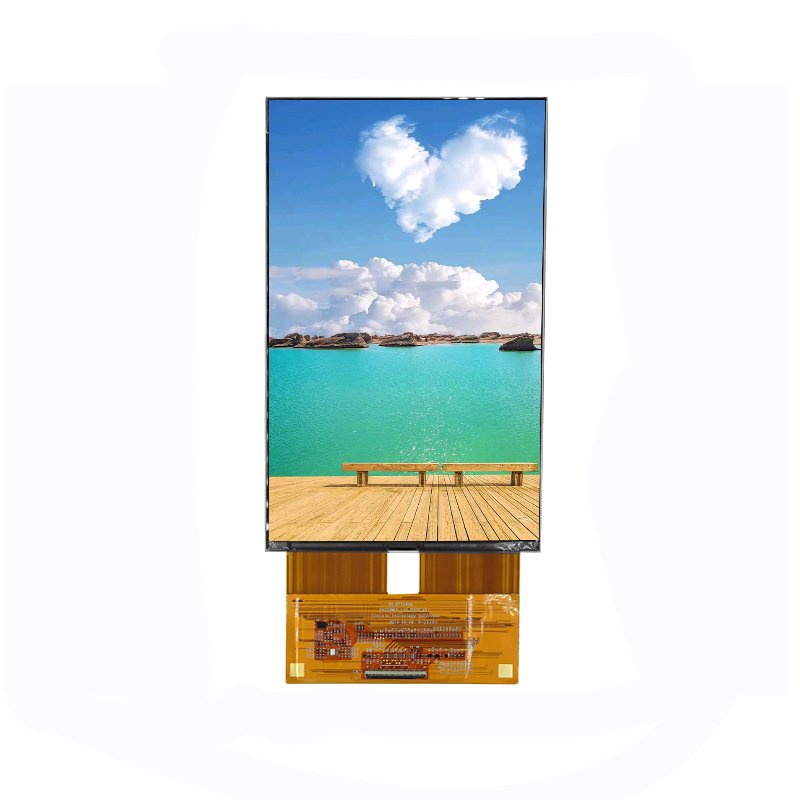

7 inch High-brightness TFT LCD Touch Display – Capacitive Touch Screen, 1200*1920 Resolution, 2500nit Brightness
- Size: 7 inch TFT LCD Touchscreen
- Resolution: 1200*1920
- Brightness: 2500nit
- Interface: MIPI
- Pin connect: 40pin
This 7 inch display with touch screen is a full view LCD display panel, with 1200*1920 resolution. As we are a one-stop LCD solution manufacturer, OEM and ODM is acceptable, customized LCD include the 7 inch TFT LCD display IPS/TN, brightness, now we have 1000nit and 2500nit brightness 7 inch display, with touch or no touch you could choose, the interface also could change, whatever MIPI, RGB, MCU or others, or you just need a HDMI board, that is acceptable.
What can we do?
- Custom Capacitive touch/ Resistive touch
- Interface, MIPI, RGB, MCU, EDP, LVDS
- Custom brightness according to your requirements
- Custom other control function board such as video, sound, WIFI/Bluetooth
- Provide function wire such as USB wire
- All-in-one LCD monitor
- Professional Export Sellers Team, fast solve your problem and get suitable solutions
- More than 3800+ square meters factory and 600+ square meters Office, fast delivery and we have capable to produce bulk products
THERE ARE SOME OTHER 7 INCH LCD DISPLAY CAN CHOOSE:
| Size | Model | Resolution | Interface | Luminance | Pin connection | Active area | Storage temperature |
| 6.95 inch | RV070WSM-300-31 | 600*1024 | ICNL9707 | 300nit | 31pin | 89.28*152.3712 | -30℃~80℃ |
| 7 inch | RV070WSM-K1-50 | 800*480 | RGB | 1000nit | 50pin | 108(H)*64.8(V) | -30℃~80℃ |
| 7 inch | RV070WUM-K25-40 | 1200*1920 | MIPI | 2500nit | 40pin | 94.5*151.2 | -30℃~70℃ |
| 7 inch | RV070WUM-K10-40 | 1200*1920 | MIPI | 1000nit | 40pin | 94.5*151.2 | -30℃~70℃ |
| 7 inch | RV070WUB-350-40 | 1200*1920 | MIPI | 350nit | 40pin | 94.5*151.2 | -30℃~70℃ |
| Size(inch) | 7.0 |
|---|---|
| Resolution | 1200×1920 |
| Brightness (cd/m²) | 2500 |
| Wide Temperature | Yes |
FAQ
Is RJY an Original Equipment Manufacturer (OEM)?
Yes. RJY is a direct provider and manufacturer with vertically integrated capabilities, offering full-cycle hardware innovation from design and PCBA assembly to final system integration.
What types of customization does RJY accept?
We can provide customization in the following four distinct areas: Systems & HMI、Display Modules、Software Services、Industrial Design.
What is the stock status for this product?
Most products on display have at least one unit in stock for testing or quick sampling. For sample requests over 20 units, please check with us in advance to ensure the current stock status.
How are the fees structured for custom projects?
Our custom project fees typically consist of two main components:
NRE (Non-Recurring Engineering) fees and unit pricing.
In many cases, if your order reaches a certain volume, we offer to offset or credit a portion of the NRE fees back to you.
NRE (Non-Recurring Engineering) fees and unit pricing.
In many cases, if your order reaches a certain volume, we offer to offset or credit a portion of the NRE fees back to you.
How long does a typical customization project take?
The timeline depends on the depth of customization:
Software/Firmware Tweaks: 1-2 weeks
Minor Hardware Modifications: 4-6 weeks
Full-Cycle R&D Projects: 12-16 weeks
Software/Firmware Tweaks: 1-2 weeks
Minor Hardware Modifications: 4-6 weeks
Full-Cycle R&D Projects: 12-16 weeks
