Define LCD Display: A Comprehensive Technical Analysis of Liquid Crystal Technology and 2026 Industrial Roadmaps

The Ontological Framework and Etymology of Liquid Crystal Technology

To define LCD display technology in the modern era requires an understanding that transcends its basic acronym. LCD stands for Liquid Crystal Display, an electronically modulated optical device that leverages the unique light-modulating properties of liquid crystals combined with sophisticated polarizing filters to render images, text, and video. Unlike self-emissive technologies, what an LCD does is fundamentally act as a “light valve.” It does not generate its own photons but instead regulates the transmission of light from an external source, typically a high-intensity LED backlight or, in reflective configurations, ambient light.

When one seeks to define lcd screen mechanics, the conversation must begin with the state of matter itself. Liquid crystals are substances that exhibit a dual nature: they possess the fluidity and positional randomness of liquids while maintaining the long-range orientational order and anisotropic physical properties of solid crystals. This state of matter, frequently referred to as the mesophase, allows the material to respond to external electrical stimuli by reorienting its molecular axes. This reorientation changes the optical birefringence of the medium, which is the mechanism that facilitates the selective blocking or transmission of light.

In the contemporary global market, what LCD panels refer to is almost exclusively the Thin-Film Transistor Liquid Crystal Display (TFT-LCD). These are active-matrix displays where each individual pixel is addressed by a dedicated transistor, enabling the high resolutions, deep color depths, and rapid refresh rates required for everything from smartphones and televisions to critical medical diagnostic monitors and military avionics. The replacement of heavy, bulky cathode-ray tube (CRT) displays by LCD technology during the late 2000s marked a paradigm shift in human-machine interaction, untethering information from desktop power cords and enabling the mobile computing revolution.

The evolution of LCD technology

The evolution of LCD technology is a narrative of persistent scientific curiosity that eventually transitioned into an industrial juggernaut. While many perceive it as a modern invention, the foundational discovery dates back to the late 19th century.

Discovery and Early Scientific Curiosities (1888–1960)

The journey began in 1888 when the Austrian botanical physiologist Friedrich Reinitzer examined the melting properties of cholesterol derivatives extracted from carrots. He observed two distinct melting points: the substance first melted into a cloudy liquid and then, at a higher temperature, into a clear one. The German physicist Otto Lehmann continued this research and coined the term “flowing crystals” or “liquid crystals” to describe this unique state. Despite these early breakthroughs, the material remained a scientific novelty for nearly 80 years, with scientists often viewing it as a curiosity without practical application.

The transition to technology began in 1911 when Charles Mauguin experimented with liquid crystals confined between plates, and in 1927 when Vsevolod Frederiks devised the Fréedericksz transition—the electrically switched light valve effect that remains the essential principle of all modern LCD technology. The Marconi Wireless Telegraph company patented the first practical application, the “Liquid Crystal Light Valve,” in 1936, though commercial realization was still decades away.

The Emergence of Operational Displays (1960–1980)

The 1960s brought a renaissance in liquid crystal research, particularly from the Radio Corporation of America (RCA) in the United States. In 1962, Richard Williams discovered electro-optic characteristics in liquid crystals, and by 1968, George Heilmeier presented the first operational liquid-crystal display based on the Dynamic Scattering Mode (DSM). However, DSM displays required operating temperatures near 80°C and significant power, limiting their commercial appeal.

The pivotal breakthrough occurred in 1971 when James Fergason in the US and Martin Schadt and Wolfgang Helfrich in Switzerland developed the Twisted Nematic (TN) cell. The TN effect allowed displays to operate at room temperature with drastically lower voltages and power consumption. This led directly to the explosion of LCDs in wristwatches and pocket calculators throughout the 1970s, epitomized by the 1974 release of the Casiotron, the first digital watch with a calendar function.

Industrialization and the Active-Matrix Revolution (1980–2010)

By the 1980s, the focus shifted toward color and higher information density. The first color flat LCD TV was presented in Japan in 1984, and in 1988, Sharp announced a 14-inch, active-matrix, full-color TFT-LCD. This development was crucial because it proved that LCD technology could scale to sizes suitable for computer monitors and televisions. Throughout the 1990s, LCDs became the foundational technology for the laptop computer market, as they were the only flat-panel platform thin enough and energy-efficient enough to run on battery power.

In 2007, a landmark moment occurred: worldwide sales of LCD TVs surpassed CRT TVs for the first time. This transition was fueled by improvements in manufacturing that brought costs down while increasing contrast ratios and viewing angles through new technologies like In-Plane Switching (IPS) and Vertical Alignment (VA).

The Physical Principles: Molecular Order and Optical Anisotropy

The question of how does lcd panel work is answered through the lens of condensed matter physics, specifically the study of “soft matter”. Liquid crystal molecules, usually rod-like (calamitic) or disk-like (discotic) in shape, align themselves in ways that minimize the free energy of the system.

Thermodynamic Mesophases and the Director

In a standard liquid, molecules move randomly with no order. In a crystalline solid, they are fixed in a 3D lattice. Liquid crystals sit between these states.

• Nematic Phase: This is the most significant phase for display technology. The molecules have no positional order but exhibit a one-dimensional long-range orientational order. They tend to point in a common direction described by a dimensionless unit vector called the director (n).
• Smectic Phase: More ordered than the nematic phase, smectic liquid crystals are arranged in layers. While they maintain orientational order, they also possess a degree of positional order, making them behave like highly viscous liquids or soaps.
• Chiral Phase (Cholesteric): Formed by optically active molecules, this phase features a director that rotates in a helical structure throughout the material. The distance required for the director to complete a 360-degree rotation is known as the “pitch”.

Birefringence and Light Modulation

The core of what LCD technology utilizes is birefringence, or double refraction. Because liquid crystal molecules are anisotropic, light traveling through them experiences different refractive indices depending on its polarization relative to the director.

• Ordinary Refractive Index (no​): Experienced by light polarized perpendicular to the director.
• Extraordinary Refractive Index (ne​): Experienced by light polarized parallel to the director.

The difference Δn=ne​−no​ is the birefringence. When polarized light enters a liquid crystal cell, it is split into two components that travel at different speeds, creating a phase retardation. By the time the light exits the cell, its polarization state has been rotated or changed to elliptical polarization. By using a second polarizer (the analyzer) at the exit, the system can selectively block or transmit the light based on the degree of rotation induced by the liquid crystals.

Dielectric Anisotropy and the Electric Field

The response of liquid crystals to an electric field is governed by their dielectric anisotropy. Most liquid crystals used in displays have a positive dielectric anisotropy, meaning the molecules’ dipoles tend to align parallel to an applied electric field. In a TN display, applying a voltage “untwists” the molecules, causing them to stand up perpendicular to the glass substrates. This stops the rotation of light polarization, causing the pixel to appear dark when viewed through crossed polarizers.

Recent research highlighted in 2025 has focused on the ferroelectric nematic (NF​) phase. Unlike standard nematics, NF​ phases possess a spontaneous polar ordered state where all molecules point in the same direction, resulting in a dielectric constant (ε) as high as 20,000. This provides a sensitivity to electric fields that is orders of magnitude higher than conventional materials, promising displays with ultra-low power consumption and nanosecond switching speeds.

Anatomical Structure: The Engineering of the Display Stack

A modern LCD panel is an intricate “sandwich” of multiple functional layers, each requiring precise alignment and material purity.

The Backlight Unit (BLU) and Light Management

Because LCDs are non-emissive, the backlight is the “engine” of the display.

• Light Source: Modern displays exclusively use LEDs (Light Emitting Diodes). By 2025-2026, the industry has shifted toward Mini-LED arrays, which use thousands of tiny LEDs to provide localized dimming zones for improved contrast.
• Light Guide Plate (LGP) and Reflectors: These components ensure that light from the LEDs is distributed uniformly across the entire panel area.
• Diffuser and Prism Films: These layers “recycle” light and direct it toward the viewer, maximizing brightness while minimizing energy consumption.

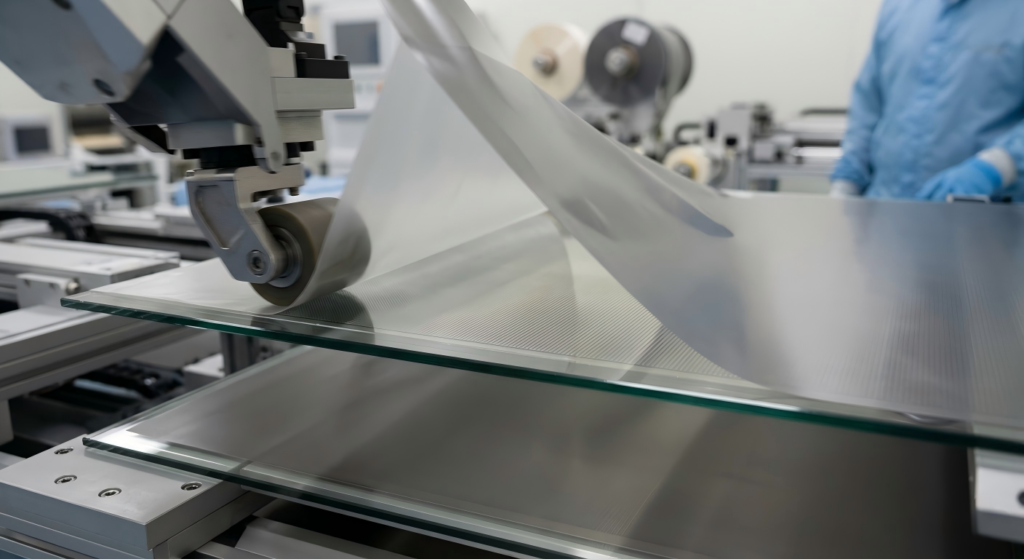

The Polarizers and Substrates

• Rear and Front Polarizers: These filters are the “gatekeepers.” Typically oriented 90 degrees to each other, they ensure that only correctly rotated light reaches the eye.
• Glass Substrates: Specialized fusion-formed glass, often from suppliers like Corning, provides the stable, lightweight platform for the electronics. In high-end 2026 designs, manufacturers are utilizing ultra-thin glass to support flexible or curved architectures.

The Active-Matrix Array and Color Filters

• TFT Layer: This is the “brain” of the panel. A grid of amorphous silicon (a-Si) or Low-Temperature Polycrystalline Silicon (LTPS) transistors allows for independent control of every sub-pixel.
• Color Filter (CF): A grid of red, green, and blue (RGB) photoresists. Each pixel is composed of three sub-pixels. By varying the voltage to each sub-pixel, the LCD can produce millions of colors.
• Black Matrix: A photoresist grid with carbon pigment that separates the sub-pixels. It serves to increase contrast and prevent “color crosstalk,” where light from one sub-pixel bleeds into another.

Advanced Technical Taxonomy: TN, IPS, and VA Modes

While the core principle remains consistent, the internal alignment of the liquid crystals defines the panel’s performance characteristics.

Twisted Nematic (TN) Panels

TN is the most mature and cost-effective technology. In the “off” state, the liquid crystals are twisted 90 degrees, rotating the light and allowing it to pass. TN panels are prized for their high refresh rates and low manufacturing costs, making them ubiquitous in standard office monitors and budget laptops. However, they suffer from poor viewing angles and color shift.

In-Plane Switching (IPS) Panels

Developed to address the limitations of TN, IPS panels align liquid crystals in a horizontal plane. When voltage is applied, the molecules rotate within that plane. This allows for much wider viewing angles (typically 178 degrees) and superior color accuracy. IPS is the industry standard for professional creative work and medical diagnostic imaging.

Vertical Alignment (VA) Panels

VA panels align crystals vertically in the off state. This effectively blocks light, leading to the deepest blacks and highest contrast ratios among all LCD types (often 3000:1 or 4000:1). While they provide better viewing angles than TN, they can suffer from slower response times and “gamma shift” when viewed off-center.

Super-Twisted Nematic (STN) and Specialized Variants

For simpler, low-power applications like industrial meters, STN displays use a twist angle greater than 90 degrees (often 180 to 270 degrees). This creates a steeper electro-optical response curve, allowing for more lines of data to be displayed in a passive-matrix configuration without a transistor at each pixel. Double-layer (DSTN) and color (CSTN) variants were common before the massive price drop of TFT technology.

Manufacturing : From Raw Glass to Module

The production of a TFT-LCD is a multi-billion-dollar endeavor requiring ultra-clean, dust-free environments to ensure zero-defect output.

The Array Process: Building the Transistor Foundation

1. Glass Substrate Cleaning: The process begins with aggressive chemical and ultrasonic cleaning to remove all contaminants.
2. Thin Film Deposition: Layers of semiconductor material (a-Si), gate insulators, and conductive ITO are deposited using Sputtering or Chemical Vapor Deposition (CVD).
3. Photolithography (The Patterning): A light-sensitive photoresist (PR) is applied, exposed to UV light through a photomask containing the circuit design, and then developed.
4. Etching and Stripping: Excess material is etched away with plasma or acids, leaving only the transistor patterns, and the residual PR is stripped. This cycle is repeated multiple times to build the complete 3D transistor structure.

The Cell Process: Creating the Light Valve

5. Polyimide (PI) Printing: A thin PI layer is applied to both the TFT and Color Filter glass.
6. Rubbing (Alignment): A rotating drum with a velvet cloth rubs the PI layer, creating microscopic grooves that define the initial orientation of the LC molecules.
7. Spacer Spread and Sealant Patterning: Spacers are distributed to maintain the cell gap (usually 3–5 microns), and an epoxy sealant is applied to the perimeter.
8. Liquid Crystal Injection (ODF): In modern lines, liquid crystal is dispensed onto the glass before the two substrates are joined in a vacuum.
9. Scribing and Breaking: The large motherglass is cut into individual panels using laser or diamond tools.

The Module Process: Final Assembly and Inspection

10. Polarizer Lamination: Polarizing films are automatically attached to both sides of the cell.

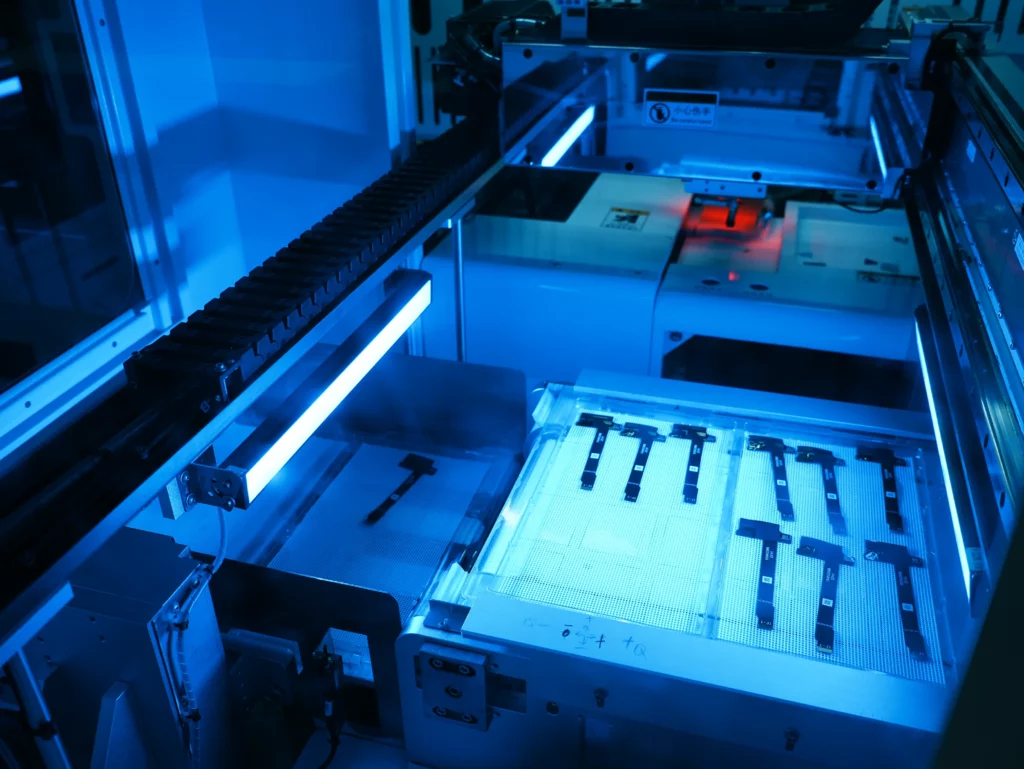

11. COG/FOG Bonding (The Brains): Driver ICs are bonded directly to the glass (Chip-On-Glass), and Flexible Printed Circuits (FPC) are attached to connect the display to the main system.
12. Integration and AOI: The LED backlight, touch panel, and metal frames are assembled. Finally, the display undergoes Automated Optical Inspection (AOI) and electrical testing, including aging for 8+ hours to ensure reliability.

Connectivity and Protocols: Driving the Modern Display

In the industrial and embedded landscape, the choice of interface determines the display’s performance, EMI stability, and power consumption.

Parallel and Simple Interfaces (MCU & RGB)

For low-power, small-sized displays under 5 inches, the MCU (8080/6800) interface is preferred because it handles its own frame buffer, reducing the load on the host processor. As resolutions move toward 800×600, the RGB (TTL) parallel interface is used. However, because RGB is not differential, it is susceptible to Electromagnetic Interference (EMI) and requires many signal lines (up to 24-bit for color).

High-Speed Serial Interfaces (MIPI DSI & LVDS)

• MIPI DSI (Mobile Industry Processor Interface): The standard for smartphones and tablets. It is a high-speed, low-power serial interface that uses fewer wires than RGB, supporting 4K resolutions and beyond in compact forms.
• LVDS (Low-Voltage Differential Signaling): The industrial “workhorse” for displays above 10 inches. Because it is differential, it is immune to interference and supports cable runs of several meters, making it ideal for large machines and medical equipment.

The Next Generation: eDP and V-by-One

Embedded DisplayPort (eDP) has rapidly replaced LVDS in laptops and high-end monitors. Based on the DisplayPort protocol, it uses a packet-based approach that supports massive bandwidth (up to 32.4 Gbps in eDP 1.5). It requires fewer lanes than LVDS, consumes less power, and supports features like Panel Self-Refresh (PSR) and Adaptive-Sync, which are critical for 2026 battery-efficiency standards.

Industrial Standards: Medical, Military, and Aerospace Verticals

The requirements for a “professional-grade” LCD go far beyond consumer specifications, focusing on stability, reliability, and regulatory compliance.

Medical Imaging and DICOM Part 14

Medical displays are specialized instruments, not mere monitors. The Digital Imaging and Communications in Medicine (DICOM) Part 14 standard is the universal language for grayscale accuracy.

• GSDF (Grayscale Standard Display Function): Ensures that the luminance response of the monitor matches human vision. This ensures that a pixel value representing a tumor is equally visible on any DICOM-compliant screen.
• Calibration: Medical displays feature internal 14-bit 3D Look-Up Tables (LUT) and front-facing sensors that auto-calibrate every morning to correct for brightness drift.
• Environmental Safety: They must meet IEC 60601-1 safety standards for electrical leakage and EMI in patient vicinities.

Ruggedization for Military and Aerospace (MIL-STD)

Displays used in combat or aviation must endure stresses that would instantly destroy a standard laptop.

• MIL-STD-810H: Governs environmental stress. Tests include high-altitude chambers (up to 40,000 feet), extreme temperatures (-55°C to +95°C), salt spray corrosion for naval use, and continuous vibration for 4–8 hours per axis.
• MIL-STD-461G: Controls electromagnetic interference. It ensures the display does not emit signals that would reveal a vehicle’s position to enemy sensors and that it remains immune to nearby radar and radio transmitters.
• NVIS (Night Vision Imaging System): Military displays must be “NVIS-compatible,” utilizing specialized filters to ensure the backlight doesn’t wash out or blind a pilot using night-vision goggles.

2025–2026 Technological Horizons: Mini-LED, QLED, and Beyond

The next two years represent a transformative era for LCD technology, characterized by the convergence of performance with self-emissive technologies like OLED.

The Rise of Mini-LED Backlighting

Mini-LED represents the most significant upgrade to LCD backlighting in a decade. By shrinking the size of the LEDs and increasing their number from dozens to thousands, manufacturers have achieved “Full Array Local Dimming” (FALD). This allows the display to turn off the backlight in dark areas of the image while maintaining thousands of nits of brightness in highlight areas. In 2026 models, Mini-LED displays are achieving contrast ratios of 1,000,000:1, making them direct competitors to OLED in high-end TV and monitor segments.

Quantum Dot Integration (QLED)

Quantum Dot Enhancement Film (QDEF) has revolutionized the color gamut of LCDs. Quantum dots are nanoscale semiconductor crystals (often CdSe-based, though moving toward cadmium-free Indium versions for RoHS compliance) that convert blue light into highly pure red and green.

• QDEF: An “add-on” film placed between the backlight and the LC layer. It allows LCDs to reach over 90% of the DCI-P3 color space, compared to ~70% for standard panels.
• QD-on-Glass (QDOG): A 2025-2026 trend where the quantum dots are coated directly on the light-guide plate, allowing for ultra-slim display modules that were previously only possible with OLED.

The 2026 Automotive “Smart Cockpit”

The automotive sector has become the primary driver for high-value LCD innovation. BMW, Mercedes-Benz, and Tesla have set the roadmap for the 2026 cockpit experience.

• Pillar-to-Pillar Displays: Massive, curved LCDs spanning the entire dash.
• Panoramic Head-Up Displays (P-HUDs): Using LCD engines to project AR navigation and vehicle data across the lower windshield.
• Privacy Mode/Dual-View: Samsung’s “Flex Magic Pixel” and CarUX’s parallax barrier solutions allow passengers to view entertainment while the driver’s view is limited to navigation, preventing driver distraction.
• Transparent and Slidable Displays: Tianma and BOE demonstrated slidable LCDs at CES 2026 that can hide or expand based on the vehicle’s mode (e.g., parking vs. driving).

Frequently Asked Questions (FAQ)

Q: What is the main difference between an LCD and an LED TV? A: All “LED TVs” are actually LCD panels. The “LED” refers only to the type of backlight used to illuminate the liquid crystals. A true LED display (where each pixel is an LED) is called a Micro-LED or Mini-LED display.

Q: Does LCD technology suffer from burn-in? A: No. Because LCD is a non-emissive technology using inorganic materials, it does not suffer from the permanent image retention (burn-in) that can affect organic OLED displays. This makes LCD the preferred choice for 24/7 mission-critical monitors and automotive displays.

Q: Why are medical displays so much more expensive than consumer ones? A: Medical displays are regulated medical devices. They include specialized hardware for auto-calibration (DICOM sensors), fanless antimicrobial housings for sterile environments, and high-precision driver circuits that ensure a life span of 7–10 years under continuous use.

Q: Is LCD technology environmentally friendly? A: The industry has made significant strides. Most manufacturers have replaced harmful Chromium in the black matrix with carbon-based photoresists. Additionally, modern LED-backlit LCDs are significantly more energy-efficient than the CCFL or CRT displays they replaced.

Conclusion: The Endurance of the Light Valve Paradigm

The analysis of the global display market through 2026 indicates that liquid crystal technology remains the cornerstone of visual information delivery. Through the integration of Mini-LEDs and Quantum Dots, the traditional LCD has evolved into a high-performance platform capable of matching the visual fidelity of OLED while maintaining the durability and cost-efficiency required for industrial, medical, and automotive sectors. As emerging phases like the ferroelectric nematic move from the laboratory to the fab, and as interfaces like eDP 1.5 enable 8K wireless connectivity, the definition of LCD screen technology will continue to expand, proving that this 140-year-old scientific curiosity is far from its obsolescence.
