Rockchip RK3588 Octa-core Industrial Control Board – 6.0 TOPS AI chipset, WiFi, Bluetooth, USB 3.0
- High Performance: RK3588 octa-core CPU (Cortex-A76 + A55) up to 2.4 GHz, Mali-G610 GPU, integrated NPU (6.0 TOPS)
- AI Support: Compatible with TensorFlow, Caffe, MxNet, PyTorch; supports Android NN API and RKNN API
- Stable & Reliable: Optimized hardware and software for 24/7 unattended operation
- Highly Integrated: Dual Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0, HDMI I/O, LVDS/eDP/MIPI, audio, sensors, GPS, IR
- Expandable: Multiple USB ports, RS232/RS485, UART, CAN, I2C, I/O, AD interface for peripherals
Ask our team for:
standard query
customize this product
standard query
customize this product
Need a display for the designed device?
Contact our experts – we’ll help you choose the optimal solution adapted to your needs.
Description
Product Overview

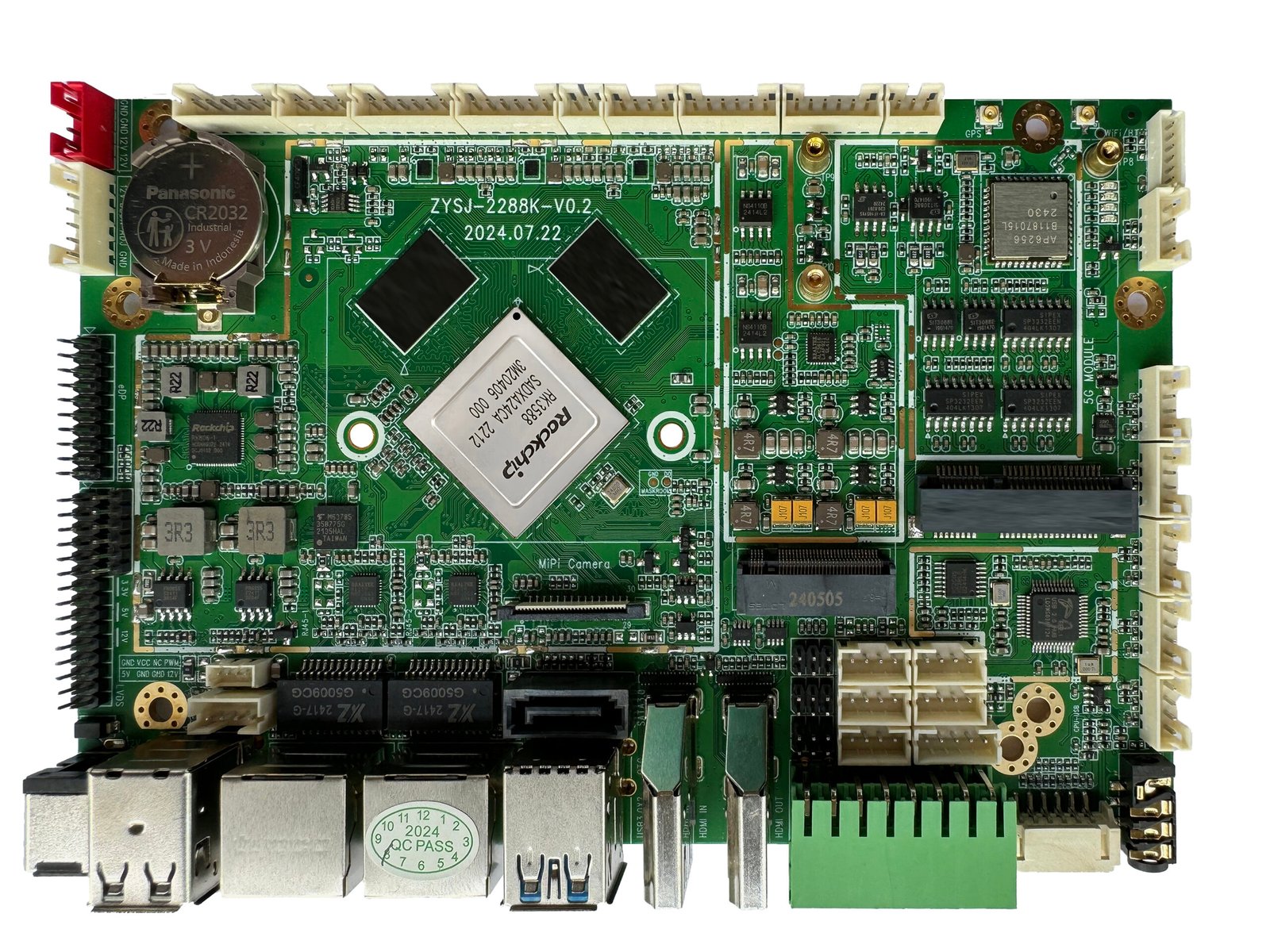

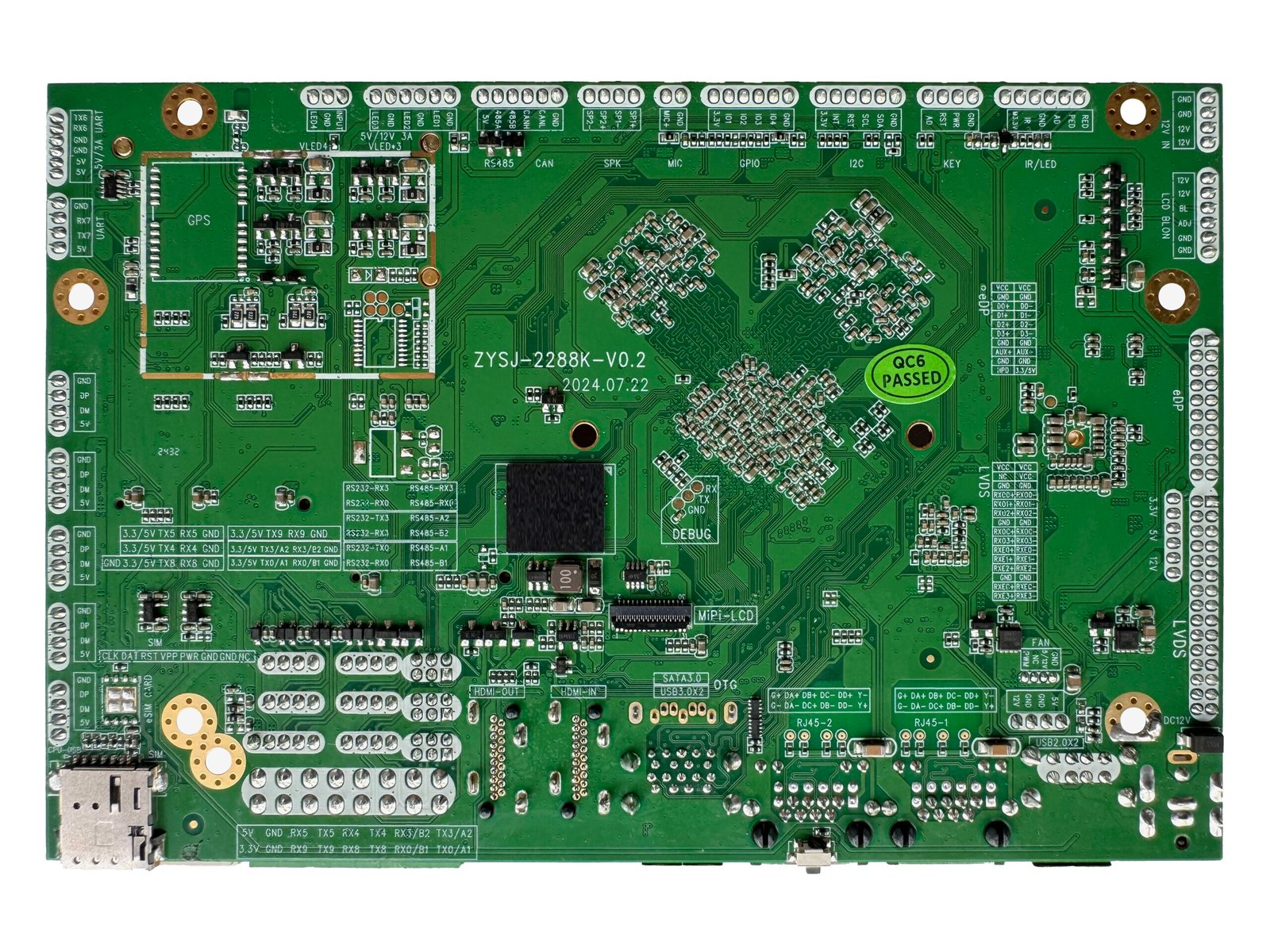

The RJY-2288K is a high-performance motherboard powered by Rockchip’s next-generation flagship RK3588 AIoT processor. It supports a wide range of operating systems including Android, Debian, Ubuntu, Tongxin, Kirin, and HarmonyOS. The RK3588 is built on 8nm LP process technology and features an octa-core 64-bit CPU with Cortex-A76 + A55 architecture, reaching up to 2.4 GHz, delivering exceptional general-purpose computing performance.
The GPU is a high-end quad-core Mali-G610, and the CPU integrates an AI Neural Processing Unit (NPU) supporting IN4 / IN8 / INT16 mixed-precision computation, achieving 6.0 TOPS. The platform is compatible with various AI development tools and interfaces, supporting model conversion for TensorFlow, Caffe, MxNet, PyTorch, and providing APIs including Android NN API, RKNN cross-platform API, and TensorFlow interface.
This motherboard supports multi-screen independent display, 6/8-bit LVDS 1080P output, eDP and MIPI display interfaces, HDMI 8K output, and HDMI 4K input. It features dual Gigabit Ethernet, 2.4/5G dual-band Wi-Fi, Bluetooth 5.0, as well as M.2/SATA/USB3.0, 4G/5G module interfaces, gravity sensors, GPS, CAN, RS232/RS485, I/O expansion, I2C expansion, MIPI camera inputs, and infrared remote control, offering a rich set of connectivity options.
Equipped with this powerful octa-core AI processor, the ZYSJ-2288K is ideal for a wide range of applications including smart fire safety, smart construction, industrial quality inspection, autonomous vehicles, smart agriculture, intelligent sorting machines, AI robotics, cloud servers, smart NVRs, metaverse systems, ARM PCs, security, medical, transportation, finance, industrial control, education, and retail. Its combination of hardware platformization and software intelligence enables a seamless human-machine interaction and networked device experience on a single intelligent terminal motherboard.
Technical Specifications
| Category | Specification |
|---|---|
| Operating System | Android 12.0 / Debian / Ubuntu 20.04 / UOS / Kylin / HarmonyOS etc. |
| Processor (CPU) | Rockchip RK3588 (8nm LPP), ARM 64-bit octa-core CPU, 4×Cortex-A76 + 4×Cortex-A55, up to 2.4 GHz |
| GPU | Mali-G610 MP4 quad-core, supports OpenGLES3.2, OpenVG1.1, OpenCL2.2, 450 GFLOPS |
| NPU (AI) | Built-in Neural Processing Unit, supports IN4/IN8/INT16/FP16, 6.0 TOPS, compatible with Caffe/MxNet/TensorFlow/TF Lite/ONNX/Darknet, AI development tools included |
| Memory (RAM) | LPDDR4 4GB (options: 8GB/16GB/32GB) |
| Storage | eMMC 32GB (options: 64GB/128GB/256GB), SATA HDD expansion |
| Expansion | PCIe M.2 4 lanes, supports M.2 2242/2260 size modules |
| Networking | Dual Gigabit Ethernet, 2.4G/5G dual-band Wi-Fi (Wi-Fi6 optional), Bluetooth 5.0, 4G LTE (optional), 5G NR (optional) |
| GPS | Built-in GPS/BD module, sensitivity -162dBm, frequency 1575.42MHz, 20 channels, accuracy <10 m (optional) |
| Display Interfaces | 1×eDP 1.3 (4 lanes, 3.3V/5V), 1×LVDS (single/dual, 6/8-bit, 1080P60Hz, 3.3V/5V/12V), 1×HDMI 2.1 output 8K60Hz, 1×HDMI 2.0 input 4K60Hz, 1×MIPI output 5.7Gbps, multi-display support |
| Backlight & Audio | Onboard 12V backlight, 1×audio output (2×18W 4R), 1×headphone out, 2×microphone inputs |
| Camera | 1×MIPI camera input (up to 48MP, optional), USB camera support (optional) |
| USB Ports | 6×USB 2.0 HOST, 1×USB 2.0 CPU, 1×USB 3.0 CPU, 1×USB 3.0 OTG |
| PCIe / SIM | 1×Mini PCIe for 4G/5G LTE module, 1×SIM card slot, supports eSIM |
| IR | 1×infrared receiver, supports remote control |
| LED & Buttons | 1×power LED (red), 1×system LED (blue blinking), reset/power/upgrade buttons |
| Serial & I/O Expansion | 4×RS232, 3×RS485, 2×UART (TTL), 1×CAN, 1×I2C, 1×AD, 8×I/O expansion, 4×5/12V high-current ports |
| Fan / Light Interfaces | Supports 5V/12V fan and light control |
| Power Supply | Input AC 100–240V 50–60Hz, output DC 12V/2A, supports auto power-on or key press startup |
| Operating Environment | Operating Temp: -10 |
| Dimensions | 160×105×20 mm |
| Multimedia | Supports 8K 60fps H.265/H.264 decoding, 8K 30fps H.265/H.264 encoding, same-codec simultaneous decoding/encoding, up to 32×1080P30fps decoding and 16×1080P60fps encoding |
| System Features | Multi-language support, standard Android keyboard, optional third-party input methods, native Android with root access, customizable for product development |
| System Management | Real-time remote monitoring, auto system recovery, 7×24h unattended operation, OTA remote upgrade, Wi-Fi Display, software watchdog (hardware optional) |
| Screen Rotation | Supports 0°/90°/180°/270° manual rotation and gravity sensor auto-rotation (optional) |
