模型：

P08-RT2660TP

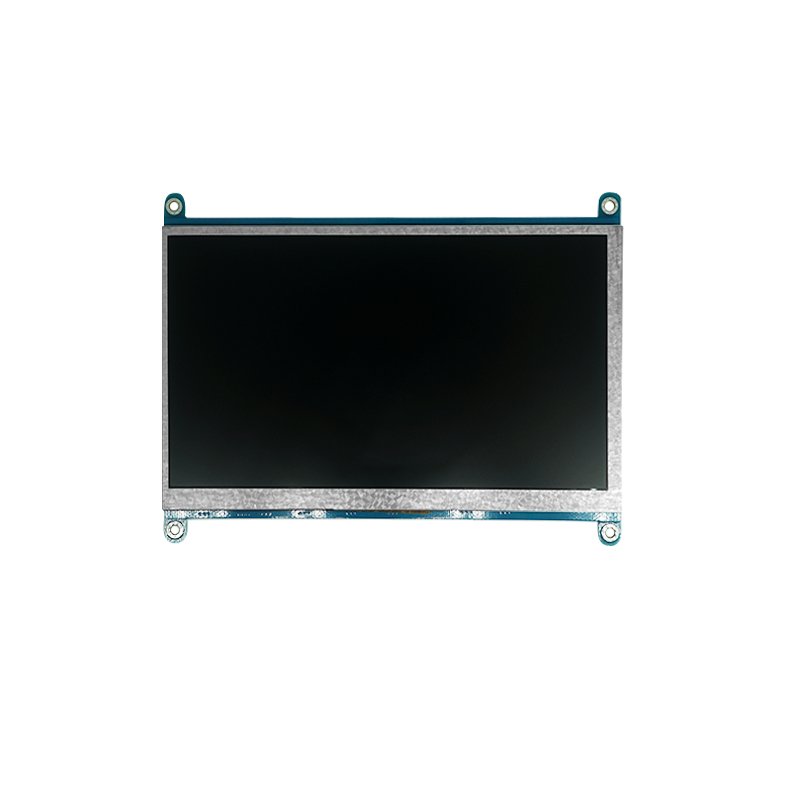

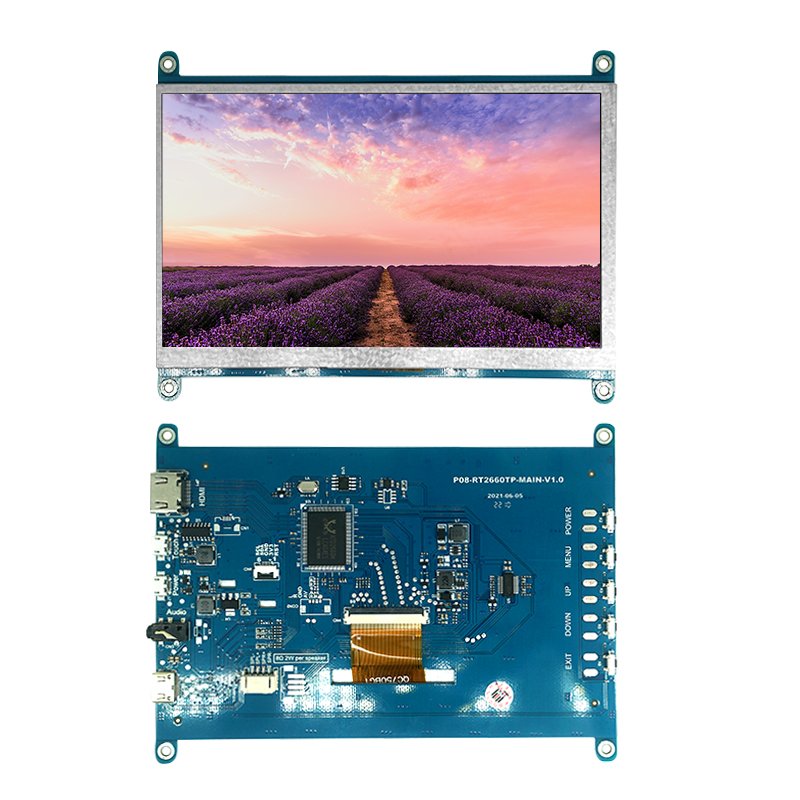

7-inch Raspberry Pi TFT LCD Module – HDMI & VGA Input, Capacitive Touch

  • Display Interface: Supports HDMI (v1.2) and VGA input signals

  • Touch Technology: Integrated capacitive touch panel (CTP)

  • Power Supply: Operates via Micro USB DC +5V

  • Multimedia Ready: Dual 2W speakers and earphone jack

  • OSD Control: Full-featured on-screen display (OSD) with optional remote control

  • Smart Shutdown: Auto power-off when no signal detected

  • Customizable: Adjustable VCOM voltage and backlight power for screen tuning

  • Interface: Standard 50-pin TTL connector compatible with ZIOSONA-08C / ATO70TN92

Ask our team for:

描述

Applications

Designed for a wide range of Raspberry Pi and embedded system projects, including:

  • Raspberry Pi touchscreen kiosks

  • Industrial control panels

  • Portable multimedia stations

  • DIY smart mirrors or dashboards

  • Educational kits and maker projects

Video Signal Input Standards
Input TypeSupported ResolutionsRefresh Rate
VGA800×480, 800×600, 1024×600, 1024×76860Hz – 75Hz
HDMIGeneric Version 1.2Auto-Detect
Environmental Specifications
Operating Conditions
Temperature Range-10℃ to +60℃
Humidity (Non-Condensing)≤ 90% RH
Storage Conditions
Temperature Range-20℃ to +70℃
Humidity (Non-Condensing)≤ 90% RH
Developer-Friendly & Fully Customizable

Whether you’re developing a compact Raspberry Pi-based GUI or an embedded HMI solution, this raspberry pi tft lcd module offers unmatched flexibility. You can adjust the VCOM voltage and backlight power to fine-tune display performance based on specific screen requirements.

With a robust design and enhanced media features, this module delivers an all-in-one solution for your next innovative display project.

Want to see more?
✅ Request a datasheet
✅ Ask about custom screen configurations
✅ Bulk pricing and OEM support available
