Rockchip RK3568 Quad-core Android LCD Controller Board – Android 11.0, RS232, RS485, USB 3.0, RJ45
High Performance: Quad-core ARM Cortex-A55 CPU (up to 2.0GHz) with integrated NPU delivering 1.0 TOPS AI performance, supporting TensorFlow, Caffe, and other mainstream frameworks.
Reliable Operation: Designed for 24/7 continuous use, ensuring long-term stability in demanding environments.
High Integration: Compact 8-layer PCB with built-in Ethernet, WiFi, HDMI, MIPI, LVDS, eDP, audio, and more – simplifying system design.
Flexible Expansion: Multiple I/O options including USB, RS232/485, CAN, I2C, and GPIO, supporting diverse peripherals and applications
Ask our team for:
standard query
customize this product
standard query
customize this product
Need a display for the designed device?
Contact our experts – we’ll help you choose the optimal solution adapted to your needs.
Description
Product Overview

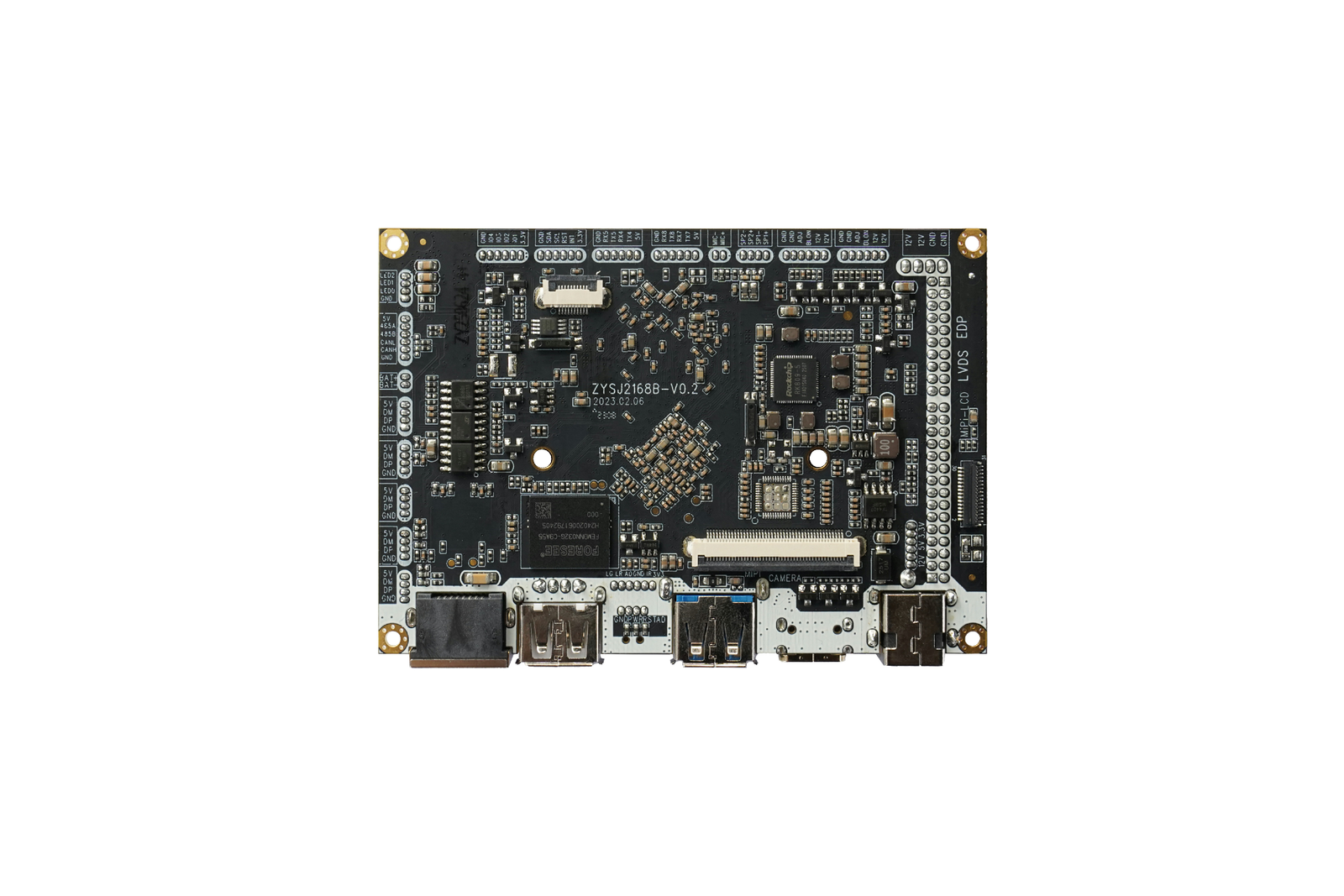

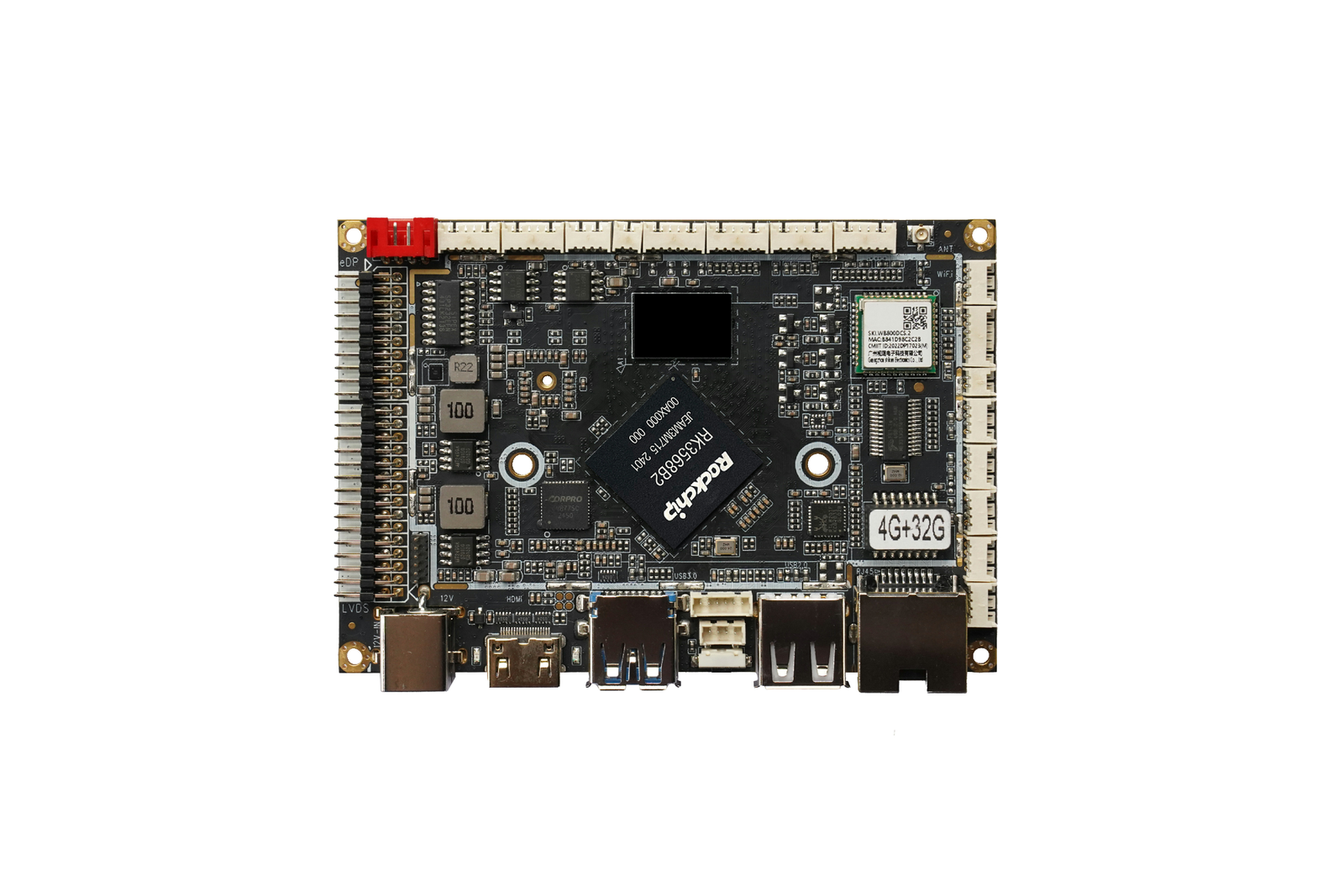

The RJY-2168B is a high-performance embedded mainboard powered by the Rockchip RK3568 AI processor with an integrated Neural Processing Unit (NPU) and Android 11.0 operating system.
Built on a quad-core ARM Cortex-A55 CPU with advanced 22nm ARMv8.2-A architecture, the board delivers clock speeds up to 2.0GHz and excellent computing efficiency. The integrated ARM G52 2EE GPU provides powerful graphics rendering, while the NPU delivers up to 1.0 TOPS AI performance, supporting multiple AI development frameworks such as TensorFlow, Caffe, MxNet, and ONNX.
The ZYSJ-2168B supports multi-display output, including LVDS (1080p), eDP, MIPI, and HDMI 4K, making it highly versatile for interactive display applications. Its extensive I/O interfaces cover Ethernet, Wi-Fi, USB, CAN, RS232, RS485, GPIO, I²C, MIPI cameras, and IR remote, ensuring seamless integration into diverse embedded solutions.
With robust performance, rich connectivity, and industrial-grade stability, the ZYSJ-2168B is ideal for demanding applications such as:
AI servers
Facial recognition & payment terminals
Security and surveillance
Medical devices
Smart transportation
Financial equipment
Industrial automation & control
Smart education platforms
Intelligent retail solutions
By combining hardware platformization with the intelligence of Android, the ZYSJ-2168B provides a flexible and reliable solution for human-machine interaction (HMI) and networked smart devices.
Technical Specifications
| Category | Specification |
|---|---|
| Operating System | Android 11.0 |
| Processor (CPU) | Rockchip RK3568, Quad-core ARM Cortex-A55, 22nm process, up to 2.0GHz |
| Graphics (GPU) | ARM G52 2EE GPU, supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, hardware 2D acceleration |
| AI Processor (NPU) | Built-in NPU, up to 1.0 TOPS @ INT8 |
| AI Frameworks | Supports TensorFlow, Caffe, MxNet, TF Lite, ONNX, Darknet; AI tools for fast model conversion |
| Memory (RAM) | LPDDR4 2GB (4GB/8GB optional, up to 8GB) |
| Storage | eMMC 16GB (32GB/64GB/128GB/256GB optional) |
| Networking | Ethernet 10/100, Wi-Fi 2.4GHz/5GHz dual-band (optional), Bluetooth V2.1+EDR/3.0/4.1/BLE (optional) |
| Display Interfaces | 1 × eDP 1.3 (up to 2560×1600@60fps), 1 × LVDS (single/dual channel, 6/8-bit, 1080p@60fps), 1 × HDMI 2.0 (4K@60Hz), 1 × MIPI DSI (up to 2560×1600@60fps), multi-display supported |
| Backlight Control | Dual 12V backlight control |
| Audio | 2 × 18W speaker output, 1 × microphone input |
| Touch Interface | I²C for resistive/capacitive touch; supports USB multi-touch (IR, capacitive, nano-film, acoustic, optical, etc.) |
| Camera Interfaces | 2 × MIPI camera inputs (up to 13MP, optional), USB camera supported |
| Expansion Interfaces | 4 × USB 2.0 HOST, 1 × USB 3.0 HOST, 1 × CPU USB 2.0, 1 × USB 2.0 OTG |
| Serial Interfaces | 2 × RS232, 2 × UART TTL, 1 × RS485 |
| I/O Interfaces | 4 × GPIO (configurable input/output), 1 × I²C, 1 × CAN bus, 1 × ADC |
| Other Features | RTC with external battery, IR receiver with remote control support, gravity sensing (auto screen rotation 0°/90°/180°/270°) |
| Indicators | 1 × Power LED (red), 1 × System LED (blue, default blinking) |
| Buttons | Reset, Power, Upgrade |
