Two TFT LCD modules can have the same active resolution and use the same interface family, yet require different controller-board settings. One panel may operate correctly while the other remains black, shifts the image, crops an edge, repeats part of the frame or starts only some of the time.

The missing information is often the complete display timing. A resolution such as 800 × 480 describes the visible pixel area. It does not describe the horizontal and vertical blanking intervals, synchronization pulse widths, signal polarity, sampling edge or required LCD pixel clock. Those parameters tell the panel when each active line and frame begins and ends.

This guide explains how pixel clock, porches, synchronization signals and Data Enable affect TFT LCD compatibility. It also provides a practical process for comparing a panel with a controller board without treating resolution or connector type as proof of compatibility.

What Is LCD Display Timing?

A display controller sends image data in a repeated sequence. It transmits one line at a time and combines the lines into a complete frame. The active image occupies only part of that sequence. The controller also produces intervals that separate one line from the next and one frame from the next.

For a parallel RGB panel, the host can expose this structure through Pixel Clock, horizontal synchronization, vertical synchronization and Data Enable signals. Other interfaces package or serialize the information differently, but the panel still needs a valid image cadence and a supported native mode.

Active image area

The active area contains the pixels that appear on the screen. An 800 × 480 panel has 800 active pixel positions in each line and 480 active lines in each frame. These values are often called Hactive and Vactive.

Active resolution is easy to compare, which is why product listings emphasize it. However, it is only one part of the mode.

Total timing area

Each line also contains a horizontal front porch, an HSYNC interval and a horizontal back porch. Each frame contains corresponding vertical intervals. These non-active periods form the horizontal and vertical blanking regions.

The controller must therefore generate more pixel periods than the number of visible pixels. The complete line length is the horizontal total. The complete frame height is the vertical total.

Why the panel needs timing boundaries

The panel driver must know which transmitted values belong to the visible image. It also needs a consistent boundary between lines and frames. Depending on the panel mode, it uses HSYNC, VSYNC, Data Enable or a combination of these signals.

Incorrect boundaries can make the driver start a line too early, accept inactive data as pixels or lose frame alignment. A display can therefore receive valid color data but place it in the wrong part of the image.

Main TFT LCD Timing Parameters

Parameter	Meaning	Why it matters
Hactive	Visible pixels in each line	Sets the active image width
HFP	Horizontal front porch	Separates active data from the horizontal sync interval
HSYNC	Horizontal sync pulse width	Marks or supports the line boundary
HBP	Horizontal back porch	Separates the sync interval from the next active line
Vactive	Visible lines in each frame	Sets the active image height
VFP	Vertical front porch	Separates the active frame from vertical sync
VSYNC	Vertical sync pulse width	Marks or supports the frame boundary
VBP	Vertical back porch	Separates vertical sync from the next active frame
DE	Data Enable	Identifies periods that contain active pixels
PCLK	Pixel Clock	Controls the rate at which pixel periods advance

Panel datasheets do not always use the same labels. They may describe porches as margins or list only total blanking. Follow the definitions in the exact panel datasheet.

What Is the LCD Pixel Clock?

The LCD pixel clock sets the rate of the pixel periods in a video timing stream. For a typical parallel RGB interface, the controller presents pixel data and the panel samples that data on the specified clock edge. One clock period normally advances the transfer by one pixel position, including positions inside blanking intervals.

The required clock depends on the horizontal total, vertical total and refresh rate. It does not depend on active resolution alone.

Pixel clock is not refresh rate

Refresh rate states how many complete frames occur each second. Pixel clock states how many pixel periods occur each second. A 60 Hz frame rate does not imply a 60 MHz pixel clock. The clock value also depends on how many total periods make up each frame.

The basic relationships are:

Horizontal Total = Hactive + HFP + HSYNC + HBP

Vertical Total = Vactive + VFP + VSYNC + VBP

Pixel Clock = Horizontal Total × Vertical Total × Refresh Rate

This formula is a useful check, but the panel datasheet remains authoritative. The driver IC may accept only a stated clock range or a limited set of timing combinations.

A Practical Pixel Clock Calculation

Consider an illustrative 800 × 480 timing. The following values are examples for calculation only. They are not a specification for an RJY product or a universal 800 × 480 mode.

Item	Illustrative value
Hactive	800 pixel periods
Combined horizontal blanking	256 pixel periods
Horizontal total	1,056 pixel periods
Vactive	480 lines
Combined vertical blanking	45 lines
Vertical total	525 lines
Refresh rate	60 frames per second

Pixel Clock = 1,056 × 525 × 60
            = 33,264,000 Hz
            ≈ 33.264 MHz

If an engineer calculates only the active pixels, the result is:

800 × 480 × 60 = 23.04 MHz

That result omits every blanking period. In this example, it would understate the required clock by more than 10 MHz. This difference explains why resolution and frame rate alone cannot define a panel timing.

Typical, minimum and maximum values

Many datasheets provide typical, minimum and maximum values. Values inside each individual range do not always create a valid combined mode. The total clock must also stay within its supported range.

Start from the recommended typical mode. Change a porch, clock or refresh rate only when the panel documentation and host design allow the change, then verify the result on the complete system.

Front Porch, Back Porch and Sync Width

A porch is an inactive interval beside the active video region. The terms came from raster-display timing, but they still describe the blanking structure used by modern digital panel interfaces.

Horizontal timing sequence

A line commonly contains active pixel data, a horizontal front porch, an HSYNC pulse and a horizontal back porch. The exact order shown in a datasheet can depend on the reference point used in the diagram. What matters is that the host reproduces the required interval sizes and polarity.

The front porch separates the end of active data from the sync event. The back porch separates that event from the start of the next active line. The HSYNC width defines the duration of the synchronization pulse when the selected mode uses it.

Vertical timing sequence

Vertical timing follows the same concept, but its units are lines rather than pixel clocks. The sequence includes active lines, a vertical front porch, a VSYNC interval and a vertical back porch.

Why porch values are not freely interchangeable

Two modes can have the same horizontal total but assign different values to HFP, HSYNC and HBP. They do not necessarily behave the same. The panel may use a specific edge or interval to reset an internal line counter or prepare the next active region.

Do not redistribute porch values merely to preserve the total. Confirm the permitted values from the panel timing table. If the datasheet lists only total blanking, request the detailed timing or a validated initialization reference from the panel supplier.

HSYNC, VSYNC and Data Enable

HSYNC identifies horizontal timing boundaries. VSYNC identifies vertical timing boundaries. Data Enable indicates when the data bus contains active image pixels. Different panels use these signals in different modes.

SYNC mode

In a synchronization-based mode, the panel uses HSYNC and VSYNC to identify line and frame timing. The controller must generate the pulse widths, porches and active periods that the panel expects.

SYNC-DE mode

In SYNC-DE mode, the panel receives synchronization signals and Data Enable. DE qualifies the active image region while HSYNC and VSYNC preserve line and frame structure.

DE-only mode

Some panels support a mode in which Data Enable defines the active region and the panel does not use external HSYNC and VSYNC inputs. This does not remove the need for correct totals and blanking. The width of DE, the gap between active lines and the gap between active frames still form a timing pattern.

A host controller can output several signals at once, but that does not prove that every connected panel can use the same configuration. Select the mode documented for the panel and connect only the signals required by that design.

Signal Polarity and Pixel Sampling Edge

Frequency and pulse width are not enough. A panel also expects each control signal to be active at a defined logic level. HSYNC, VSYNC and DE can be active high or active low. The panel may sample pixel data on the rising or falling edge of Pixel Clock.

Correct frequency, wrong polarity

If the host uses the wrong sync polarity, the panel can interpret inactive time as the sync pulse or fail to recognize the intended event. Incorrect DE polarity can mark blanking as active data and active data as blanking. The result may be a black display, an unstable frame, a shifted image or an image that appears only under some conditions.

Setup and hold time

The data bus must remain stable for a specified period before and after the sampling edge. These intervals are the setup and hold times. Long PCB routes, unsuitable level shifting, connector loss, clock skew and incorrect output-edge settings can reduce the available margin.

For higher-speed designs, a correct average clock frequency does not prove adequate signal quality. Engineers must also review waveform integrity and timing at the panel input.

Why Same-Resolution LCDs Can Require Different Timing

Resolution defines the active pixel matrix. It does not standardize the electronics around that matrix.

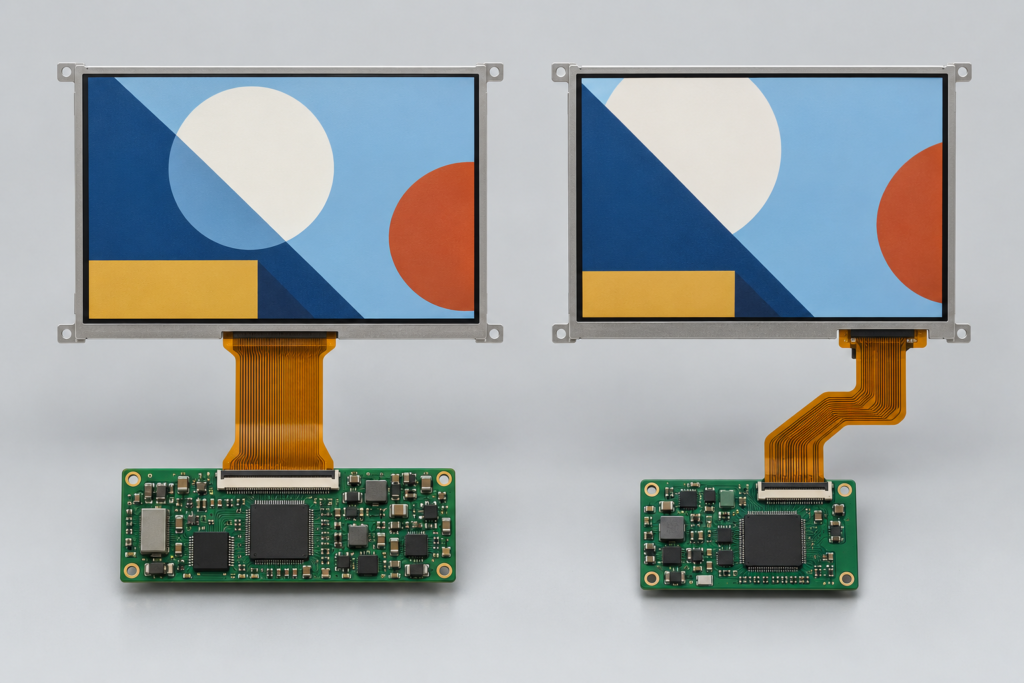

Two same-resolution TFT LCD modules showing different timing behavior

Different driver ICs

Two modules can use different timing-controller or source-driver designs. Each driver can have its own accepted blanking range, polarity, sampling edge and initialization sequence. A replacement panel may therefore need a new controller-board configuration even when the active pixels match.

Different panel architectures

Gate-driver integration, source-driver arrangement and internal timing generation can change the required input mode. An integrated timing controller can accept a different range from a module that depends more directly on external timing.

Different refresh-rate and clock ranges

A host may generate a common 60 Hz mode, but the panel datasheet can specify another typical rate or a limited allowable range. Changing the blanking while retaining 60 Hz also changes the required Pixel Clock.

Different synchronization modes

One RGB panel may use SYNC-DE mode while another uses DE-only mode. The FPC can carry similar data lines, yet the controller and pin definition still need different treatment.

Other compatibility layers

Even identical display timing does not prove full compatibility. Check the connector and pin definition, power rails, reset sequence, backlight circuit, touch interface, image orientation, driver support and mechanical fit. Timing is one system layer, not a substitute for the rest of the review.

How the Interface Transports Timing

Parallel RGB

Parallel RGB makes timing easy to observe. Separate conductors commonly carry red, green and blue data together with Pixel Clock, DE and synchronization signals. The display controller produces the raster timing directly.

This visibility does not make the interface universal. Data width, color ordering, voltage, polarity, sampling edge and timing must still match.

LVDS

An LVDS transmitter serializes pixel and control information into differential pairs. The panel receiver reconstructs the data. The system still needs a valid native mode, correct LVDS mapping, suitable channel count, supported bit depth and correct clock relationship.

Pixel Clock is related to the transported pixel rate, but it is not the same value as the serial bit rate on an LVDS pair. Serialization ratio and link architecture affect the physical data rate.

MIPI DSI video mode

MIPI DSI video mode transports a video stream in packets over one or more high-speed data lanes. Active video and blanking requirements affect the data that must cross the link. Lane count, pixel format, operating mode, overhead and D-PHY settings determine whether the host has enough capacity.

The familiar RGB timing values can still appear in the host configuration, but the DSI lane clock is not simply equal to Pixel Clock. Use the SoC, bridge and panel documentation to calculate and validate the link.

MIPI DSI command mode

Command-mode panels can receive updates through display commands and may use internal frame memory. Their transfer behavior differs from a continuous parallel RGB stream. Do not apply a video-mode calculation without confirming how the selected panel and host implement command mode.

eDP and HDMI paths

eDP carries standardized packetized display data, while HDMI often appears as an input to a controller board rather than as the native interface of a bare LCD module. A board must still output a panel-supported mode on the internal display side.

An HDMI source showing the correct resolution does not prove that an HDMI-to-MIPI or HDMI-to-LVDS board can drive a given panel. The active conversion depends on the bridge, output interface, panel timing, firmware and physical connection.

How Blanking Affects Bandwidth

Larger blanking intervals increase the horizontal or vertical total. At the same refresh rate, this raises Pixel Clock. More pixel periods per second also increase the rate at which the display pipeline must move data.

The impact extends beyond the panel connector:

The display controller must generate the required clock.
A bridge IC must accept and produce the required mode.
The physical link must provide sufficient throughput.
The framebuffer path must deliver active pixel data on time.
Memory bandwidth must support the pixel format, layers and refresh rate.

A simple framebuffer bandwidth estimate often starts with active pixels, bytes per pixel and frames per second. Real system demand can be higher because of graphics layers, memory bursts, alignment, scaling and other access. Link bandwidth calculations also include encoding or packet overhead that is specific to the interface.

Do not treat one Pixel Clock formula as a complete system bandwidth model. Use it to establish the raster rate, then check each controller, bridge, memory and physical-link limit.

Symptoms of Incorrect LCD Timing

Symptom	Timing-related checks	Other checks
Black screen	Pixel Clock, DE, sync mode, polarity	Power, reset, initialization, data path, backlight
White screen with backlight	Valid active video and timing	Panel initialization, pinout, interface and controller support
Horizontal image shift	HFP, HBP, HSYNC and active width	Data mapping and cropping settings
Vertical image shift	VFP, VBP, VSYNC and active height	Rotation, scaling and framebuffer configuration
Cropped edge	Active area and total timing	Scaling, OSD or source-mode configuration
Repeated or wrapped region	Line or frame boundary values	Framebuffer stride and bridge configuration
Flicker	Clock stability, refresh rate, sync and DE	Power noise, backlight PWM, cable and signal integrity
Intermittent startup	Timing enable and clock startup	Power sequence, reset, firmware and temperature

These symptoms are clues, not proof. For example, flicker can come from an unstable Pixel Clock, but it can also come from the LED driver or a poor connector. Diagnose the display as a system.

How to Read an LCD Timing Table

Confirm the exact panel and document revision. A model suffix can identify another FPC, driver IC or timing configuration.
Find the interface mode. Identify RGB, LVDS, MIPI DSI or another path and the supported operating mode.
Record Hactive and Vactive. Do not infer them only from a marketing resolution.
Record each porch and sync width. Note whether the values are expressed in clocks or lines.
Calculate horizontal and vertical totals. Compare your results with any totals stated in the document.
Check Pixel Clock. Record typical, minimum and maximum values where provided.
Check polarity. Verify HSYNC, VSYNC, DE and clock-edge definitions.
Check setup and hold time. Compare these requirements with the host and board design.
Read the timing notes. A footnote can define dependencies that the main table does not show.
Keep the recommended mode together. Do not mix typical values from one mode with limits from another.

How to Compare a Panel With a Controller Board

1. Identify the exact hardware

Record the LCD model and revision, driver IC when available, controller-board model, bridge IC, connector and PCB revision. Compatibility cannot be confirmed from screen size and resolution alone.

2. Compare the complete panel mode

Create a table for active resolution, total resolution, porches, sync widths, refresh rate, Pixel Clock, polarity and sampling edge. Compare it with the modes that the controller or firmware can generate.

3. Check interface-specific requirements

For LVDS, include mapping, channel count and bit depth. For MIPI DSI, include lane count, pixel format, video or command mode, lane-rate limits and initialization commands. For RGB, include data width and voltage.

4. Check the clock source and divider

A processor may calculate its display clock from a parent clock and integer or fractional divider. The exact requested value may not be available. Confirm the actual generated clock and ensure that the resulting frame rate remains inside the panel limits.

5. Check firmware and operating-system support

The board support package, device tree, bootloader or controller firmware must describe the correct mode. A hardware-capable board can still fail if the software loads a default timing for another panel.

6. Check power, reset and backlight separately

Correct video timing cannot repair a wrong supply, reset pulse, initialization sequence or LED-driver mismatch. Keep these checks in the same validation plan, but do not confuse them with raster timing.

7. Validate repeated transitions

Test cold power-up, warm restart, signal reconnect, sleep, wake and controlled power-down. Observe whether the clock and active video start only after the panel is ready and whether the backlight exposes an invalid frame.

Measuring Timing on Real Hardware

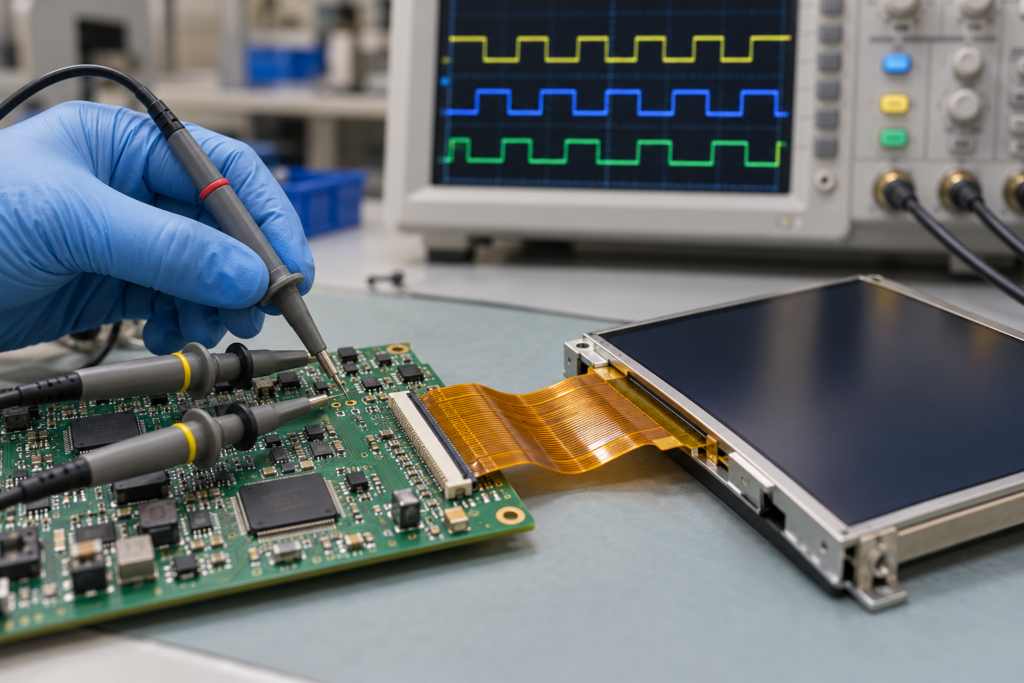

Oscilloscope probes validating signals on a TFT LCD controller board

Oscilloscope checks

On accessible parallel signals, an oscilloscope can measure Pixel Clock frequency, HSYNC rate, VSYNC rate, DE width, polarity and startup order. From the measured HSYNC and VSYNC rates, engineers can check whether the actual line and frame cadence agrees with the intended mode.

Use probes and bandwidth appropriate for the signal. Poor probing can distort an edge or add enough loading to change behavior. Differential high-speed links require suitable differential measurement equipment and methods.

Logic-analyzer checks

A logic analyzer can help with lower-speed control signals, GPIO sequencing, SPI initialization or I²C configuration. It is not automatically suitable for capturing every MIPI, LVDS or eDP physical-layer signal. Use protocol-specific equipment when the link speed and signaling method require it.

Measurement does not replace the datasheet

A measurement shows what the board generates, not what the panel accepts. Compare it with the approved specification.

Firmware, Device Tree and Board Configuration

A typical embedded display configuration can include:

Active width and height
Horizontal and vertical porches
HSYNC and VSYNC widths
Pixel Clock or clock-divider settings
HSYNC, VSYNC, DE and clock polarity
Pixel format and color order
LVDS mapping or MIPI lane settings
Reset and enable GPIO behavior
Panel initialization commands
Backlight enable and dimming control

Linux display drivers and device trees often store mode parameters as separate clock, active-area, margin, sync-length and polarity values. An Android-based board can use the same kernel-level configuration concepts even though the user interface runs on Android.

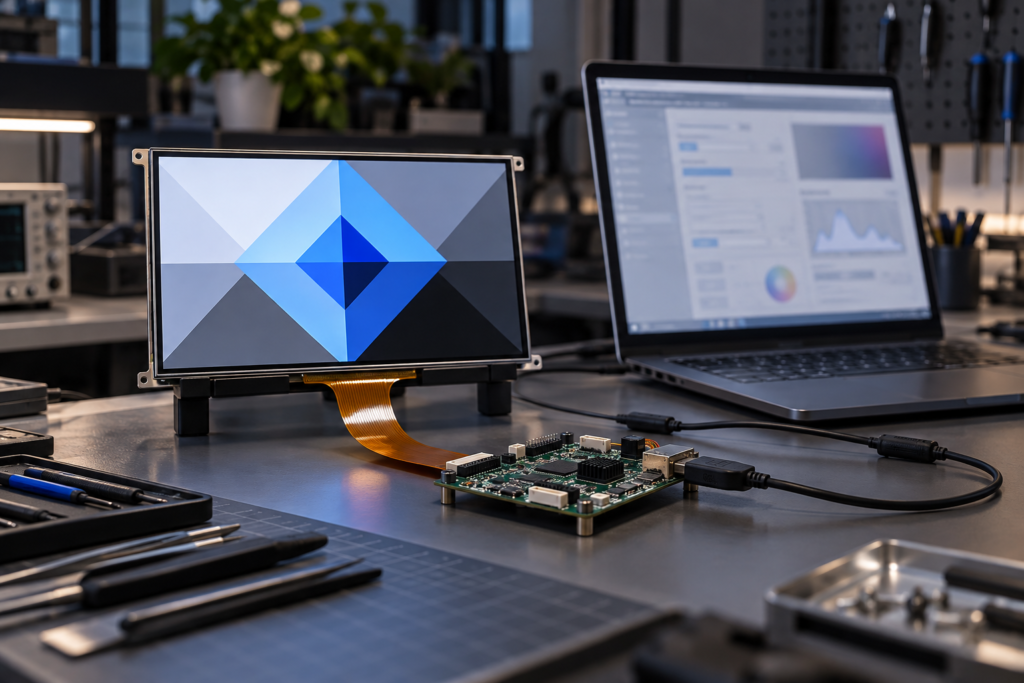

Firmware configuration test for a TFT LCD and controller board

Firmware adaptation is therefore a real part of panel matching. It should be planned with the hardware review rather than treated as a final software setting after the board is complete.

What RJY Display Can Review

RJY Display can review display timing as part of a project-specific LCD and controller-board configuration. Depending on the selected panel and host platform, the scope can include:

Native resolution and timing-table comparison
Pixel Clock, porch, sync and polarity review
RGB, LVDS, MIPI, eDP and related interface coordination
Controller-board and bridge-path evaluation
Project-dependent firmware adaptation
FPC, connector and pin-definition coordination
Backlight, touchscreen and power review
Display-related mechanical integration

This is a compatibility process, not a universal board claim. The result depends on the exact LCD, controller hardware, firmware, operating system and application environment. An active HDMI-to-MIPI or HDMI-to-LVDS path must be designed for the selected panel; it is not a passive cable conversion.

Information Needed for a Timing Compatibility Review

Send the following information where available:

Complete LCD model and revision
Panel datasheet and timing table
Native resolution and interface
Driver IC or timing-controller information
Pin definition and connector drawing
Pixel Clock range
Horizontal and vertical porch values
HSYNC and VSYNC widths and polarity
Controller board, processor and bridge IC
Operating system, firmware or BSP information
Backlight and touchscreen requirements
Photographs or video of the current failure
Sample quantity, expected volume and project schedule

If the current system already works with another panel, include that panel’s datasheet and approved configuration. A side-by-side comparison often shows whether the difference lies in timing, pinout, interface mode, power or software.

Use Complete Timing, Not Resolution Alone

LCD pixel clock connects resolution, blanking and refresh rate, but it is not the only compatibility parameter. Engineers must also preserve the required porches, sync widths, Data Enable behavior, polarity and sampling edge. The chosen interface and firmware then need to carry or generate that mode correctly.

This is why two same-resolution panels can produce different results on the same board. Treat the panel timing table as part of the hardware specification, not as an optional software detail.

For related engineering guidance, review LCD display interfaces, compare MIPI and LVDS for industrial LCDs, or read the LVDS data-mapping guide. If you are matching a panel to a host platform, see how to match a TFT LCD with an Android board. For a project review, submit your LCD timing and controller-board information.

Frequently Asked Questions

What is the pixel clock of an LCD?

Pixel Clock is the rate at which pixel periods advance in a display timing stream. It includes active pixels and the pixel periods used by horizontal and vertical blanking.

How do I calculate LCD pixel clock?

Add the active width, horizontal porches and HSYNC width to obtain the horizontal total. Add the active height, vertical porches and VSYNC width to obtain the vertical total. Multiply both totals by the refresh rate. Then compare the result with the panel’s specified clock range.

Is pixel clock the same as refresh rate?

No. Refresh rate is the number of complete frames per second. Pixel Clock is the number of pixel periods per second. The totals for each line and frame connect the two values.

Why do two LCDs with the same resolution use different timings?

They can use different driver ICs, blanking intervals, synchronization modes, clock ranges, signal polarities and initialization requirements. Resolution describes only the active pixel matrix.

Can I change porch values if the total timing stays the same?

Do not assume so. A panel can require specific front porch, sync width and back porch ranges even when the total is unchanged. Use the exact datasheet limits and validate the complete system.

What happens when HSYNC or VSYNC polarity is wrong?

The panel may fail to recognize line or frame boundaries. Possible results include a black screen, image shift, unstable display or intermittent operation. These symptoms can also have other causes.

Does an LVDS or MIPI display still need timing configuration?

Yes. These interfaces transport display data differently from parallel RGB, but the host, bridge and panel still need a supported native mode. Link mapping, lane configuration, throughput and firmware must also match.

Can RJY match a controller board using only the LCD resolution?

No. A review also needs the LCD model, interface, pin definition, timing, driver IC when available, power, backlight, touch, firmware, operating system and application requirements.

Facing a bottleneck in your Embedded Display Project?
